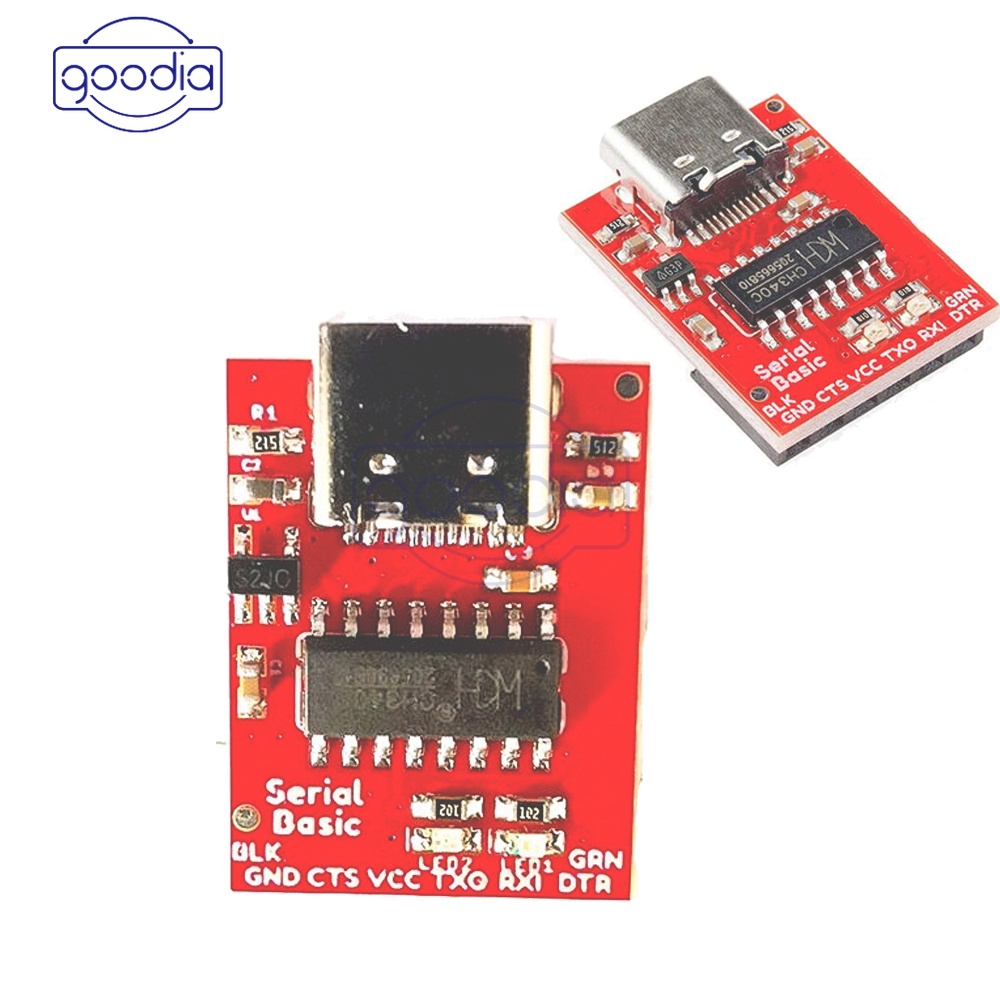

USB TYPE-C to TTL CH340C DC 5V / 3.3V Serial Port Module Development Board

Detail USB TYPE-C to TTL CH340C DC 5V / 3.3V Serial Port Module Development Board

Product introduction:

Product manual:

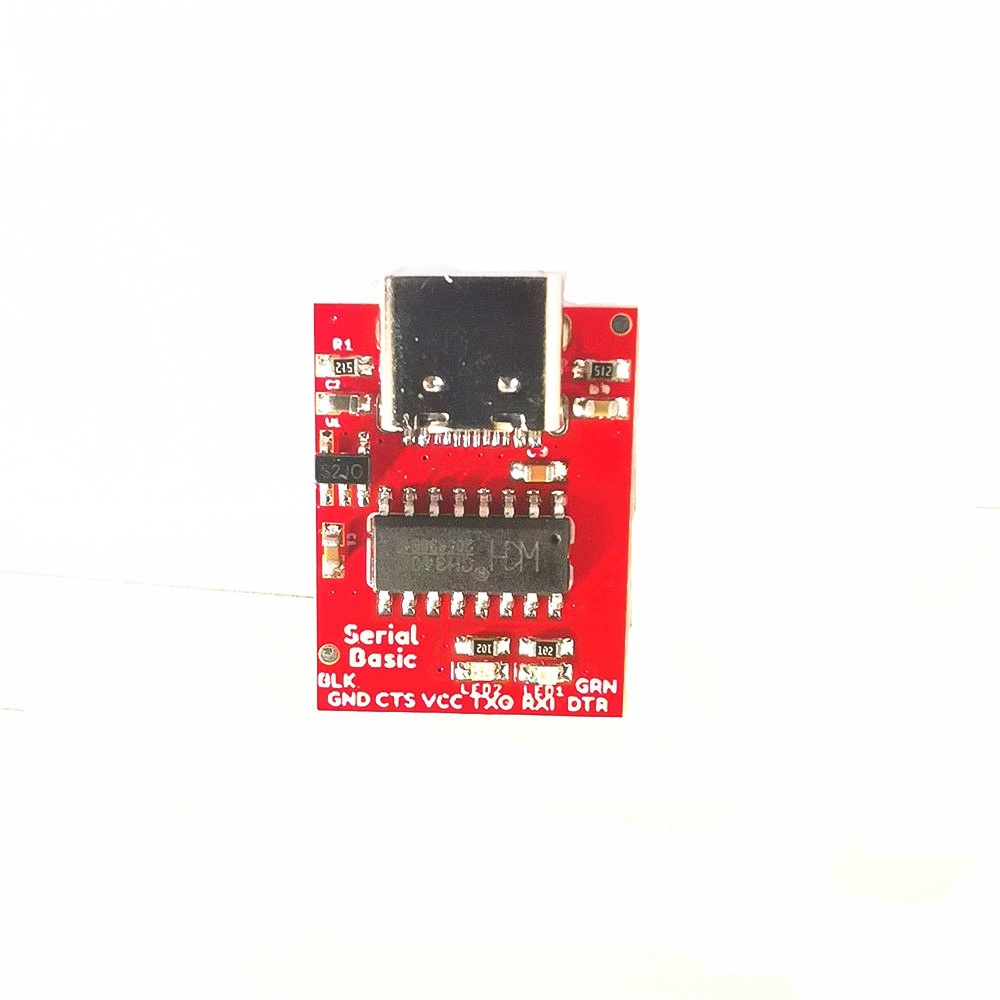

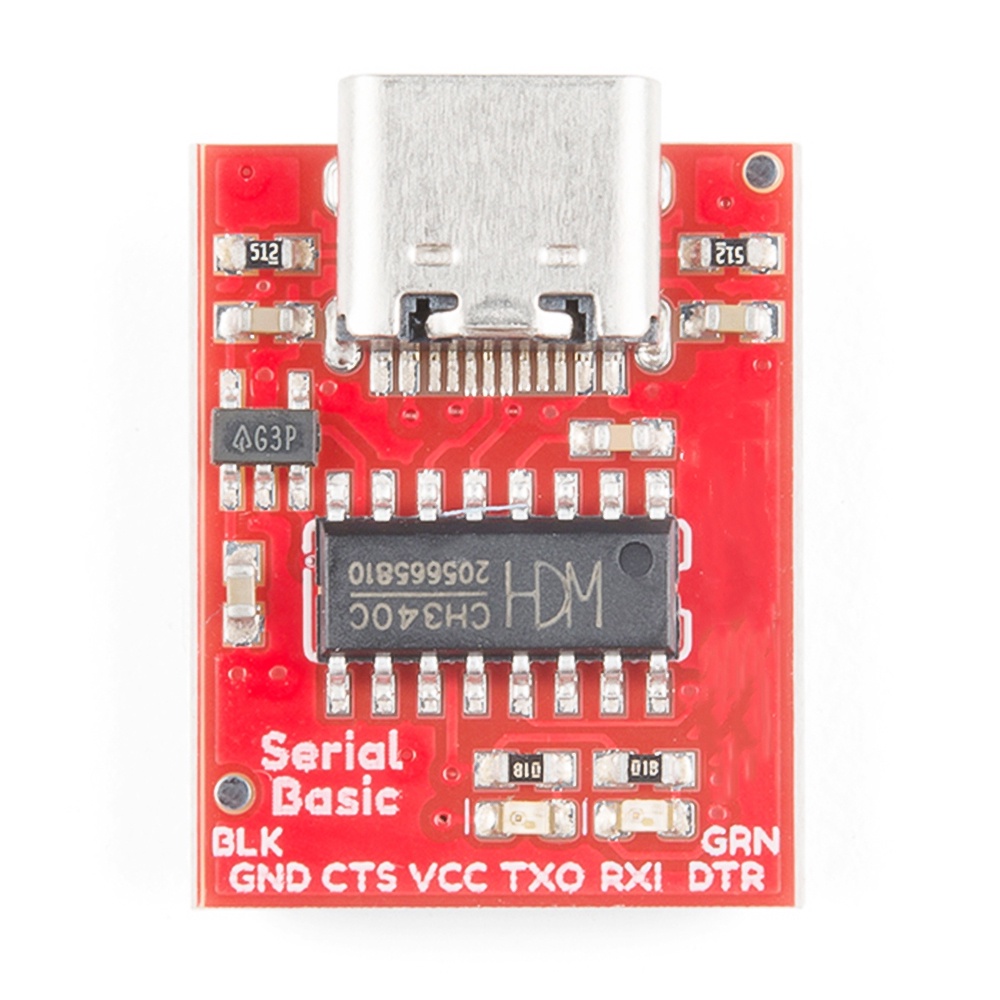

This product is a Type-C to TTL serial port module, using CH340 USB bus conversion chip, with 2 indicator lights on the board, which are communication indicators. Because there is no serial port on our current computer, we generally use a USB to serial port module, with only one purpose, to map the computer's USB port to a serial port.



Product parameters:

Working voltage: 5V or 3.3V

Default working voltage: 5V

Working temperature: -40°C~85°C

Baud rate: 50~2Mhz

Operating system: Windows xp, 7, 8, 10

ISP and communication:

Support STC MCU download program

Support STM8 download program with boothloader

Support Arduino download program with boothloader

Support STM32 serial port download program

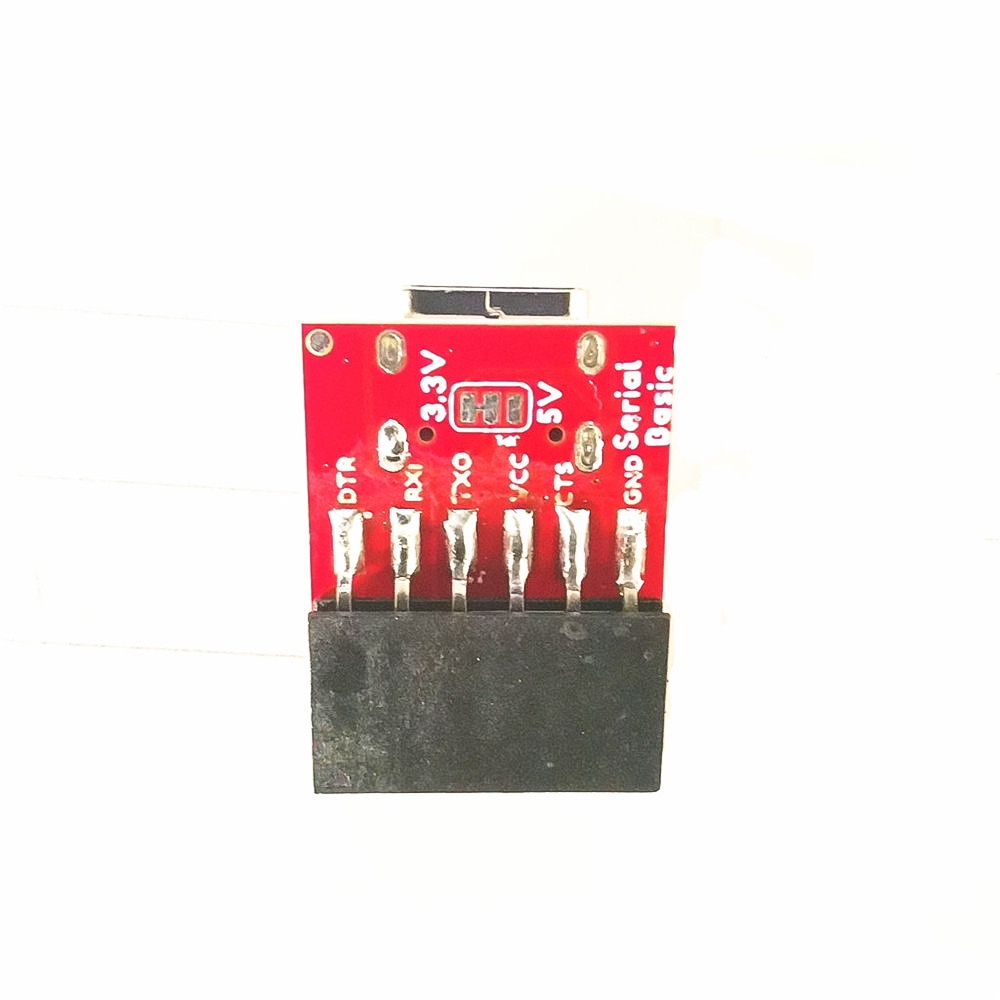

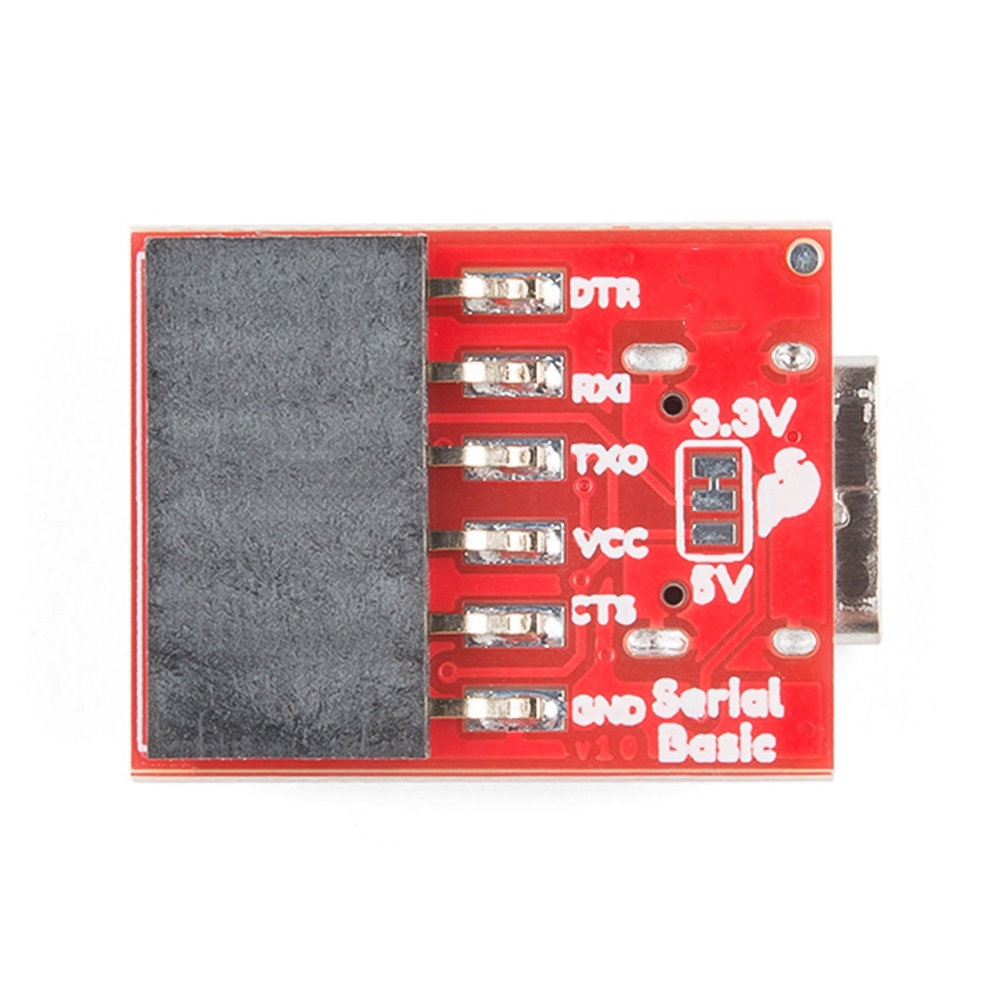

Pin description:

V+VCC power supply positive input and output: when the working voltage is 5V, it is the 5V power output, when the working voltage is 3.3V, it is connected to the external 3.3V power supply

V- GND Power negative pole: 0V

TX data sending end: connect to MCU or target board data receiving end

RX data receiving end: connect to MCU or target board data sending end



Package Included:

1x CH340C module
