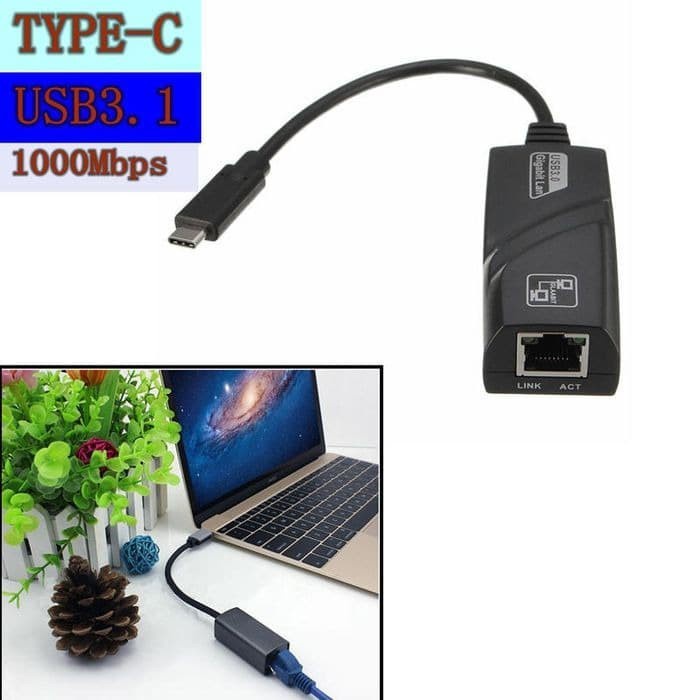

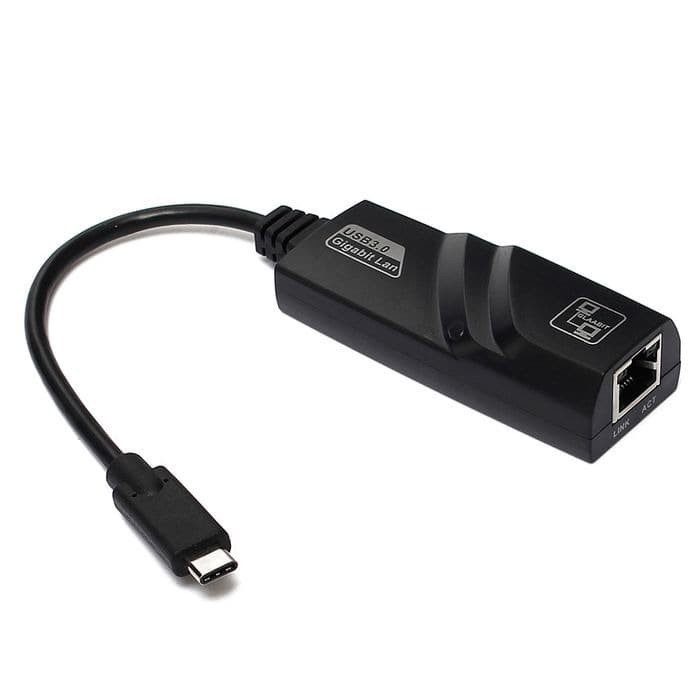

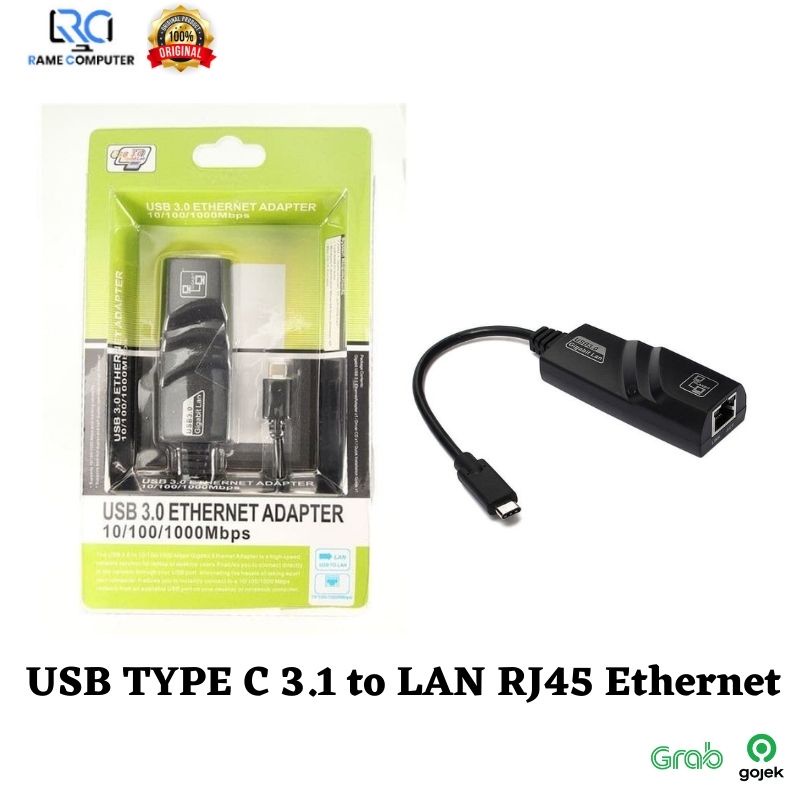

USB TYPE C 3.1 to LAN RJ45 Ethernet 100/1000 Mbps Gigabit

Detail USB TYPE C 3.1 to LAN RJ45 Ethernet 100/1000 Mbps Gigabit

Deskripsi Usb type c 3.1 to LAN RJ45 Ethernet 100/1000 Mbps Adapter Gigabit

Specifications:

1•Network standard: IEEE 802.3,802.3u,and 802.3ab
2.LED indicators: Link 1000Mbps
3.Power: Integrates on chip 3.3V to 2.5V voltage regulator and requires only single power supply:3.3V
4•Network interface: Female Rj45 jack supporting Auto MDIX
5.Full-duplex: 10BaseT,100BaseTx,1000BaseT
6.Half-duplex: 10BaseT,100BaseTx
7.RAM: Embedded 20KB SRAM for RX packet buffering and 20KB SRAM for TX packet buffering
8.Operation Temperature: 0-70
9.Operation system support: Windows 10/8/ 7/ Vista, XP,2003/2000, for MAC OS 10.6 or later
11.Dimension: 83x31x21mm
12.Cable length: 15cm

Features:

1•Support 10/100/1000 Mbps auto-sensing capability
2.USB 3.1 interface,two side plug both the upward and downward sides are the same
3.USB 3.0 transmission speed can highly reach to 5Gb/s
4•Support Auto MDIX(straight and for cross network cable auto-detection)
5•Support USB full and high speed modes with bus power capability
6.IEEE 802.3,802.3u,and 802.3ab(10Base-T,100Base-TX,and 1000Base-T)compatible
7.Supports both full-duplex and half-duplex operation in Fast Ethernet
8.Supports Jumbo packet of up to 9KB
9.Supports suspend mode and remote wakeup via link-up and magic packet
10.Plug and Play.
11.Compatible With: for Nokia N1 tablet, for Chromebook Pixel 2015,for MSI Gaming Notebooks,
12" for Apple for MacBook,and other devices with a USB 3.1 Type C port

Kindly reminded:
This adapter is with USB 3.1 interface,but the data transmission speed is equal to USB 3.0,and which is ten times faster than USB 2.0.
