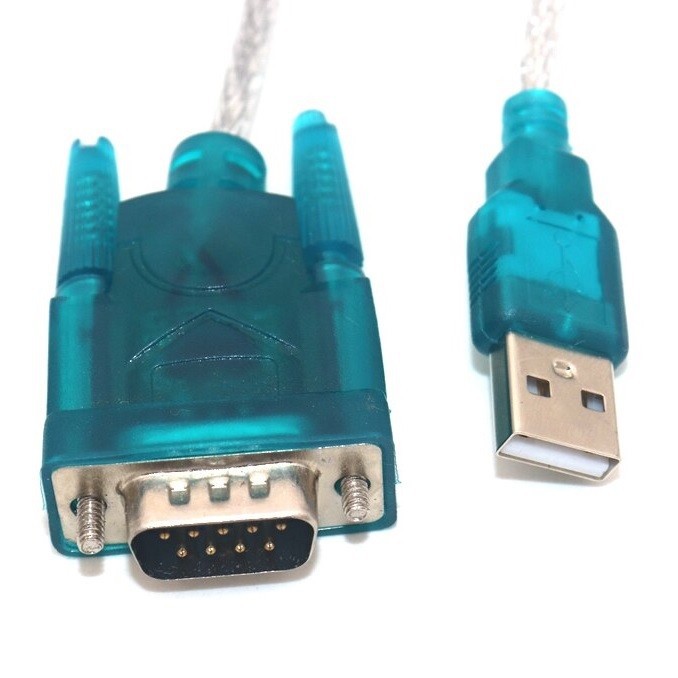

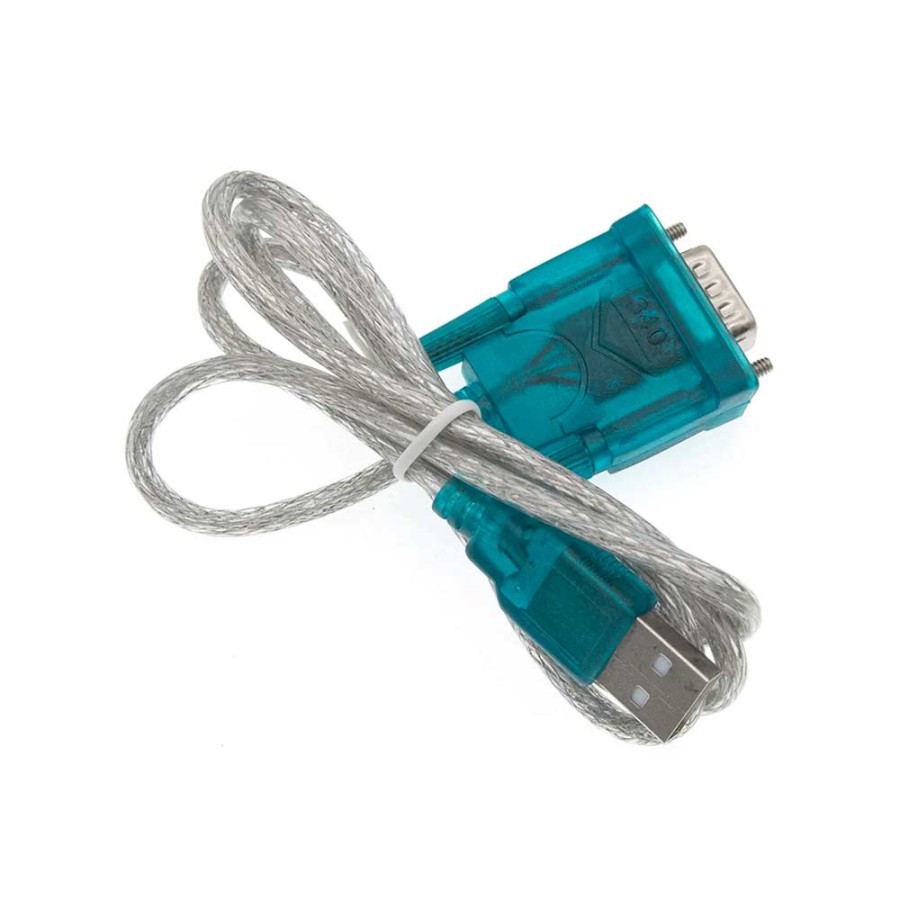

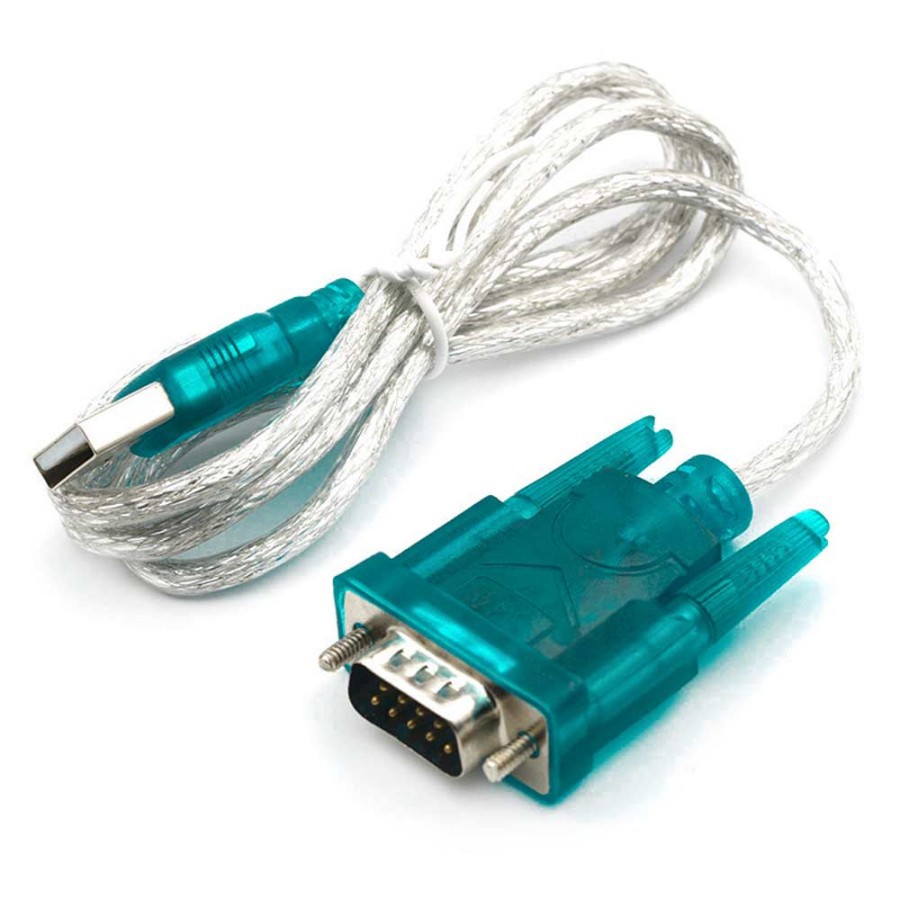

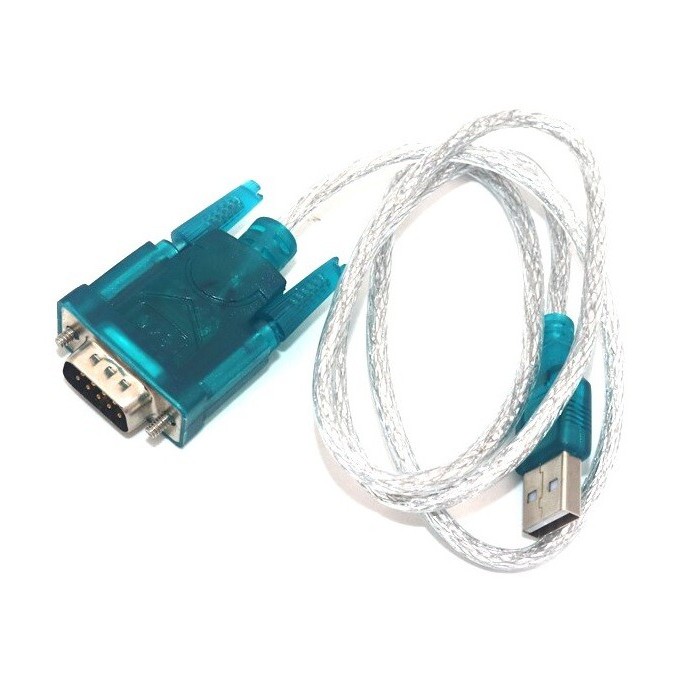

USB TO SERIAL RS-232 DB9 male Converter RS232 Data COM Logger Win 10

Detail USB TO SERIAL RS-232 DB9 male Converter RS232 Data COM Logger Win 10

JUAL : USB TO SERIAL RS-232 DB9 male Converter RS232 Data COM Logger Win 10

With the advantage of USB port, users have the capability to utilize the peripheral with serial port interface in an easy to use environment such as plug and play & hot swap function. This adapter is designed for ideal connections to Cellular Phone, Digital Camera, Modems or ISDN terminal adapter with over 120k bps data transfer rate.

Feature and spec :

Model : 340
Chipset : CH340
Type : USB to DB9 m (RS-232)
Panjang kabel : 80 cm
USB 2.0 Compliant
Over 1 Mbps data transfer rate
Bus Powered
Connects serial devices via USB-port to a PC
Supports remote wake-up and power management


Supports :

Windows CE (v4.2 or higher) / 98 / ME/ XP / VISTA / win 7 / Win 8 / 8.1 /10

Win server 2003 / win server 2008
Linux (2.4 or higher )

Mac OS version 10.8

Isi Paket :

1 x USB to Serial DB9
1 x CD-Driver R340
Tanpa converter konektor DB9 to DB25

================

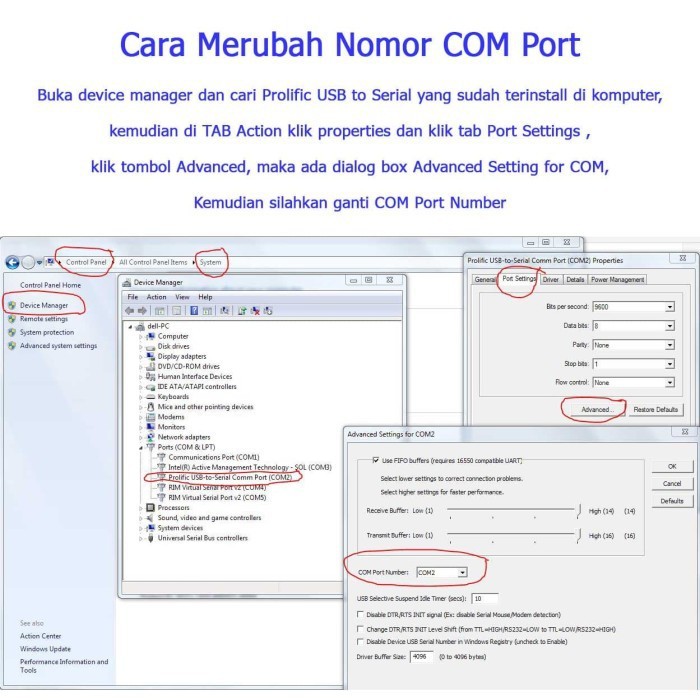

Cara ganti COM port :

Ada kala nya kabel USB Serial di butuhkan untuk sebuah aplikasi yang hanya support COM1 - COM4 saja , namun sayangnya yang terinstall di kompi malah dapat nya nomor COM5 atau di atas nya. Bila terjadi demikian maka Anda harus mengubah nomor COM port menjadi nomor COM port yang di kehendaki , Cara nya :

Buka device manager dan cari USB - Serial CH-340 (COMx) yang sudah terinstall di komputer,
kemudian di TAB Action klik properties dan klik tab Port Settings ,
klik tombol Advanced, maka ada dialog box Advanced Setting for COM,
Kemudian silahkan ganti COM Port Number, semoga bermanfaat
(bisa liat di gambar produk yang terakhir).

Gambar produk
