USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398

Komputer & Aksesoris > Komponen Network > Wireless Adapter & Kartu Network > USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
Tersedia
Periksa harganya...
Lihat tempat menjual
Toko:Toko Optima KiranaLihat semua produk Komputer & Aksesoris oleh Toko Optima Kirana
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur
DeskripsiSpesifikasi

Detail USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398

Jual : USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398

Converter USB to RS232 serial DB9 male merk Z-TEK + panjang kabel 80 cm (USB extension m-f)

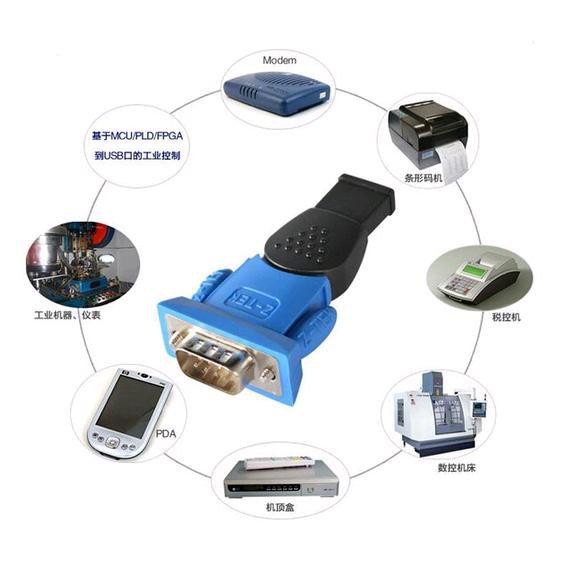

With the advantage of USB port, users have the capability to utilize the peripheral with serial port interface in an easy to use environment such as plug and play & hot swap function. This adapter is designed for ideal connections to Cellular Phone, Digital Camera, Modems or ISDN terminal adapter with over 120k bps data transfer rate.

Terdapat Varian :
Chipset : Prolific (PL-2303) PL2303 RA chip versions
Chipset : Z-TEK

Feature and spec :

Brand : Z-TEK
Model : ZE398
Type : USB to DB9 m (RS-232)
USB 1.1 Specification
1Mbps data transfer
Bus Powered
Connects serial devices via USB-port to a PC
Supports remote wake-up and power management


Supports :

Windows CE (v4.2 or higher) / 98 / ME/ XP / VISTA / win 7 / Win 8 / 8.1 /10
Download driver win 10 disini : http:// www. prolific. com. tw /US/ShowProduct.aspx?p_id=225&pcid=41

Win server 2003 / win server 2008
Linux (2.4 or higher )
Mac OS 8.6 or above Versions until MAC High Sierra (version 10.13)
Download driver mac tertinggi di sini : http:// www. prolific. com. tw/US/ShowProduct.aspx?p_id=229&pcid=41

Isi Paket :

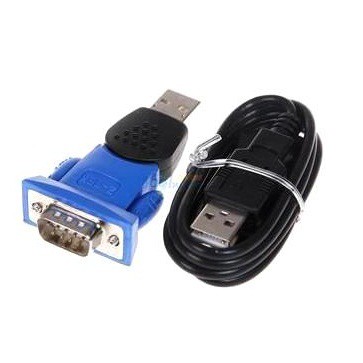

1 x USB to Serial DB9 ztek
1 x USB Cable - 80cm
1 x CD-Driver

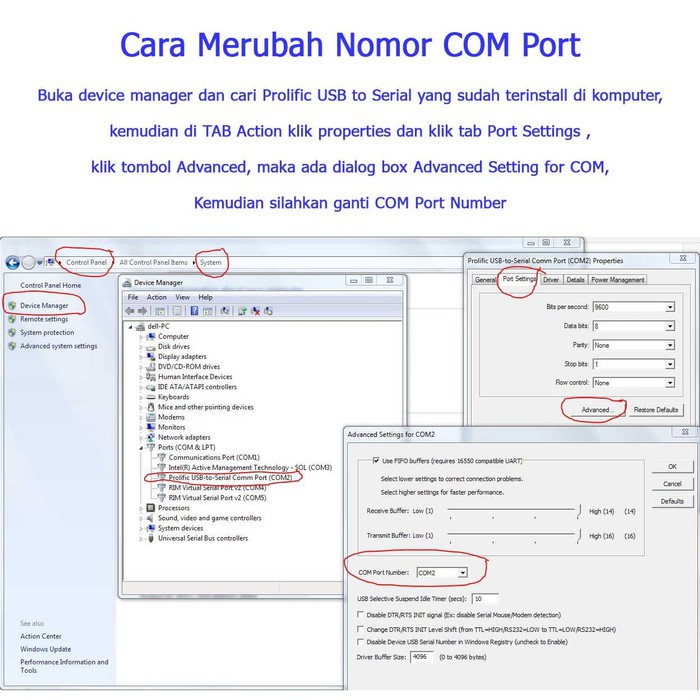

Ada kala nya kabel USB Serial di butuhkan untuk sebuah aplikasi yang hanya support COM1 - COM4 saja , namun sayangnya yang terinstall di kompi malah dapat nya nomor COM5 atau di atas nya. Bila terjadi demikian maka Anda harus mengubah nomor COM port menjadi nomor COM port yang di kehendaki , Cara nya :

Buka device manager dan cari Prolific USB to Serial yang sudah terinstall di komputer,
kemudian di TAB Action klik properties dan klik tab Port Settings ,
klik tombol Advanced, maka ada dialog box Advanced Setting for COM,
Kemudian silahkan ganti COM Port Number, semoga bermanfaat (bisa liat di gambar produk yang terakhir).

Gambar produk

USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
USB TO SERIAL DB9 MALE RS232 CONVERTER ADAPTER merk Z-TEK ZE398
