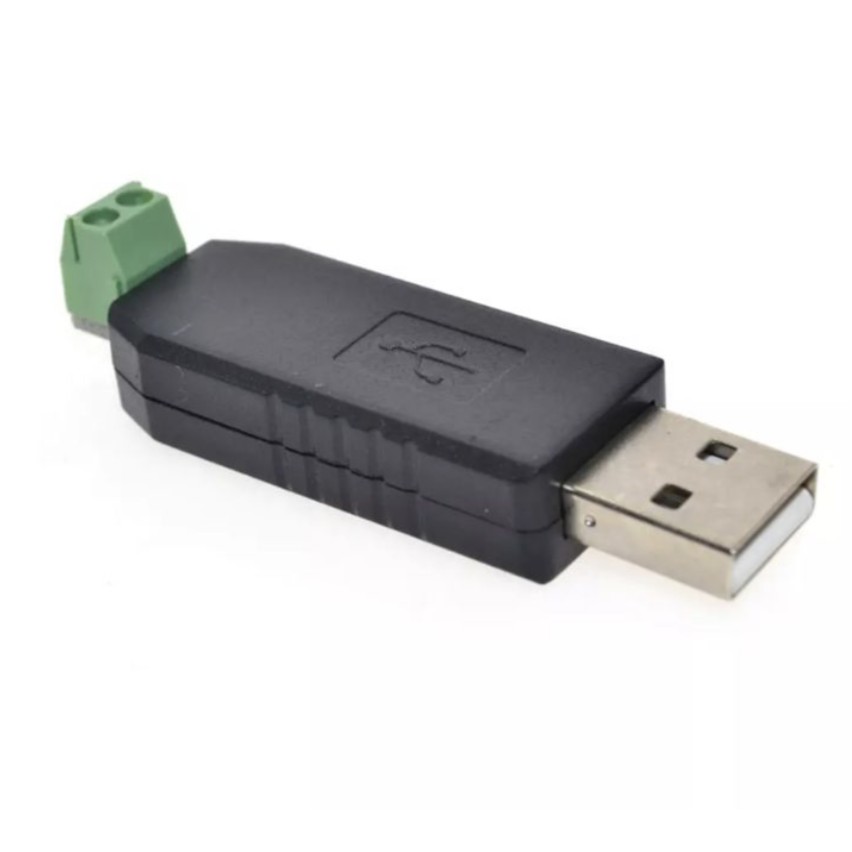

USB to RS485 RS-485 Converter Adapter Module MAX485 MAX CH340 CH 340

Detail USB to RS485 RS-485 Converter Adapter Module MAX485 MAX CH340 CH 340

Features:
USB to RS485 Converter Adapter.
USB connector: to your PC.
RS485 connector: to your RS485 device.
No need external power, powered by USB port.
Fully compliant USB 2.0 standard, backward compatible with USB1.1.

Specification:
Support System: Windows XP, Vista, Windows 7. Linux, MacOS, and WinCE5.0 drive.
Supports baud rate range: 75bps - 115200bps, up to 6Mbps.
Supports Plug, Play and hot-swap ( USB side).
Better than using CH341D chip or similar chip to support the laptop USB port.
Communication distance up to 1.2KM, with anti-jamming performance of industrial site.
Work temperature range: -40C ~ +85C.
Communication distance: 1200m(max).
Dimension:6.1x1.6x1.3cm.
Color: Black.
Applications:
All kinds with RS485 port device parameter settings, data communication
Short distance, such as parameter settings of the computer peripheral equipment, the use of common data lines can be .
A and A port of the device when the wiring is connected, B and device B connected . Some devices D + A and D, - B .
'' LED display of communication data
'' Machine PLC data reading and writing
'' Monitoring data read and write, and PTZ control
'' Centralized control of household electrical appliances
'' Access Control System ; card
'' A variety of industrial automation ; instrumentation
'' Parking ; bus fees
'' Dining Hall ; staff attendance
'' Highway toll station; ATM machine
