USB STEP UP DC 5V TO 1.2-24V

Detail USB STEP UP DC 5V TO 1.2-24V

USB STEP UP DC 5V TO 1.2-24V
Description:
1. This power supply is very convenient to use. You can output 1.2V to 24V adjustable voltage and 3W power as long as you plug in USB or micro USB.
2. It is very suitable for technical engineers to develop, debug and repair instruments. After-sales engineers are on business to supply power to instruments and meters. It is very convenient.

Feature:
1. Easy to use, plug in USB or micro USB to output 1.2V-24V adjustable voltage.
2. Turn off output with one key.
3. Digital tube can be turned off.
4. Using multi-loop precise adjustable potentiometer to regulate
5. Power-off storage before power-off.

Specification:
Input voltage: 3.5V-12V
Output voltage: 1.2-24V
Output Voltage 1.2V-2V, Used within 2W
Output Voltage 2V-20V, Used within 3W
Output Voltage 20V-24V, Used within 2.5W
Output power = output voltage x output current
Product size: 80mm*20mm*10mm/3.14*0.78*0.39''
Packing weight: 15g

Note: This product is not a high power supply, please use it in the power range.
Please allow 1-3mm differs due to manual measurement

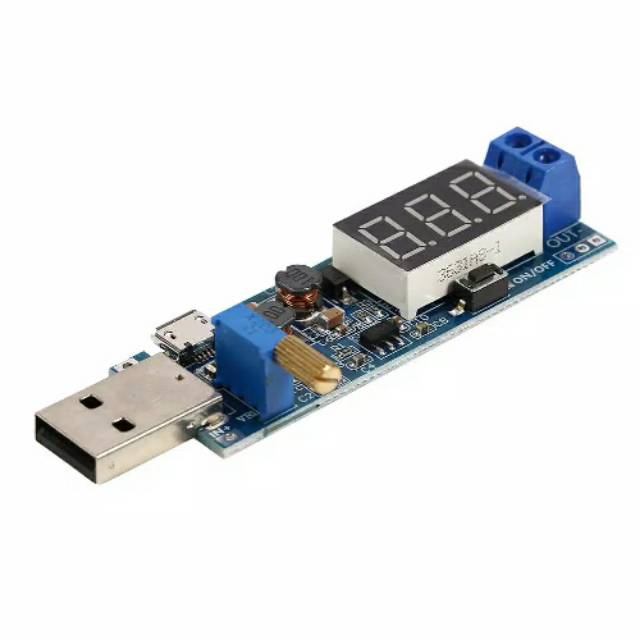

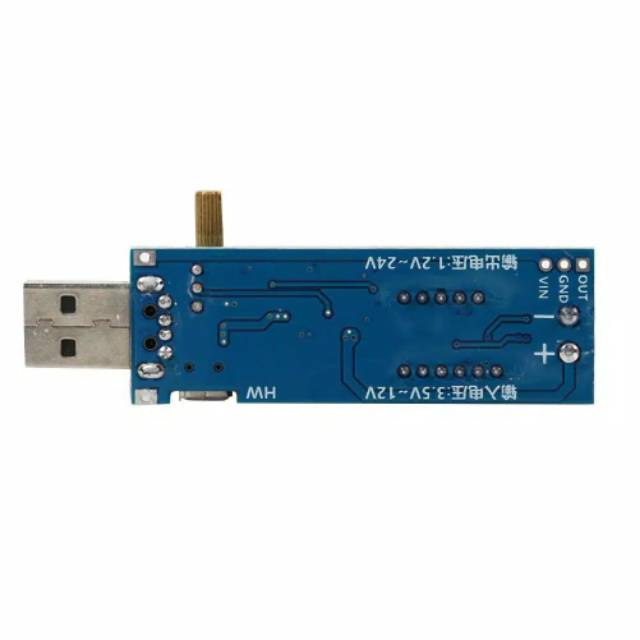

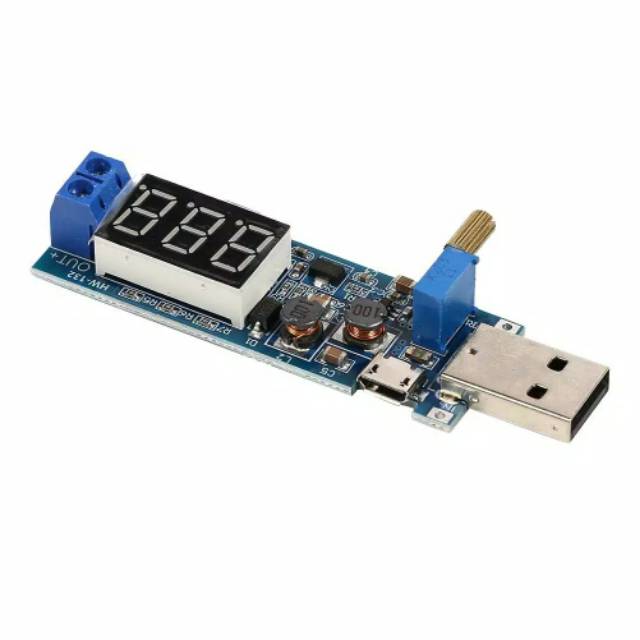

Gambar produk
