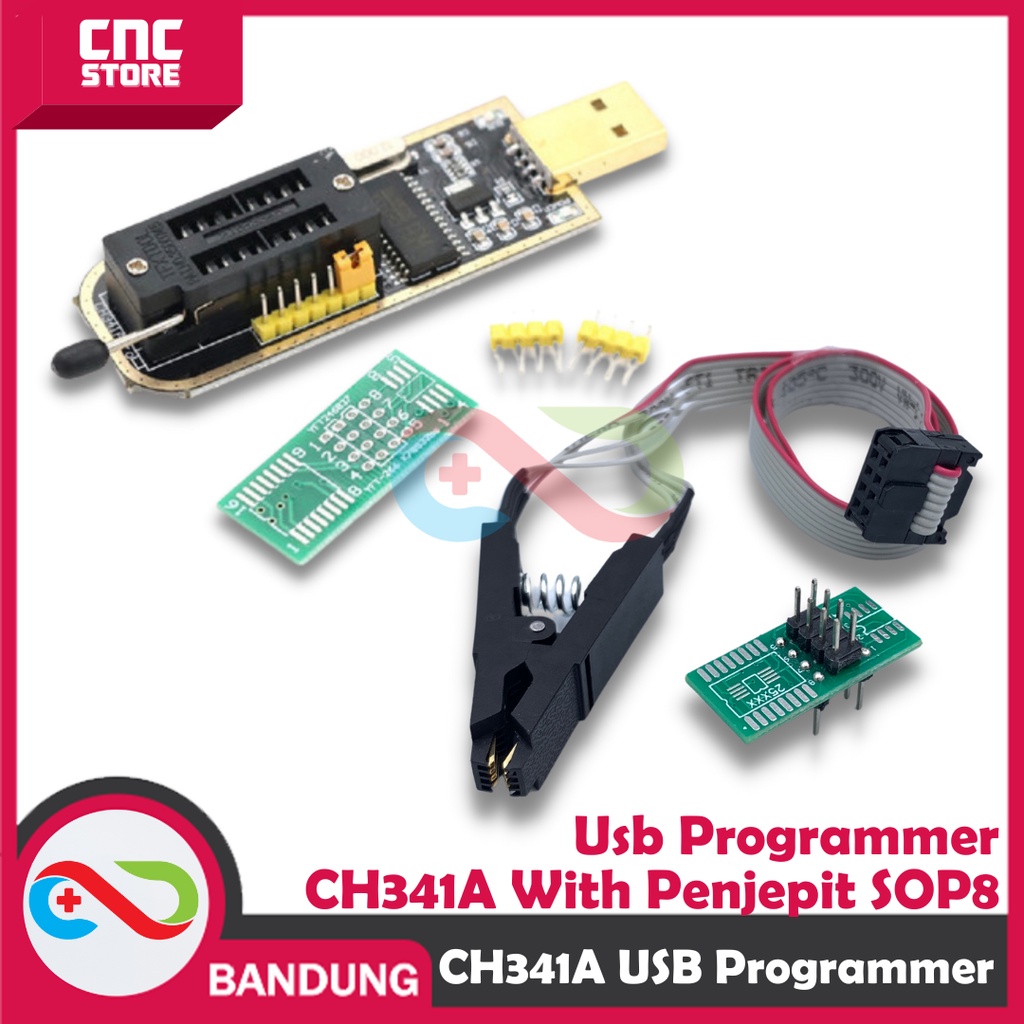

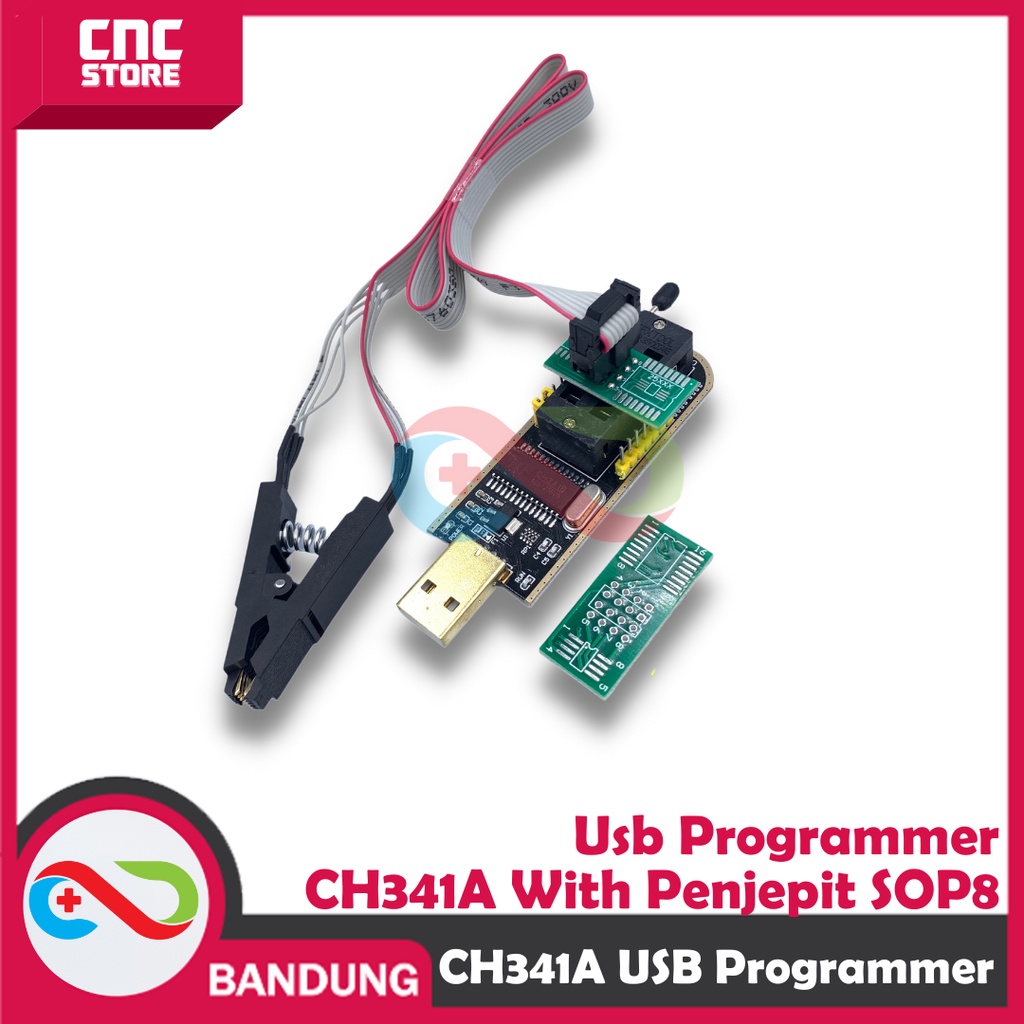

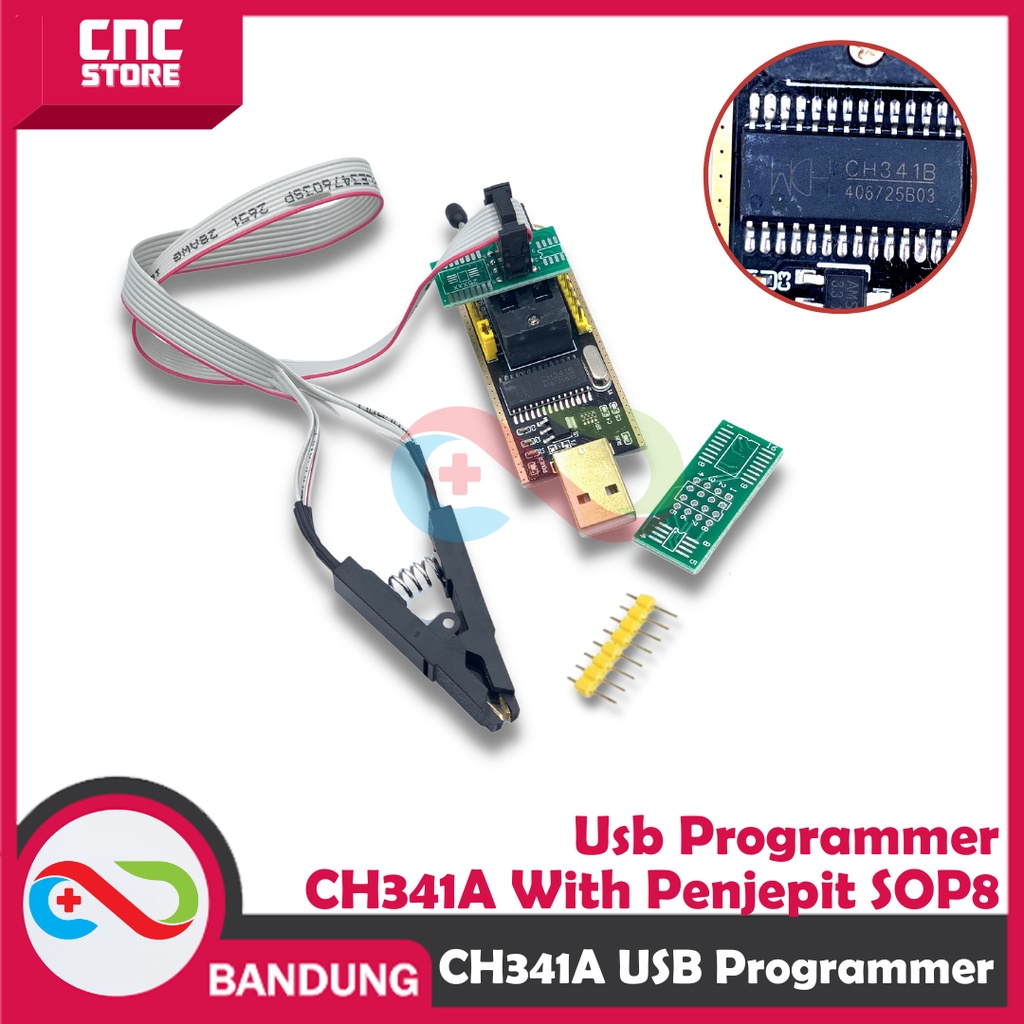

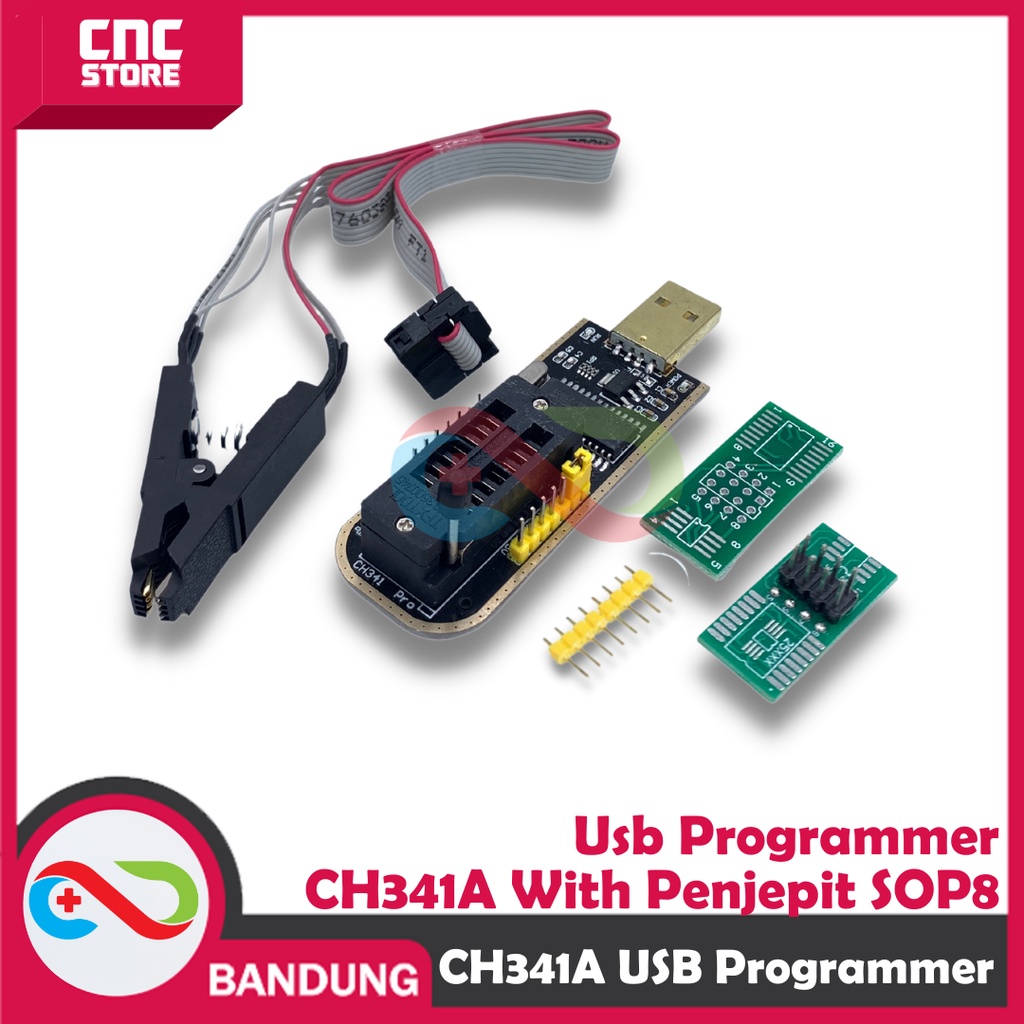

USB PROGRAMMER IC EEPROM CH341A PLUS PENJEPIT SOP8 FLASH BIOS

Detail USB PROGRAMMER IC EEPROM CH341A PLUS PENJEPIT SOP8 FLASH BIOS

BRD-0061
==============================


Deskripsi:
==============================
hallo gan, kita ada yang baru nih, kenalin USB PROGRAMMER IC EEPROM CH341A PLUS
PENJEPIT SOP8 FLASH BIOS, fungsinya bisa sebagai writer ic nya, menformat chip,
menulis ulang chip, mengambil data dari chipnya serta menflash ic nya dengan
mudah dengan alat ini, canggih banget kan.


Mari di ORDER gan !!!!!! :D


Fitur & Spesifikasi:
==============================
1. USB EEPROM/MCU Programmer
2. Support 24EEPROM and 25 SPI flash 8pin/16pin chip
3. Support USB to TTL with CH341A chip
4. Recognize 25 series chip automatically
5. And support download STC series procedure of singlechip
6. With 24/25 status indicator lamp
7. SPI pin to support expanding the utility
8. Provide 5V-3.3V power supply output
9. Dimension:70mm x 27mm
10. 100% brand new and high quality

Support chips list:

AMIC:
A25L05P,A25L10P,A25L20P,A25L40P,A25L80P,A25L16P

ATMEL:
AT,AT25DF321,AT25F004,AT25F512A,AT25F2048,AT25F4096, AT,AT25FS010,AT25FS040,AT,AT, AT26DF321,AT26F004

EON:
EN25B05,EN25P05,EN25B10,EN25P10,EN25BF20,EN25P20, EN25F20,EN25B40,EN25P40,EN25F40,EN25B80,EN25P80, EN25F80, EN25T80,EN25B16,EN25P16,EN25B32,EN25P32, EN25B64,EN25P64

Excel Semiconductor Inc.
ES25P10,ES25P20,ES25P40,ES25P80,ES25P16,ES25P32

ST:
M25P05A,M25P10A,M25P20,M25P40,M25P80,M25P16, M25P32,M25P64,M25PE10,M25PE20,M25PE40,M25PE80, M25PE16,M25PE32,M45PE10,M45PE20,M45PE4 it0,M45PE80, M45PE16,M45PE32

MXIC:
MX25L512,MX25L1005,MX25L2005,MX25L4005,MX25L8005,MX25L1605, MX25L3205,MX25L6405

NexFlash:
NX25P80,NX25P16,NX25P32

Chingis Technology Corporation
Pm25LV512,Pm25LV010,Pm25LV020,Pm25LV040,Pm25LV080,Pm25LV016, Pm25LV032,Pm25LV064

Saifun Semiconductors
SA25F005,SA25F010,SA25F020,SA25F040,SA25F080,SA25F160,SA25F320,

Silicon Storage Technology SST
SST25VF512A,SST25LF010A,SST25VF010A,SST25LF020A,SST25VF020, SST25LF040A,SST25VF040B,SST25LF080A,SST25VF080B,SST25VF016B,SST25VF032B

WINBOND
W25P10,W25X10,W25Q10,W25P20,W25X20,W25Q20,W25P40,W25X40, W25Q40,W25P80,W25X80,W25Q80,W25P16,W25X16 24CXX 24LCXX 24C01, 24C02, 24C04, 24C08, 24C16, 24C32, 24C64, 24C128, 24C256, 24C512, 24C1024. 24LC

Paket :
===============================
- 1x USB PROGRAMMER IC EEPROM CH341A PLUS PENJEPIT SOP8 FLASH BIOS

Gambar produk
