USB Mini 5V 3A Input DC 6-24V Step Down Buck Converter Charger Module

Detail USB Mini 5V 3A Input DC 6-24V Step Down Buck Converter Charger Module

USB Mini 5V 3A Input DC 6-24V Step Down Buck Converter Charger Module

Spesifikasi:
Module Properties: non-isolated buck module (BUCK) synchronous rectification
Input voltage: DC 6-24V
Output voltage: 5V
Output current: 3A MAX, long time use 2.1A
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 Celsuis to + 85 Celsuis) (the higher the ambient temperature, the lower the output power)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Full load temperature: 30 Celsuis
Static current: 0.85 mA
Load regulation: 1%
Voltage Regulation: 0.5%
Dynamic response speed: 5% 200uS
Output short circuit protection: Yes, but please do not short circuit for a long time
Input reverse polarity protection: Yes, there is reverse polarity protection diode

Paket:
1 buah USB Mini 5V 3A DC-DC Step Down Converter

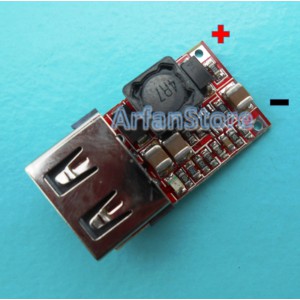

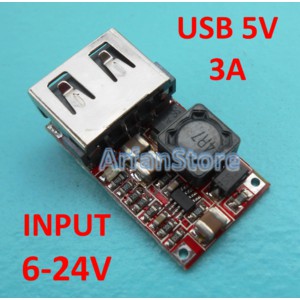

Gambar produk
