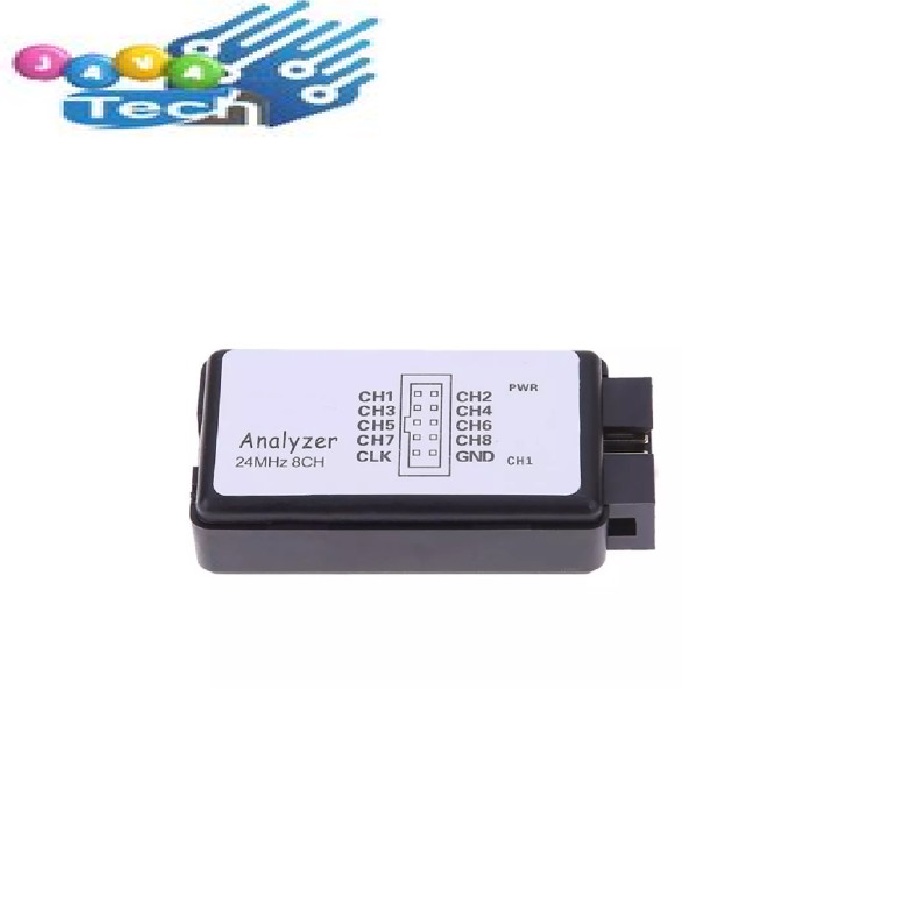

USB Logic Analyzer Module 24MHz 8ch ARMFPGA Development Board

Detail USB Logic Analyzer Module 24MHz 8ch ARMFPGA Development Board

Features:
This is a kind of fine quality USB logic analyzer, equipped with 8 channels, can gather at the same time, so as to signal analyze, such as UART. The logic for each channel sampling speed up to 24M/s. You can have a try.
8 channels can gather at the same time, so as to signal analyze, such as UART.
The logic for each channel sampling speed up to 24M/s.
Applications around 10M, enough to cope with a variety ofoccasions.
Large quantity sample collection, strong and powerful.
Equipped with overpressure protection, for safety working.
Sampling rate can be set as below: 24MHz, 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz, 250KHz, 200KHz, 100KHz, 50KHz, 25KHz.
Data upload real time, with depth collection, far from practical need.
Support WIN7(32 and 64), 2K, XP, LINUX.

Specifications:
Material: Metal and Plastic
Size: approx.55x15x28mm/2.17x0.59x1.1in
Color: As pictures shown
Quantity: 1 Set

Note:
No retail package.
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

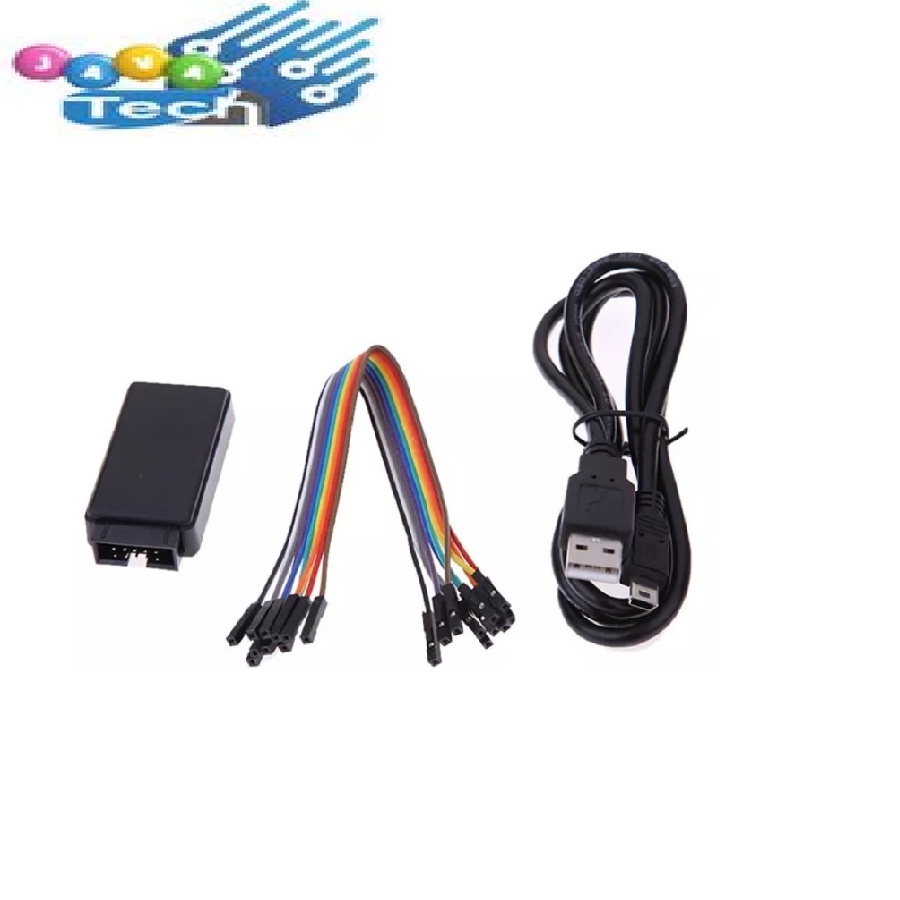

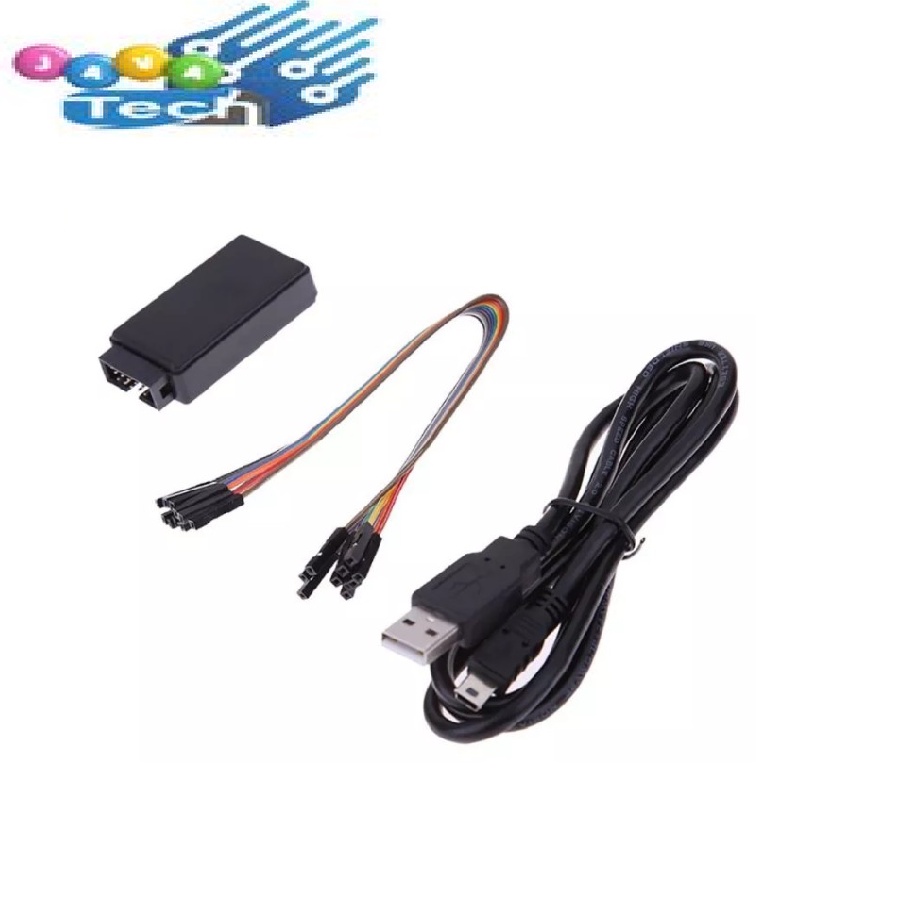

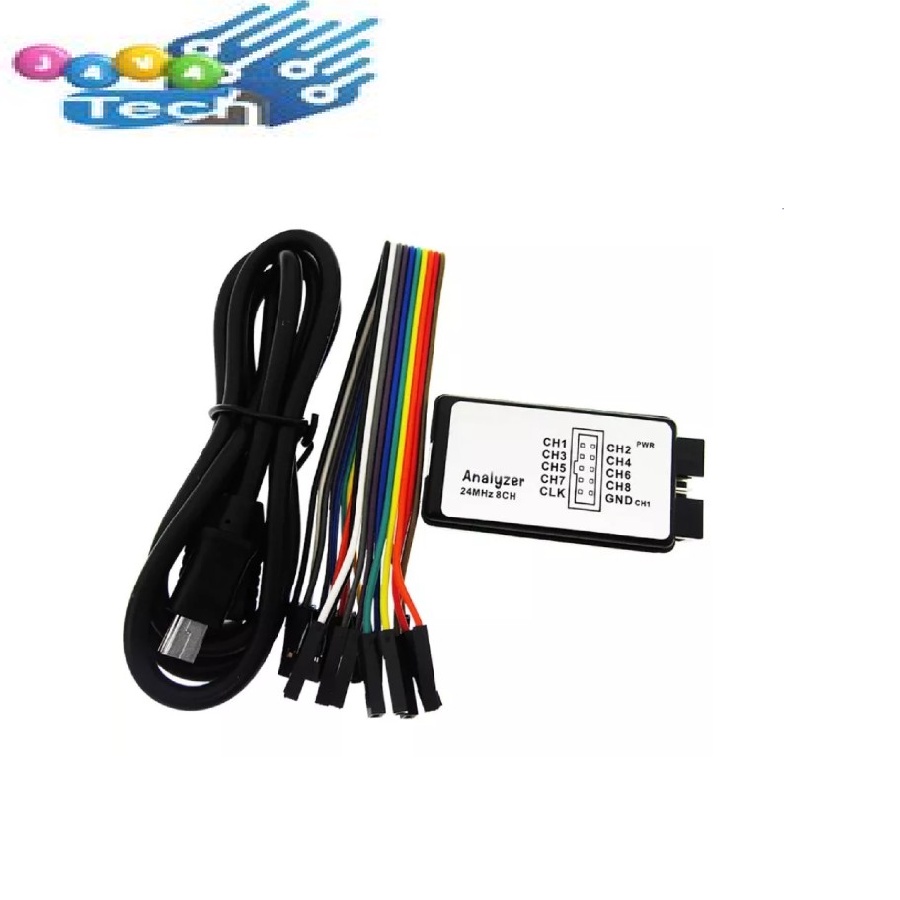

Package Includes:
1 x Logic Analyzer
1 x USB Cable
10 Female to Female cable
