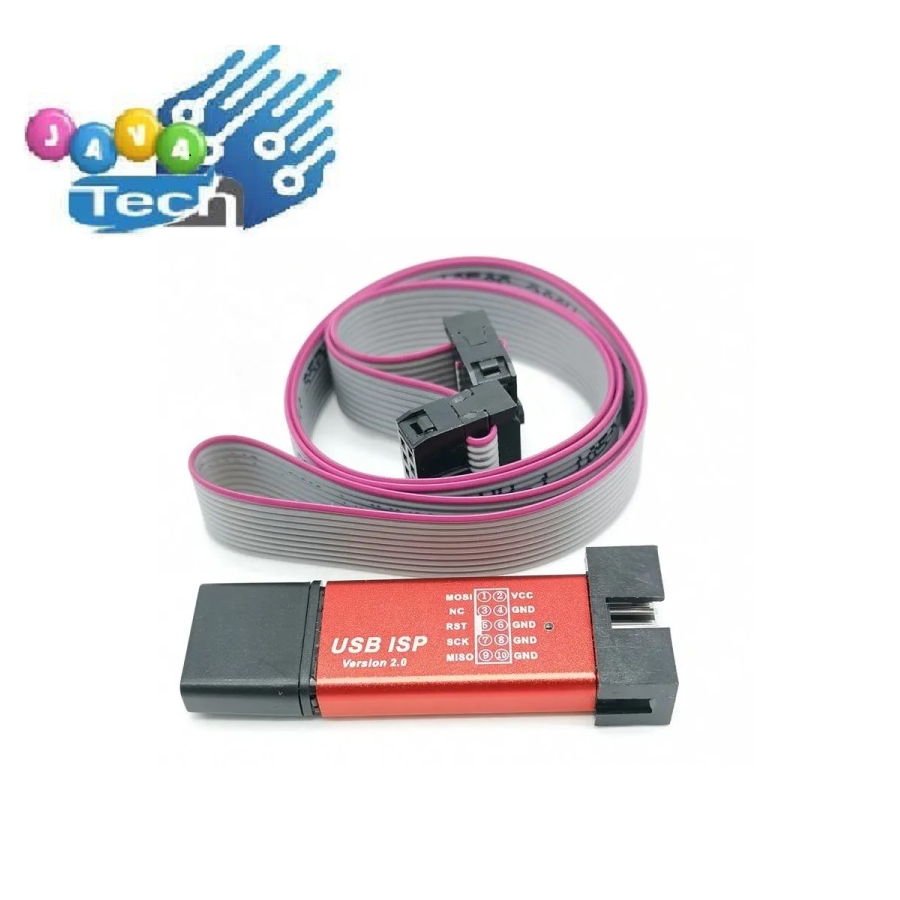

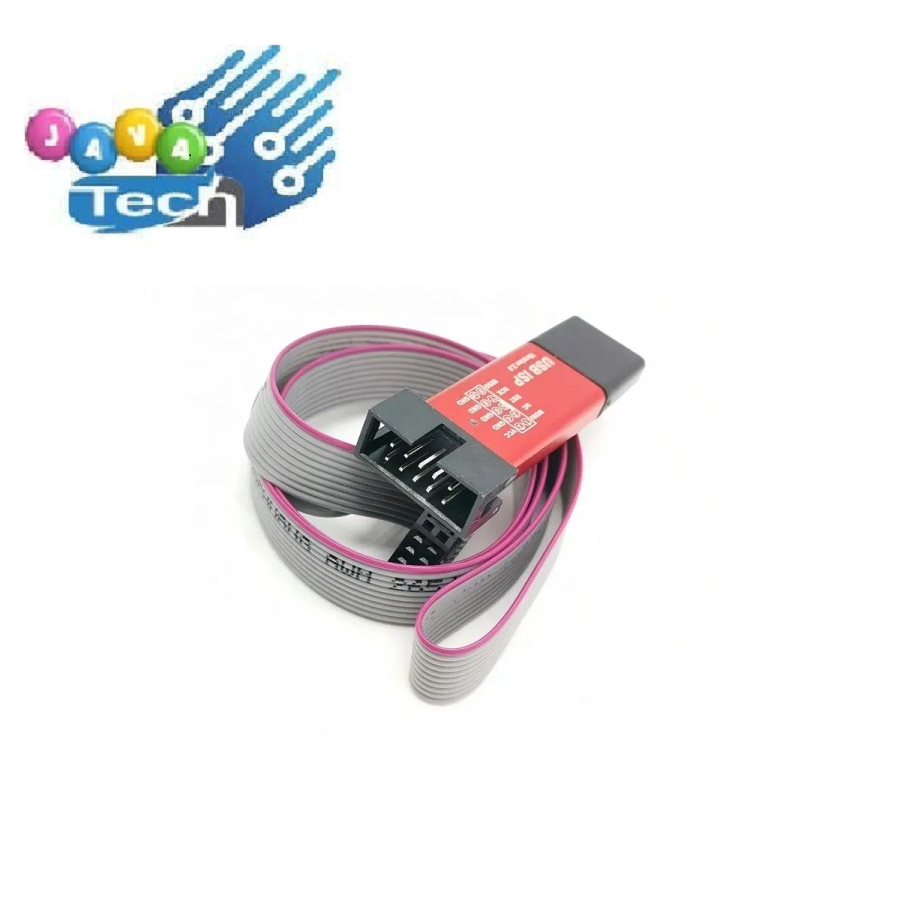

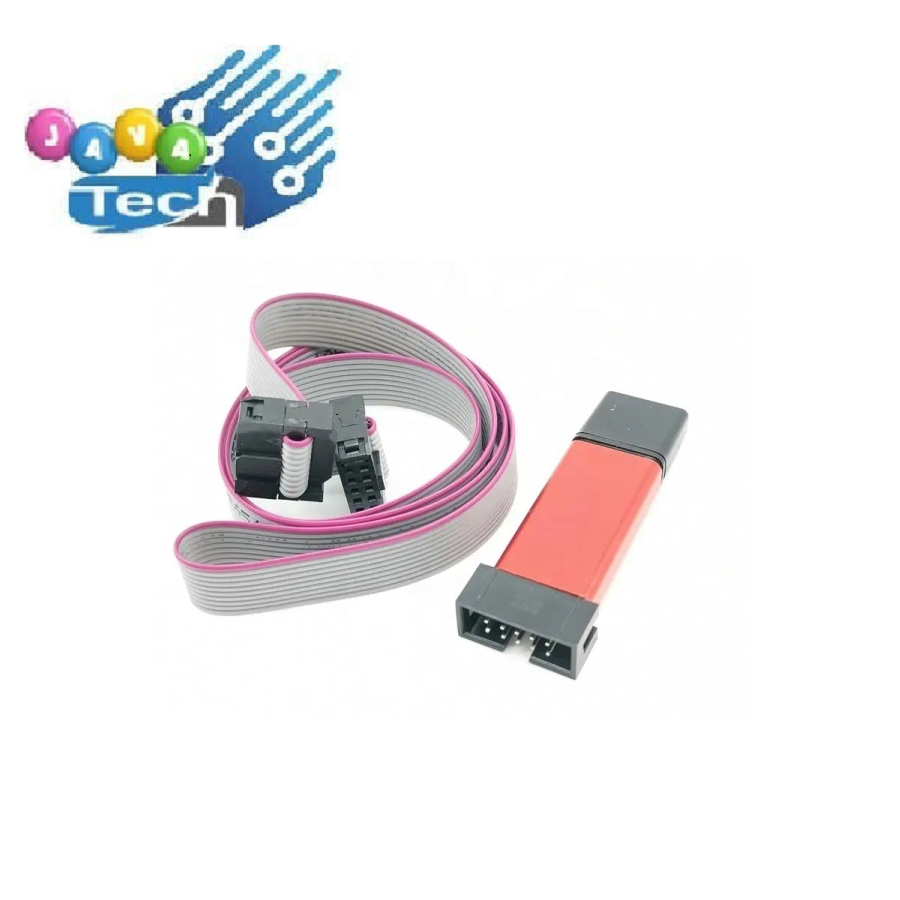

Detail USB ISP ASP AVR 51 Programmer Microcontrol Uploader Downloader
1.Without having to install drivers, support WIN98, WINME, WIN2K, WINXP, VISTA operating system.
2.Using the USB port power supply, 500mA recoverable fuse, short circuit overcurrent protection, the target board can be with the USB-powered.
3.The download is complete, does not affect the running of the target board.
4.Support S51 and AVR chips burn, faster than a parallel port ISP and more stable; is the best choice for not parallel port of the notebook and computer use. (3.3V version not support the burning of the S51, S51, Series 3.3V can not download).
5.Using the latest version of the super-stable firmware, low-speed download hardware without having to select jumpers, download faster and more stable.
6.Using the standard IDC10 interface.
The definition of AT89S51 and S52 series pin download cable to the corresponding connection:
