USB HDMI CAPTURE VIDEO HD 1080P ZOOM GAME LIVE STREAMING Input 4K slim

Detail USB HDMI CAPTURE VIDEO HD 1080P ZOOM GAME LIVE STREAMING Input 4K slim

JUAL : USB HDMI CAPTURE VIDEO HD 1080P ZOOM GAME LIVE STREAMING Input 4K slim

HDMI To USB 2.0 Video Capture Card 1080P Game Recording Box for PS4 Camera Recording Live Streaming

The USB 2.0 capture card can capture both HDMI video and HDMI audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. It is suitable for high-definition acquisition, teaching recording, medical imaging, etc.

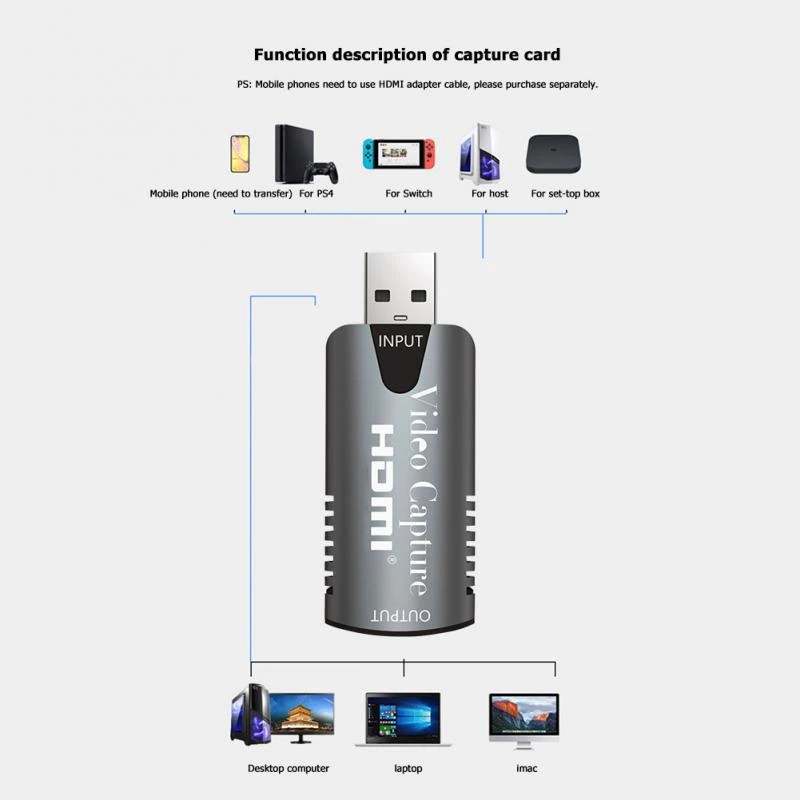

Applicable scene : Conference recording, teaching recording, live recording, mobile game recording, camera recording.

Features:

Max. input res up to 4K
Max. Capture Res 1080P 30Fps
Support 8/10/12 bit color depth
Support most acquisition software, such as for VLC, OBS, Amcap, Vmix, etc.
Support for Windows, Android and for MacOS;
Comply with USB Audio and video UVC specification;
No need for external power supply, compact , Portable and easy to carry


Spec :

Interface: USB2.0 + HDMI female
Material case : aluminum
Capture output : max 1080P 30FPS
Video input format: 8/10/12 bit color depth
Video output mode: YUV, JPEG
Support audio format: L-PCM
Max HDMI Cable : 10 M

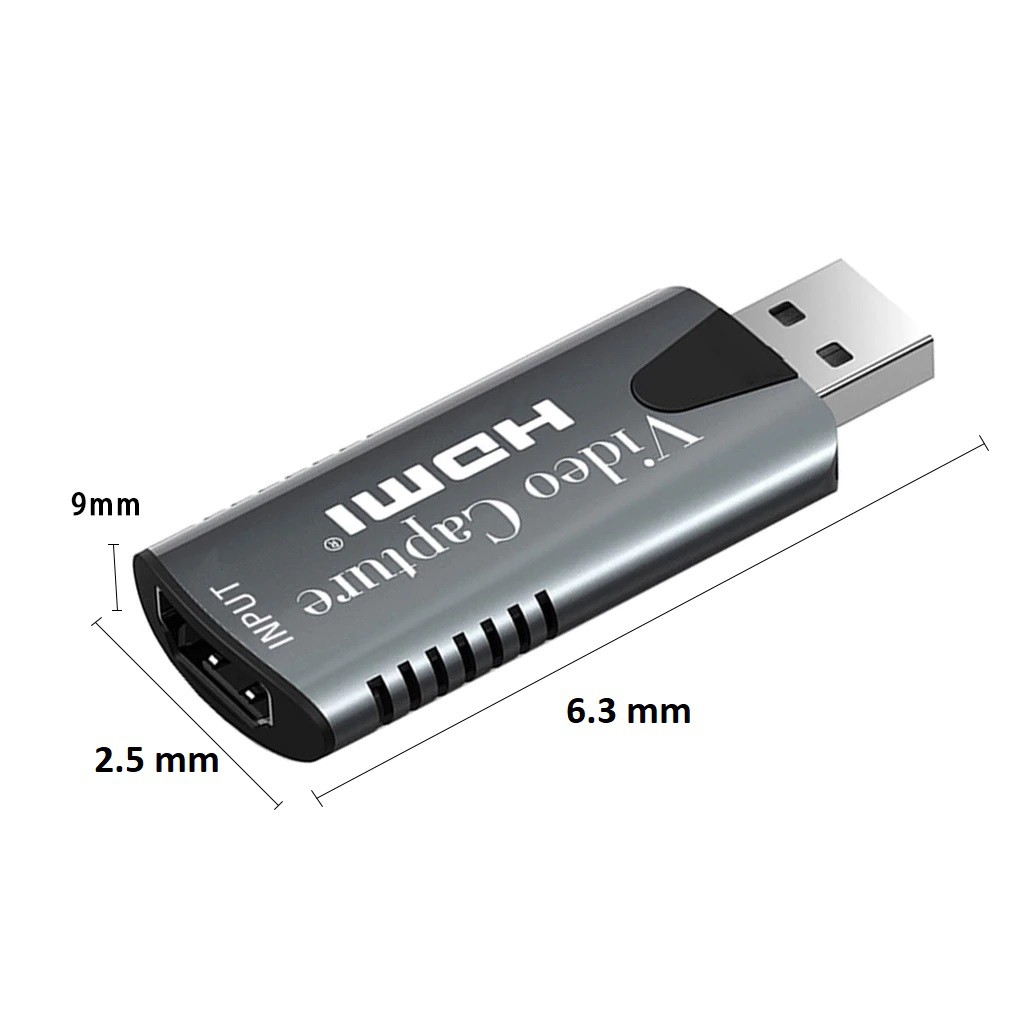

Dimensi : 25 x 63 x 9 mm
Weight: 15 g

Connection operation OBS
1: Connect the UHD signal source with HDMI Cable into HDMI input of USB Capture Dongle
2: Plug the USB male Capture dongle into the USB port of the computer
3: open the software - add a new source - select video capture device ; - set the screen size - select studio mode (double window) - click start recording or Live Streaming

Computer hardware configuration requirement:
CPU : minimal PC i5-3400 or above;
NB / Laptop : min i7-3537u 2.0GHz or above
Display card Min :
PC : NVIDIA GT630 or above;
NB : NVIDIA GT735M or above
RAM : min 4Gb

Review :
Di OBS bisa max res 1080p 30fps dengan hasil lancar mulus
Di Vmix set res 1080p 30fps hasil capture patah patah, di res720p sedang, di res 480p baru mulus.

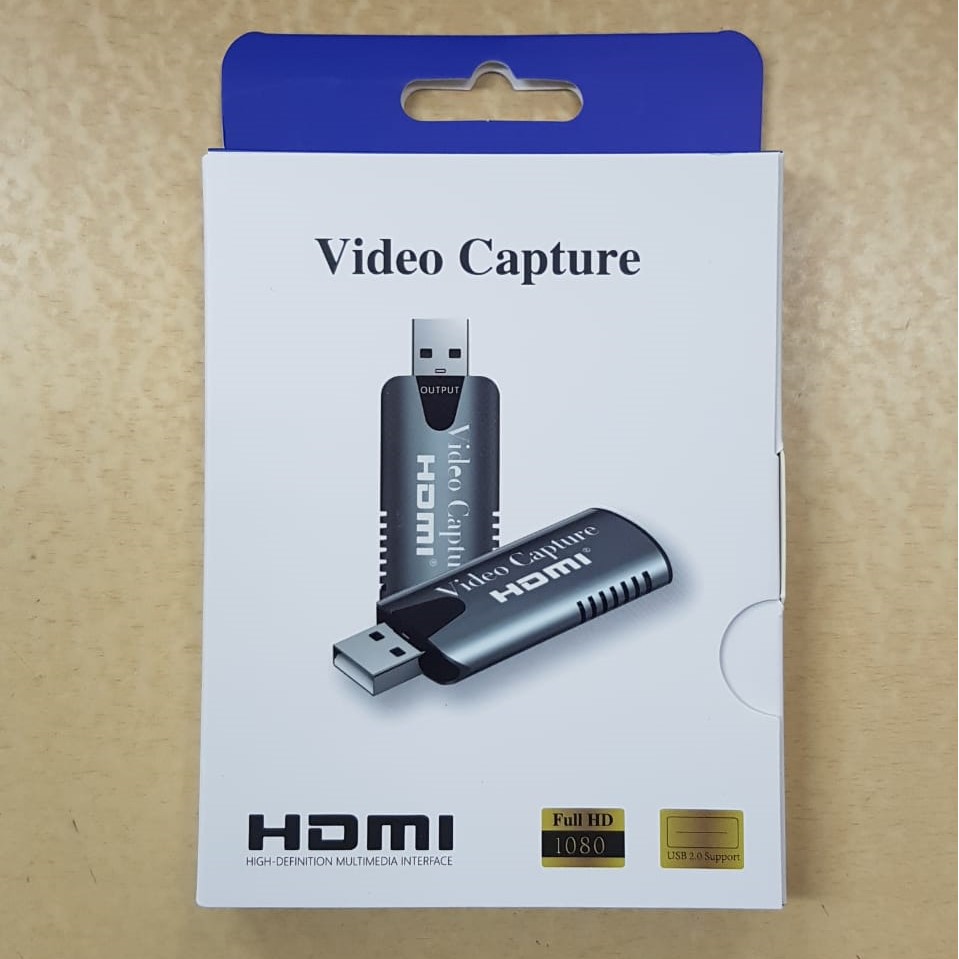

isi paket :

1 x USB video capture card Slim
1 x Manual

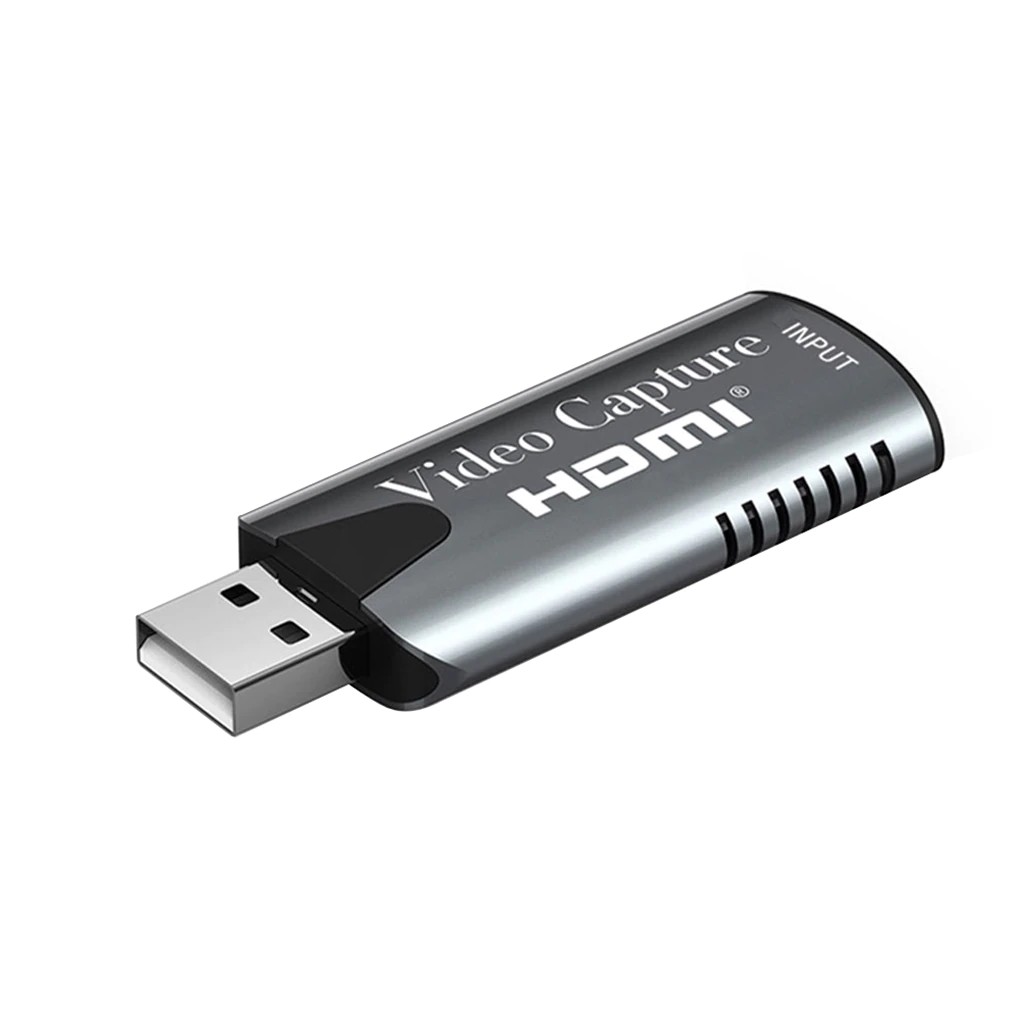

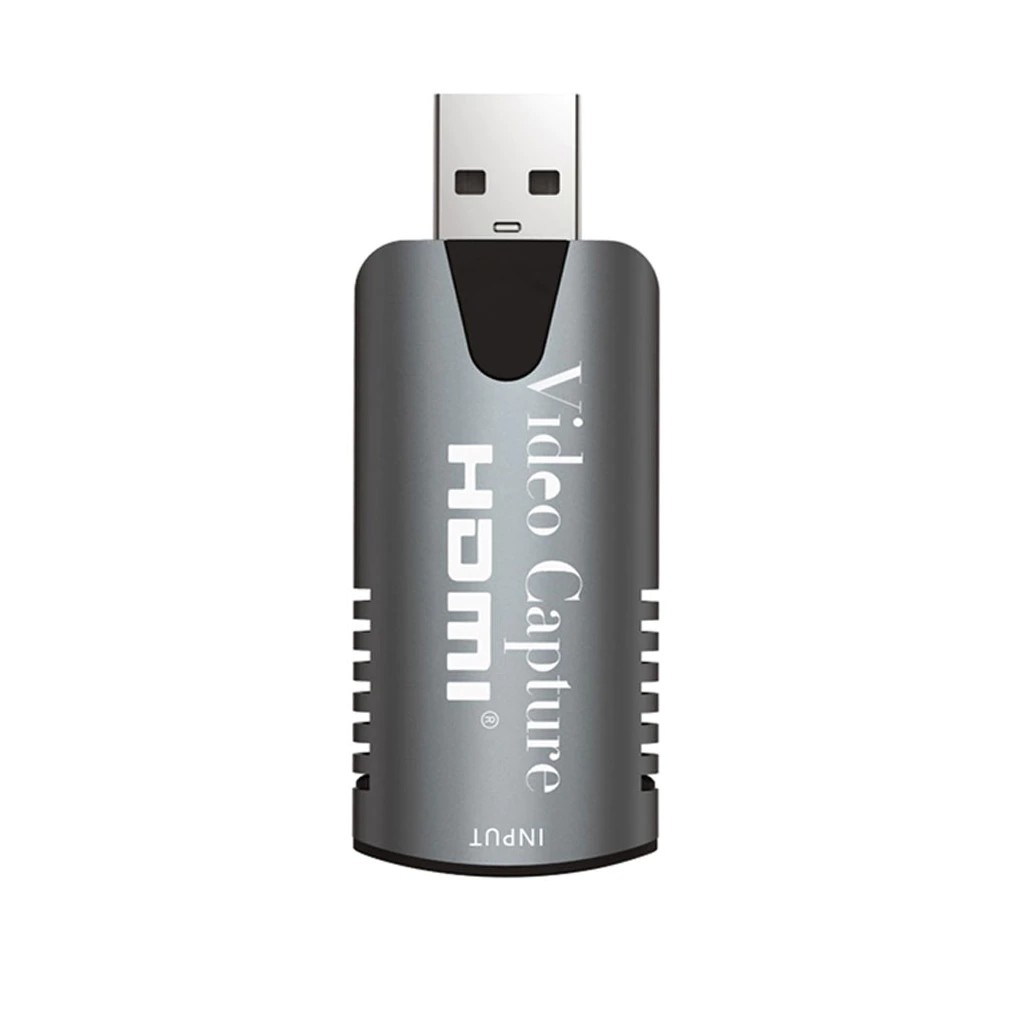

Gambar produk
