USB C Hub 12-in-1 Type C Adapter with Ethernet, 4K HDMI,VGA,2 USB 3.0,2 USB 2.0,100W PD,USB-C Data Port and SD/TF Docking Station for MacBookPro/Air(Thunderbolt 3) and Other USB-C Laptops

Detail USB C Hub 12-in-1 Type C Adapter with Ethernet, 4K HDMI,VGA,2 USB 3.0,2 USB 2.0,100W PD,USB-C Data Port and SD/TF Docking Station for MacBookPro/Air(Thunderbolt 3) and Other USB-C Laptops

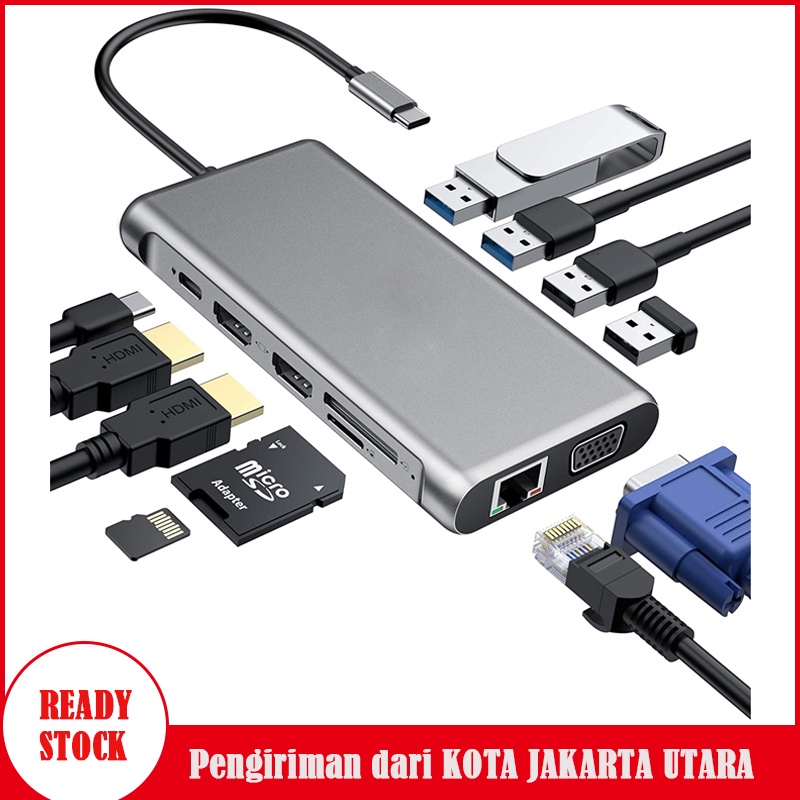

12-in-1 USB C Hub: Turn a single USB-C port into 1 Gigabit Ethernet port, 2 HDMI ports, 1 VGA port, 2 USB 3.1 Gen 1 (USB 3.0) ports, 2 USB 2.0 ports, 1 USB-C data port, 1 USB Power Delivery charging port, and SD & microSD card slots. What you get:AUKEY CB-C78 12-in-1 USB-C Hub, User Manual

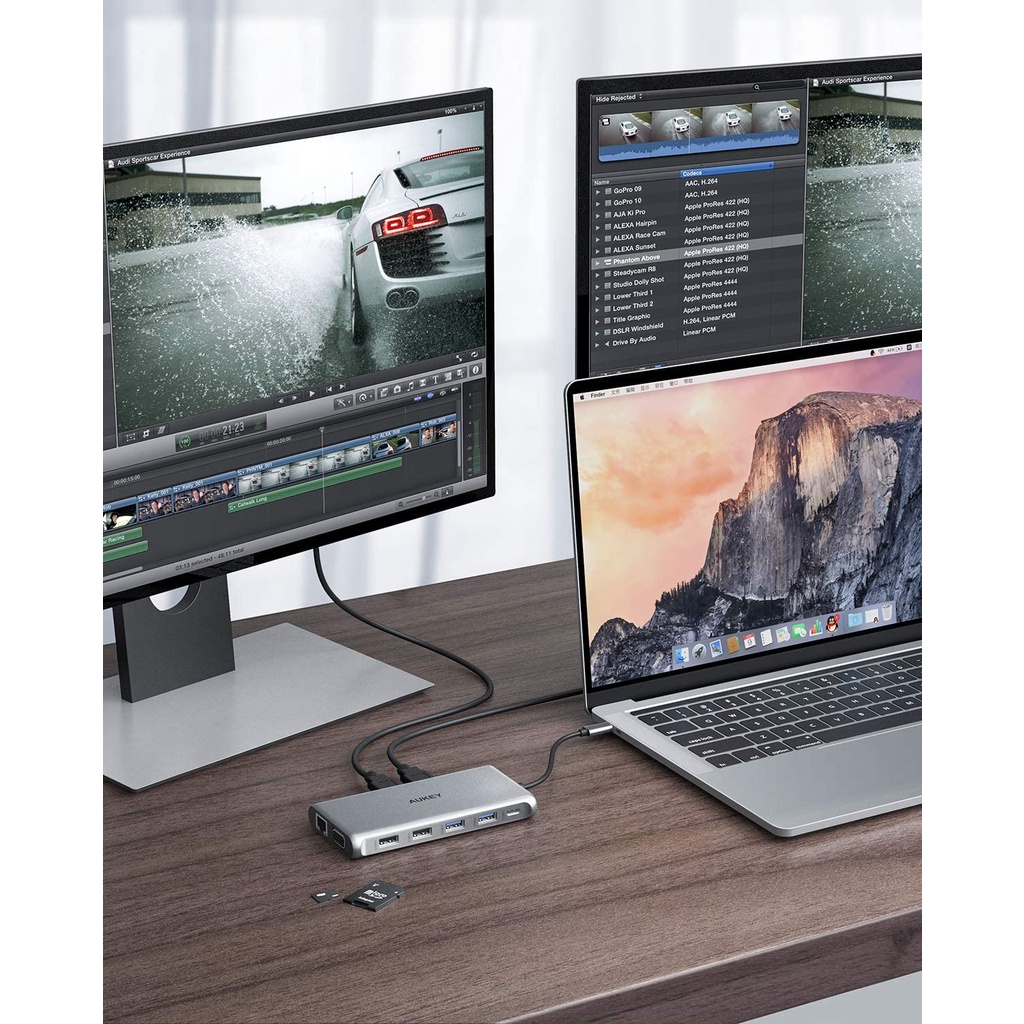

Ultra HD 4K output & Triple Display: Mirror or extend your USB-C laptop screen stream 4K UHD or full HD 1080P video using HDMI or VGA port. Triple display: one display of HDMI output, one display of HDMI or VGA, one screen of laptop. Please note ONLY Windows system support MST, Mac OS DOES NOT support triple display

Convenient Charging: The USB Power Delivery port supports up to 100W Power Delivery to keep your MacBook Pro or other compatible laptop fully charged (using your device’s original power adapter) while you’re using all the other functions of the hub. Fully charge a 15" MacBook Pro with USB Power Delivery port about 2 hours

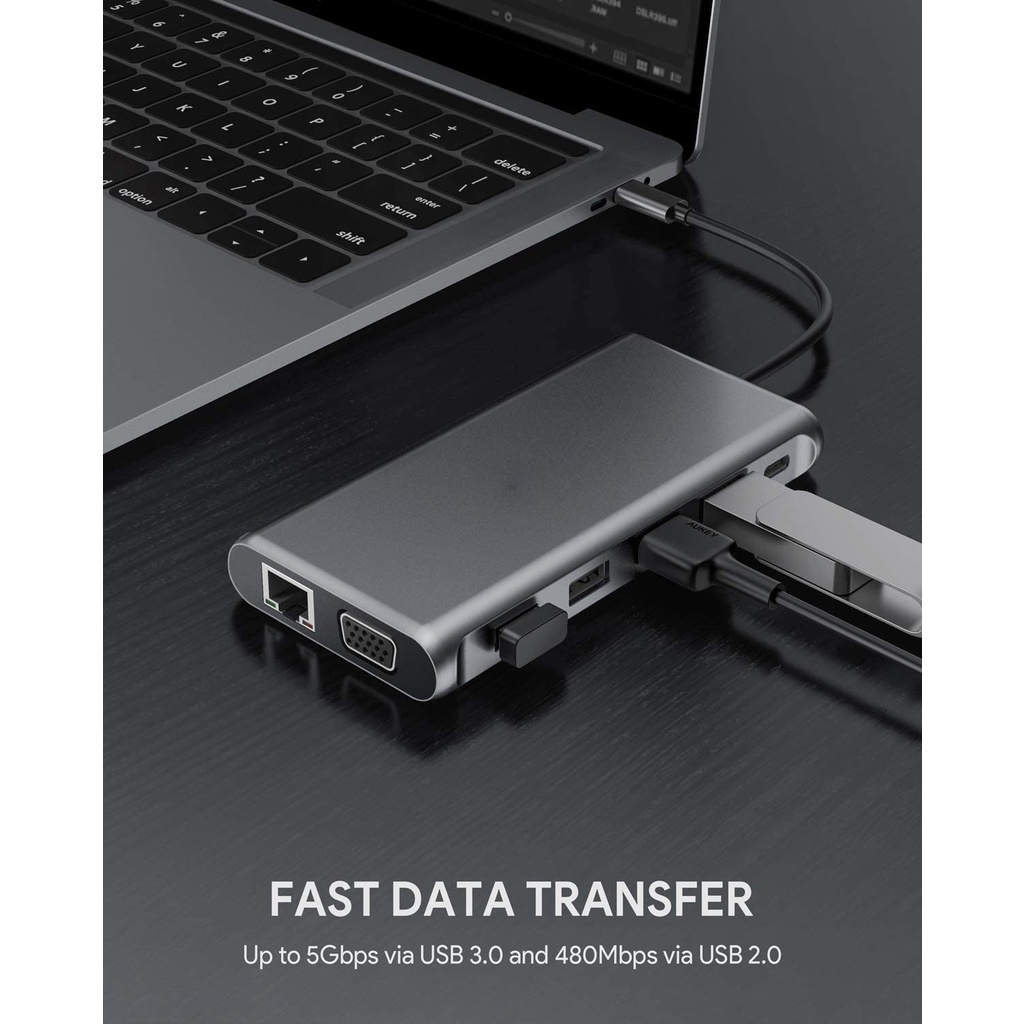

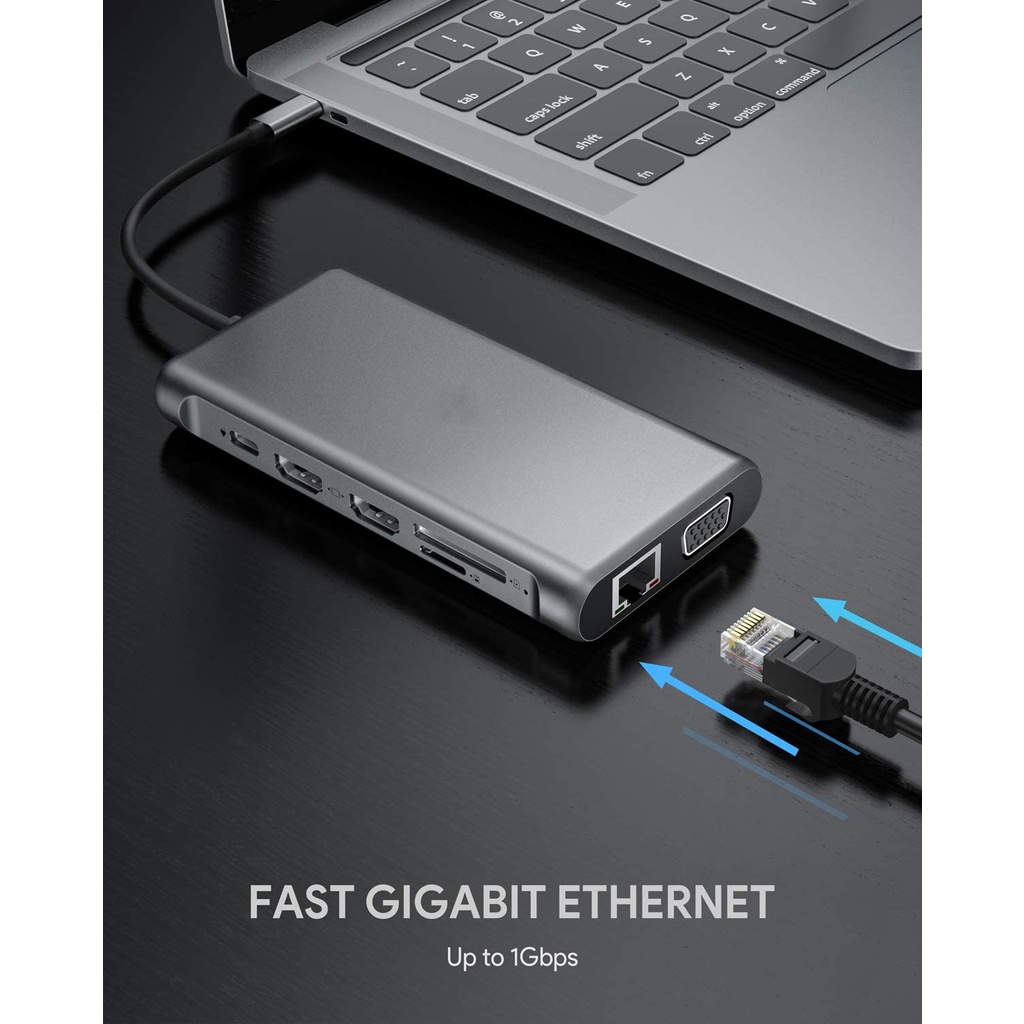

Effortless Data Transfer & Network Connection: The two USB 3.0 ports and USB-C data port support data transfer rates up to 5Gbps. Two USB 2.0 ports support and SD & microSD card slots data transfer at up to 480Mbps. Due to the USB 3.0 radio frequency interference to the wireless connection, It is advisable to connect the USB 2.0 port. Gigabit Ethernet port supports 10/100/1000Mbps network speeds,anywhere and in just a flash

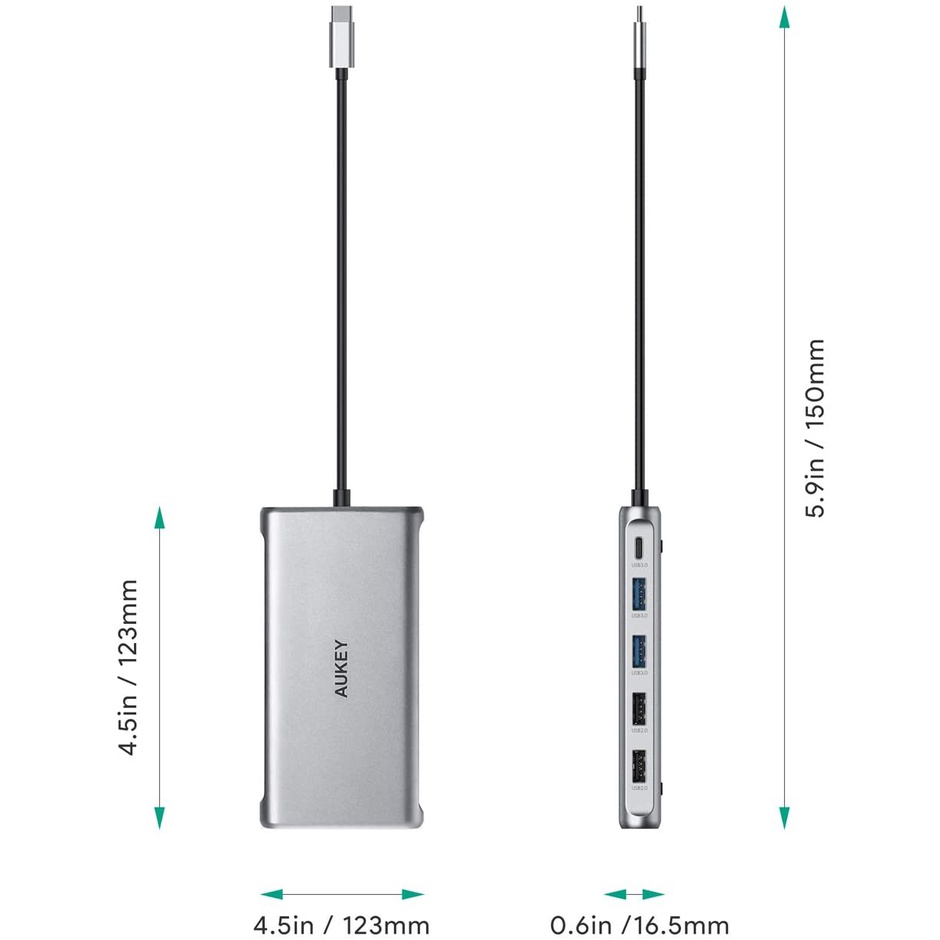

Great Versatility & MAC stylish design: Slim and compact without any compromise on accessibility and just simple Plug and Play connectivity





Mirror diaplay

When only one HDMI port is connected, its resolution can reach 4K30Hz. In other cases, the resolution is 1080P(Windows).



Note1: Please click Intel Graphics Settings for multi-display setting or press Windows+P



Note2: If you want to set Display, Resolution and Refresh Rate, go to the the Gerneral Setting.

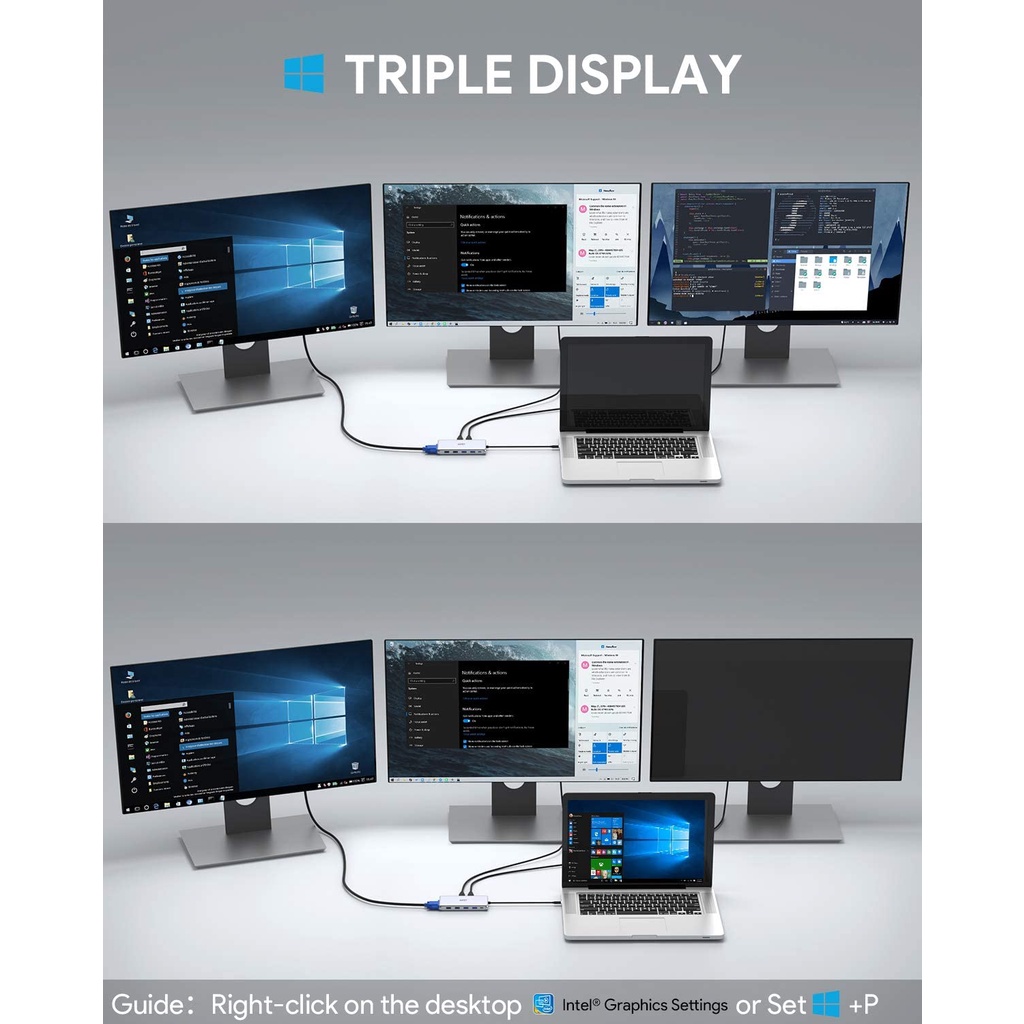

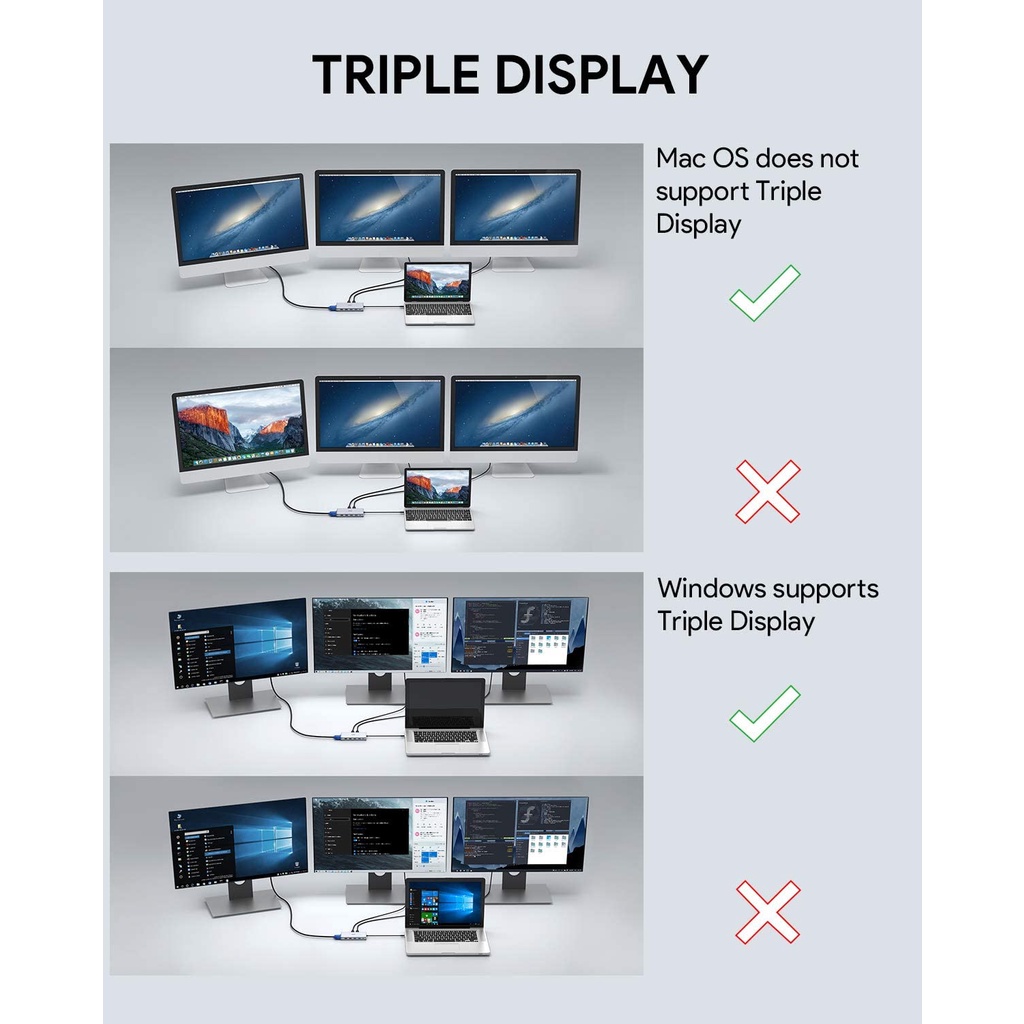

Triple display with Windows system

When connecting three displays at the same time, the resolution can only reach up to 1920*1080/60HZ. If you need, please click "Second screen only" to turn off the laptop screen after connecting.



Note1: Among the four screens (Displays and Computer), only three can display. There will be one that can not displayed (either Display or Computer)

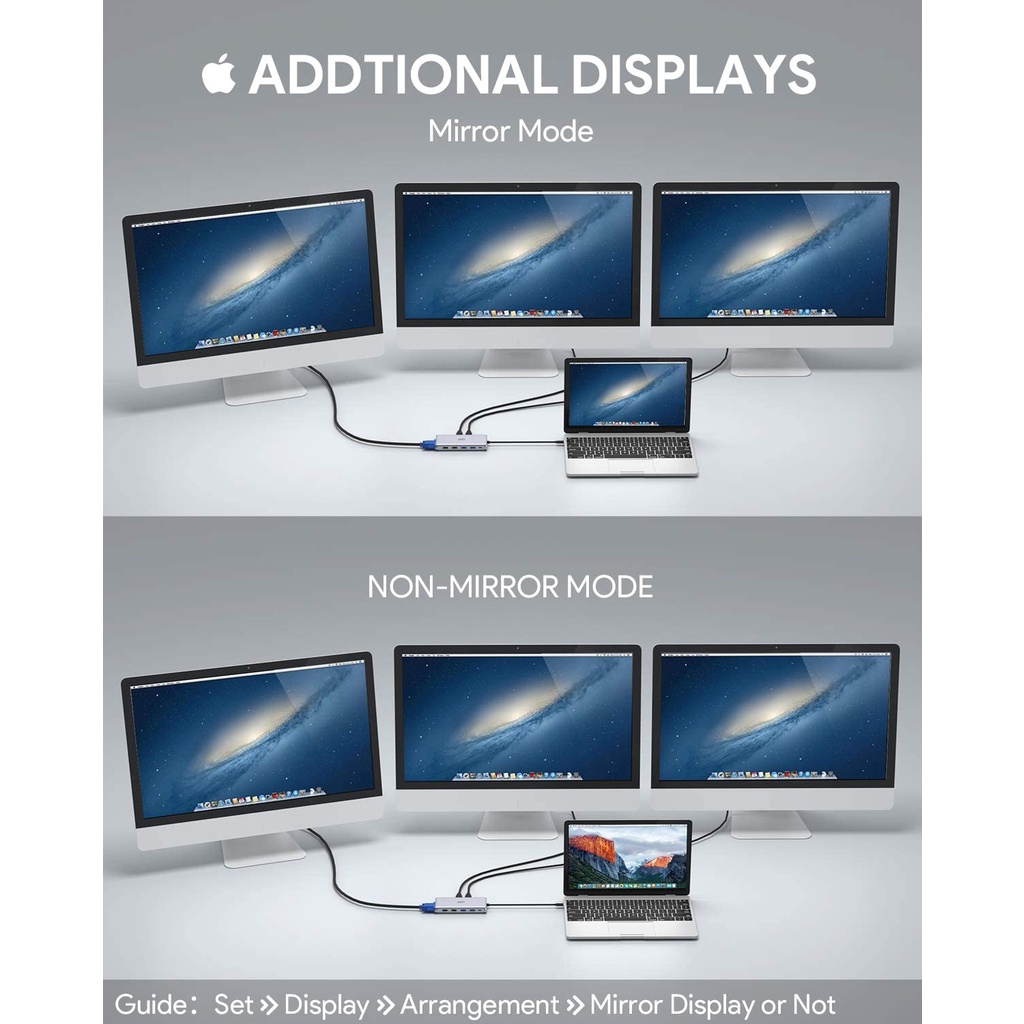

Extend display with Mac OS system



Note1: Setting- About This Mac>Display>Arrangement>Mirror Displays



Note2: When your MAC OS needs to extend display, you need to click "Display" in Preferences, choose the Arrangement option, and then click "Cancel Mirror Displays".

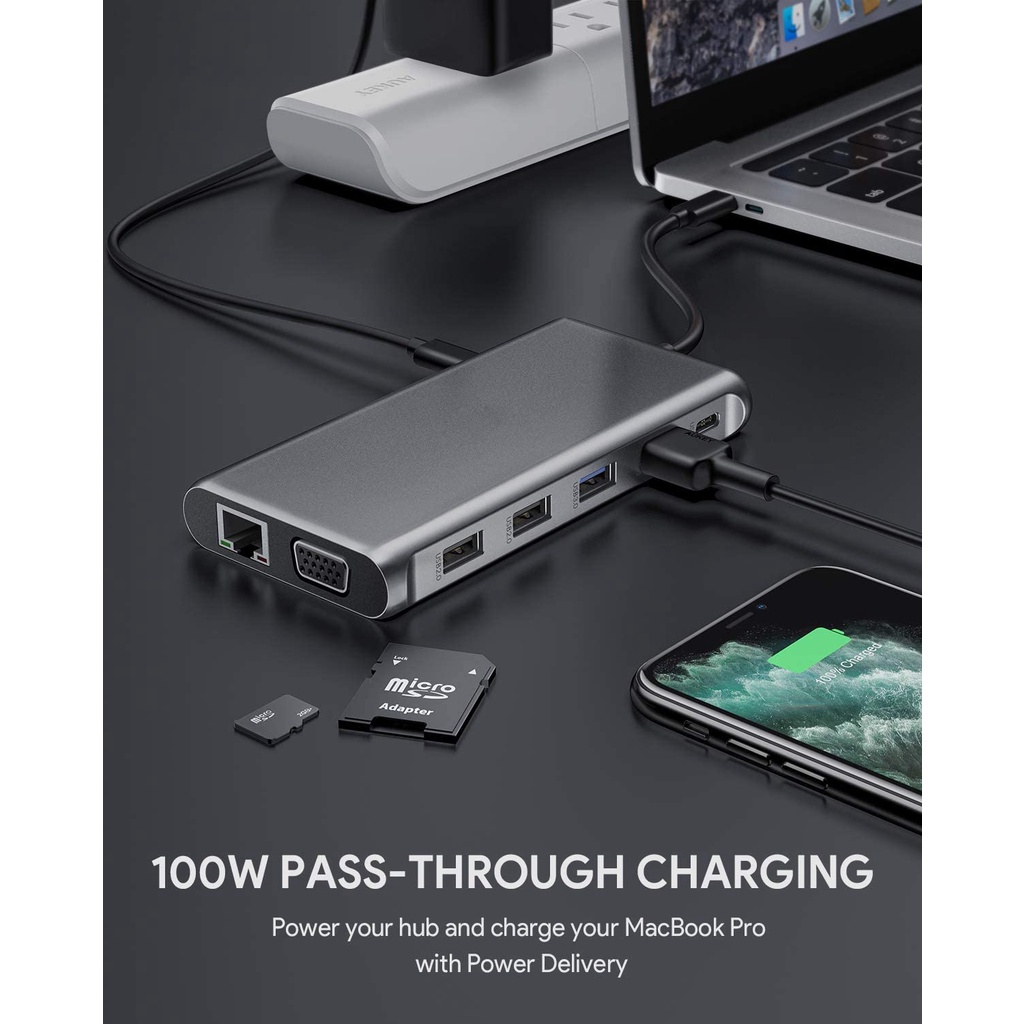

USB-C Pass-Through Charging

The USB-C port powers a compatible laptop with 100W Power Delivery.



NOTE：



For 100W pass-through charging, your computer that supports 100w charging, a 100W PD charger and a 5A E-Marker USB-C to C cable are required. Please be aware that the host device will not receive exactly 100W, as the hub itself uses about 11W.

Just Windows supports Triple Display. Mac OS cannot.

To use the HD output port, the host USB-C port from your device must support Display Port
