Detail US-100 Ultrasonic Sensor Module Temperature Compensation Distance Measuring

This US-100 ultrasonic module can realize 2 ~ 450cm of non-contact ranging function, has 2.4 ~ 5.5 V of wide voltage input range, static power consumption is less than 2mA. Their own temperature sensor will revise the ranging and has many communication modes like GPIO, serial ports etc, just like watchdog inside, very stable and reliable.

Description:

US-100 ultrasonic module distance measuring sensor
Working voltage: DC 2.4 V ~ 5.5 V
Static current: 2 mA
Working temperature: -20 ~ + 70
Output way: Level or UART jumper cap (choice)
Induction Angle: Less than 15
Detection range:2 cm to 450 cm
Detecting precision: 0.3 cm + 1%
UART mode serial configuration: Baud rate, starting a 9600 1, and stop bits one, who is black and white, eight data parity checking, no flow control.
Sensor size: Approx. 45 x 20 x 1.6mm
Hole diameter: Approx. 1mm

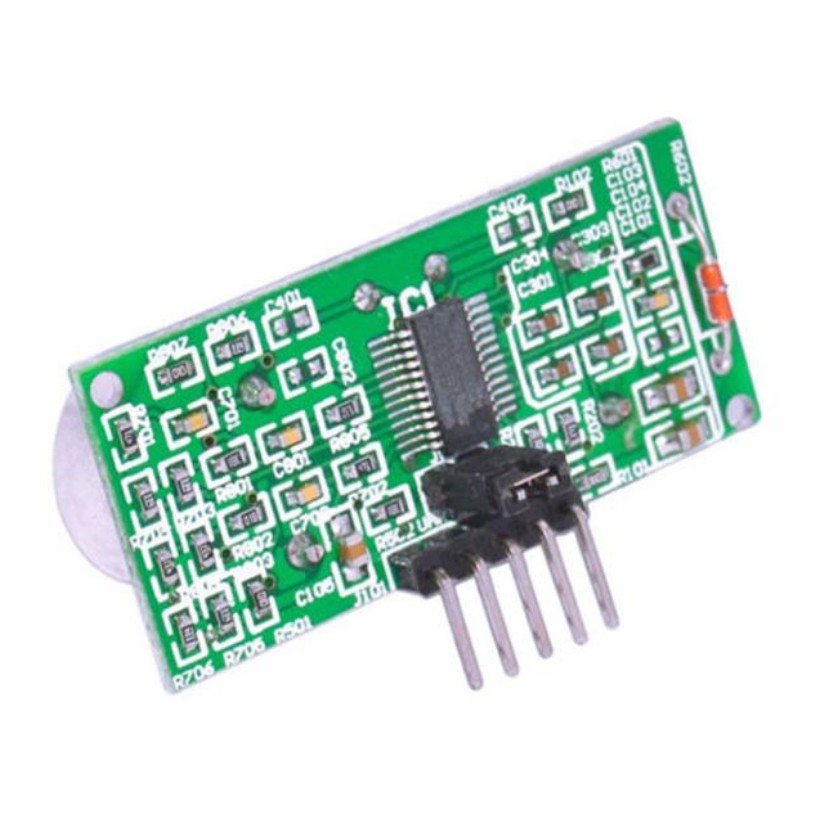

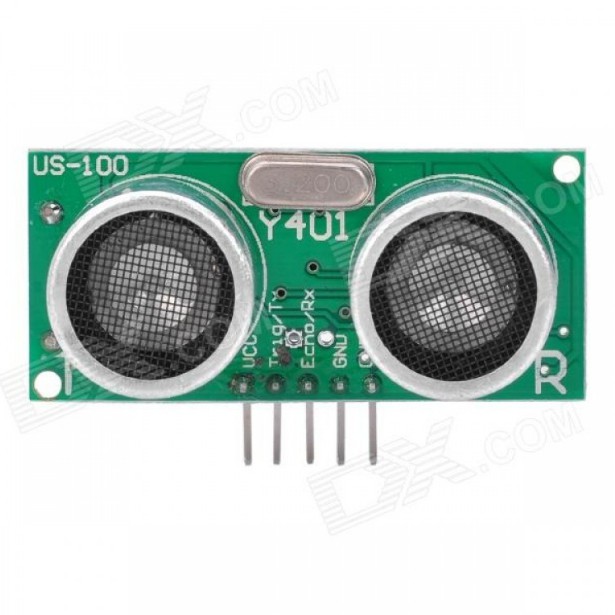

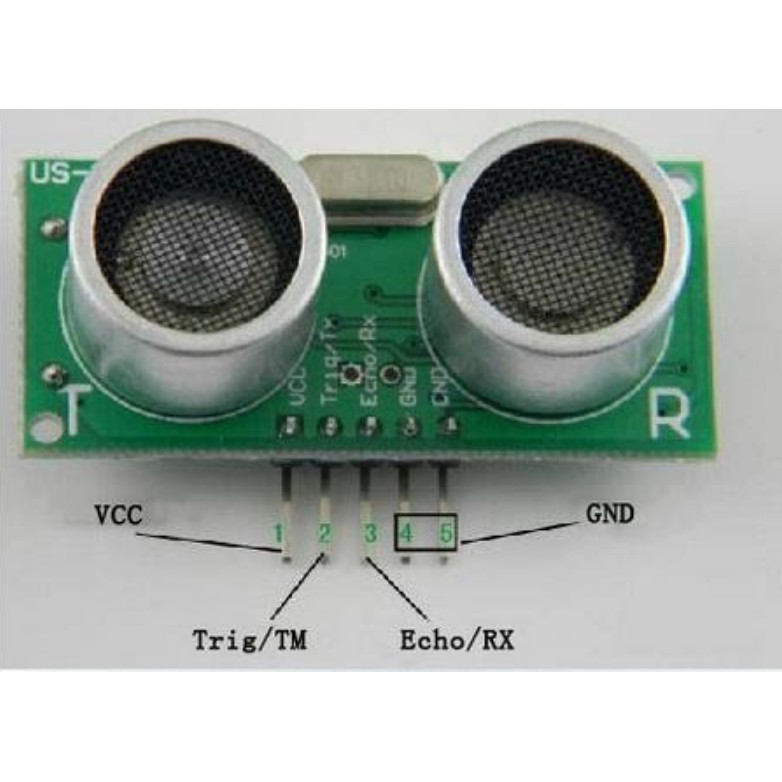

Gambar produk
