Detail US-015 Ultrasonic Module Distance Measuring Transducer Sensor DC 5V
This US-015 ultrasonic module can realize 2 ~ 700cm of non-contact ranging function, has 5 V of wide voltage input range, static power consumption is less than 3mA. Their own temperature sensor will revise the ranging and has many communication modes like GPIO, just like watchdog inside, very stable and reliable.US-015 ultrasonic module distance measuring sensor
Working voltage: DC 5 V
Static current: 3 mA
Working temperature: 0 ~ + 70
Output way: GPIO
Induction Angle: Less than 15
Detection range:2 cm to 400 cm
Detecting precision: 0.3 cm + 1%
Sensor size: Approx. 45 x 20 x 1.6mm
Hole diameter: Approx. 1mm
Package termasuk :
1 x US-015 Ultrasonic Module Distance Measuring Transducer Sensor DC 5V new

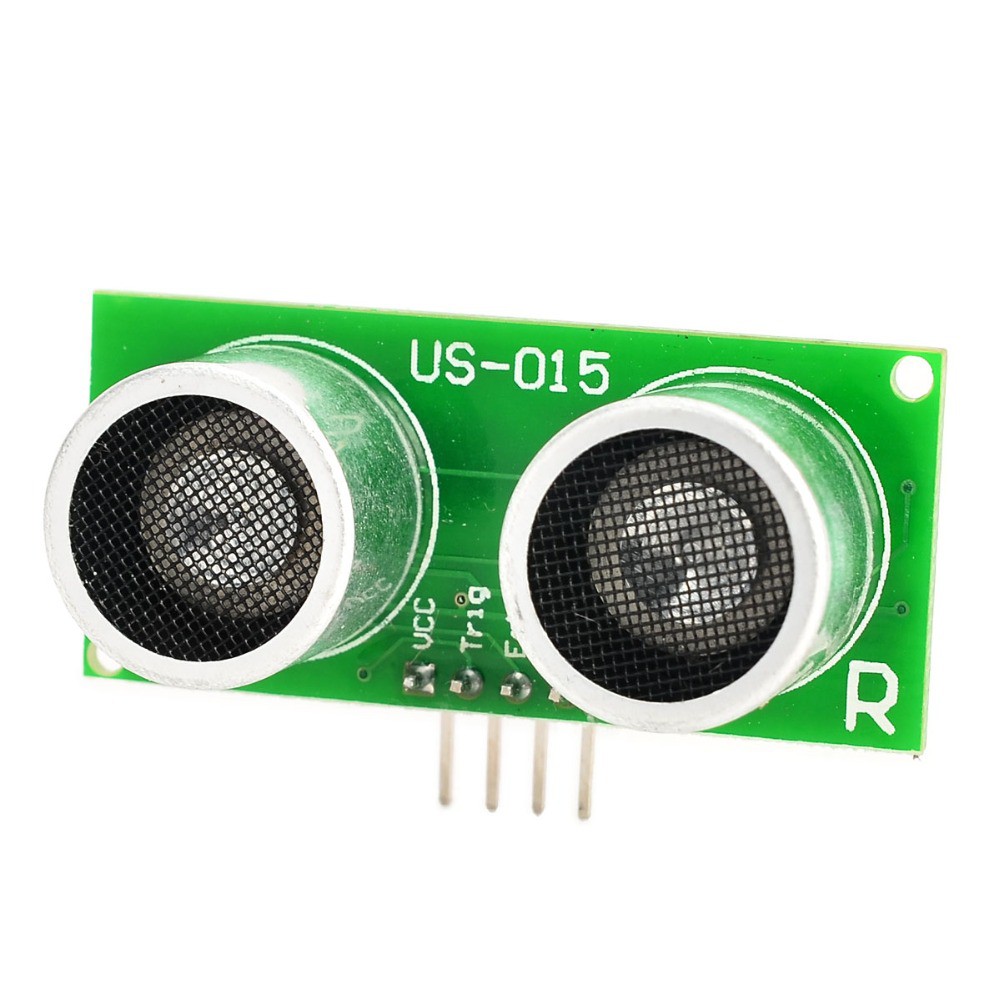

Gambar produk
