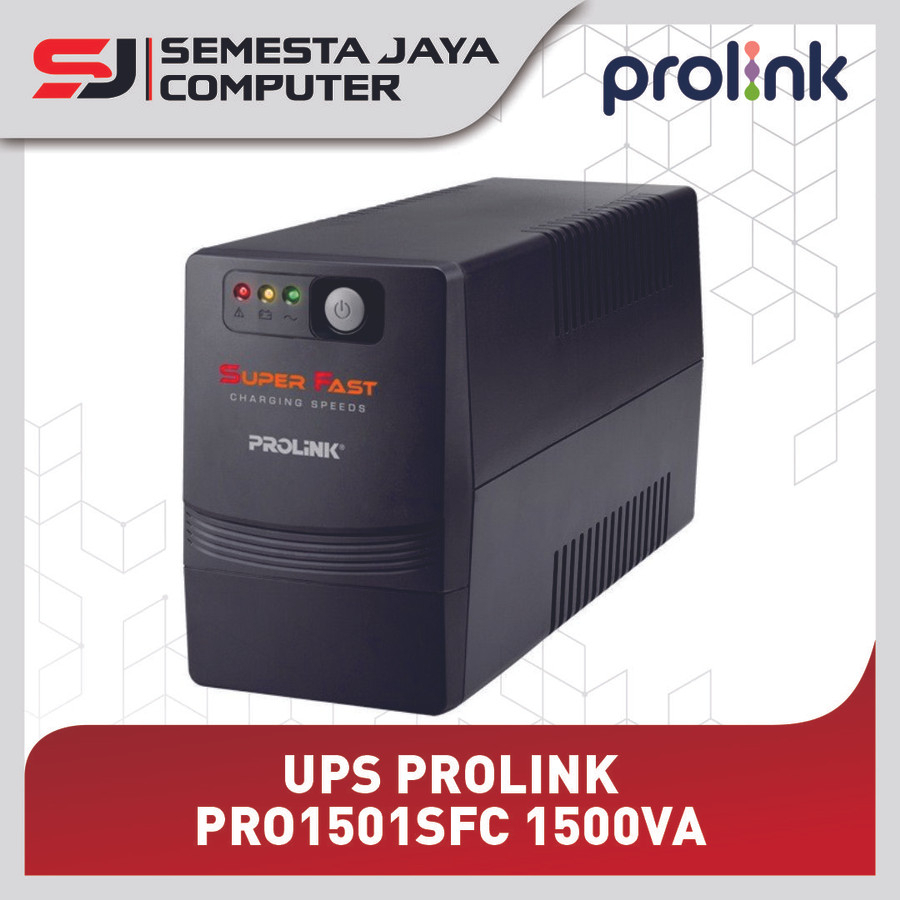

UPS Prolink PRO1501SFC/SFCU 1500VA

Detail UPS Prolink PRO1501SFC/SFCU 1500VA

Capacity : 1500VA
Input Voltage Range : 140 - 300V 5%
Frequency : 50Hz/60Hz (Auto-sensing)
Phase :Single + GND
Output Voltage Range : 230VAC +12% -14%
Battery Mode : 230VAC +10% -10%
Frequency :50Hz 1% (Battery Mode)

Waveform
- Simulated Sine Wave (Battery Mode)
- Sine Wave (AC Mode)
Transfer Time : 2ms typical
Battery Type : 12V/8.2AH - 2pcs
Backup Time: 8 - 30 minutes depending on load
Recharge Time: 2 - 4 hours recover to 90% capacity
Protection / Monitoring Short Circuit Protection
Yes (Line Mode and Battery Mode)
Surge Protection
Yes
Alarm
Audible & Visual
UPS Protection
Load auto sensing and abnormal protection

Overload Protection
- Line mode : 100 - 120% 5 mins change to fault mode >120% change to fault mode shutdown immediately
- Battery mode : 100 - 110% alarm & shutdown in 10 secs >120% shutdown immediately
Intelligent Battery Management
Prevent overcharging of battery
Protect battery and prolong battery life
Interface Interface*
RJ11
USB Connector*
AC fault, battery low, shutdown UPS
General Software
Support Windows 2000/ 2003/ XP/ Vista/ 2008/ 7, Linux, Unix, and Mac
Noise Level
40dB
Temperature
0C - 40C
Humidity
0 - 90%
Power Factor
Up to 0.7
Built in AVR
TRUE Full AVR (3 steps)
Physical Dimension (mm) D x W H
320*130*182mm (product only)
390*192*275mm (with box)
Net Weight (kgs)
8.6KG (product only)
9KG(with box)
