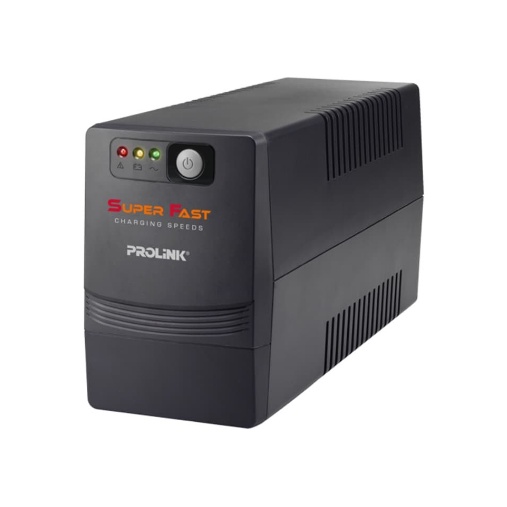

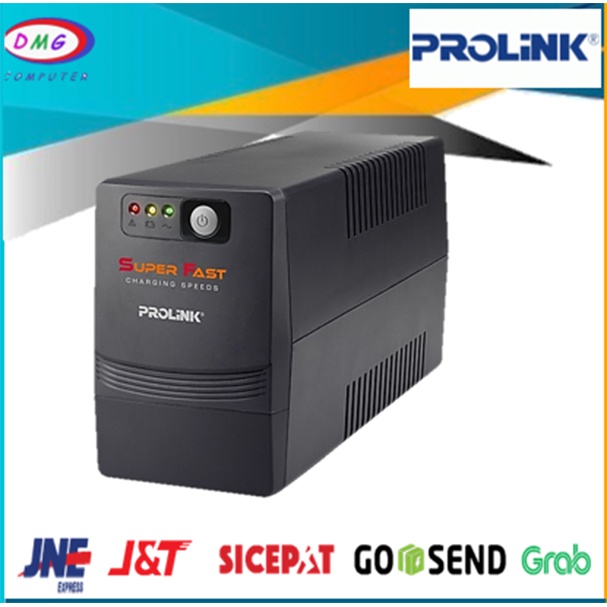

UPS Prolink PRO-1201 SFCU / PRO 1201 SFCU

Detail UPS Prolink PRO-1201 SFCU / PRO 1201 SFCU

UPS Prolink PRO-1201 SFCU / PRO 1201 SFCU / 1200 VA

Detail Spesifikasi :
Ouput Power Capacity : 1200VA / Up to 840 Watt
Output Power Voltage : 220V AC (rating), 220VAC 17~22% (Battery Mode) Freq: 50HZ 1Hz (Battery Mode)
Input Power Voltage : 140 ~ 285V, Frequency Range 40Hz - 70Hz, Phase : Single + GND
Transfer Time : 2ms Typical
Back-Up Time : 8~40 Minutes (depending on load), 90% Capacity after 8 hrs Charging Time
Battery Type : Maintenance Free-Sealed Lead-Acid Battery with Suspended Electrolyte (Leakproof)
Power Factor : Up to 0.7
Indicator LED : Normal Mode, Back-Up Mode, Charging Mode
Input Interface : 1x IEC 320 C13
Output Interface : 3x IEC 320 C13 (Battery), 1x Standard AC Outlet (Bypass Outlets)
Software Support : Available
Software Interface : COM/Serial Port
Protection Avaibility : Short Circuit Protection, Surge Protection, Overload & Temperature Protection, AVR
Other Features : Intelligent Battery Management, Short Circuit Software protection (CPU)
Dimension (WHD) : 44.5(W) x 19.5(H) x 30(D) mm
Weight : 13 Kg
Alnect Care Warranty : 30 Hari
Standard Warranty : 180 Hari (6 Bulan)
Others : Built-In Automatic Voltage Regulation (AVR)

Gambar produk
