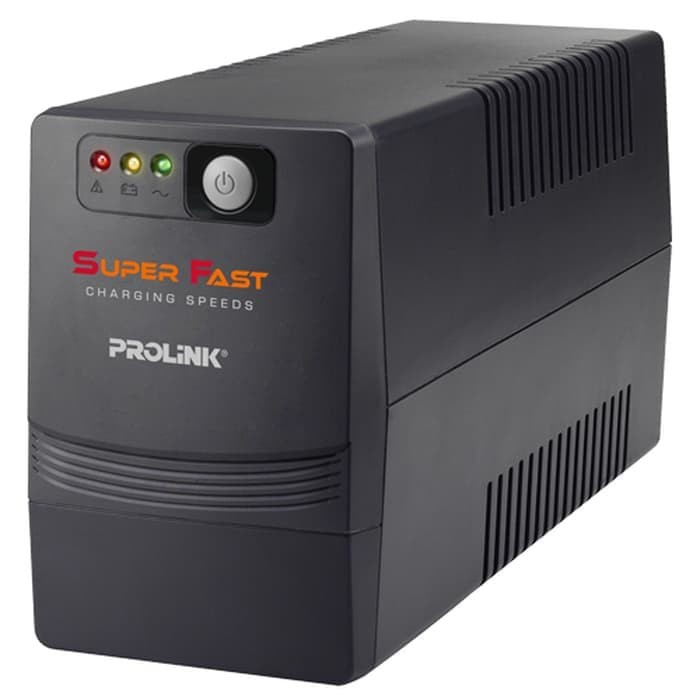

UPS Prolink Pro 1200 VA

Detail UPS Prolink Pro 1200 VA

Model 1201SFC
Capacity: 1200VA setara dengan 710 Watt
Input Voltage Range: 140 - 300V 5%
Frequency: 50Hz/60Hz (Auto-sensing)
Phase
Single + GND
Output Voltage Range: 230VAC 10%
Battery Mode: 230VAC 10%
Frequency: 50Hz 1% (Battery Mode)
Waveform
- Simulated Sine Wave (Battery Mode)
- Sine Wave (AC Mode)
Transfer Time: 2ms typical

Battery Type: 12V/8.2AH - 2pcs
Backup Time: 8 - 40 minutes depending on load
Recharge Time: 90% capacity after 4 - 6 hours
Protection / Monitoring Short Circuit Protection
- Line Mode - Fuse & Software Protection
- Battery Mode - Software Protection
Surge Protection: Yes
Alarm
Audible & Visual
UPS Protection
Load Auto Sensing and Abnormal Protection
Overload Protection
- Line Mode = 110 - 120% alarm for 5mins & shutdown
>120% shutdown immediately
- Battery Mode = 100 - 110% alarm & shutdown in 10 sec
>120% shutdown immediately
Intelligent Battery: Prevent overcharging of battery
Management: Protect battery and prolong battery life
Interface: RJ11
General Noise Level: 40dB
Temperature: 0C - 40C
Humidity: 0 - 90%
Power Factor: Up to 0.7
Built in AVR: TRUE 3-step AVR
Dimensions: 287 x 100 x 142mm (L x W x H)

Gambar produk
