UPS ICA ST 1023B

Detail UPS ICA ST 1023B

TECHNICAL SPECIFICATION :
- Model & Type : ST-1023B / OFFLINE Interactive Sinewave
- Capacity : 2000 VA / 1000 W
- AC Input Voltage : 160V ~ 250V (single-phase)
- AC Input Frequency : 50Hz 3%
- AC Input Protection : 10 A
- DC Input Voltage : 36 V
- DC Input (Internal Battery) : 3 x 12V/7Ah (SLA Battery)
- DC Input Protection : FUSE
- Charging Topology : Constant Voltage
- Charging Floating Voltage : 40.8 V
- INVERTER Output Wave Form : SINEWAVE
- INVERTER Output Distorsion : < 3% THD (Load 0-100%)
- INVERTER Output Topology : Pulse Width Modulation (PWM)
- INVERTER Output Voltage : 220V 2% (single-phase)
- INVERTER Output Frequency : 50Hz 1%
- INVERTER Output Efficiency : 80% (At Full Load)
- Transfer Time When AC Input Fail : 4ms
- Back Up Time : 10 min (At Nominal Load)
- BUZZER AC Input LOW/Fail : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL
- BUZZER AC Input HIGH : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL
- BUZZER Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL
- Operation Temperature : 0 - 40C
- Dimension (D x W x H) : 505 x 140 x 200 mm

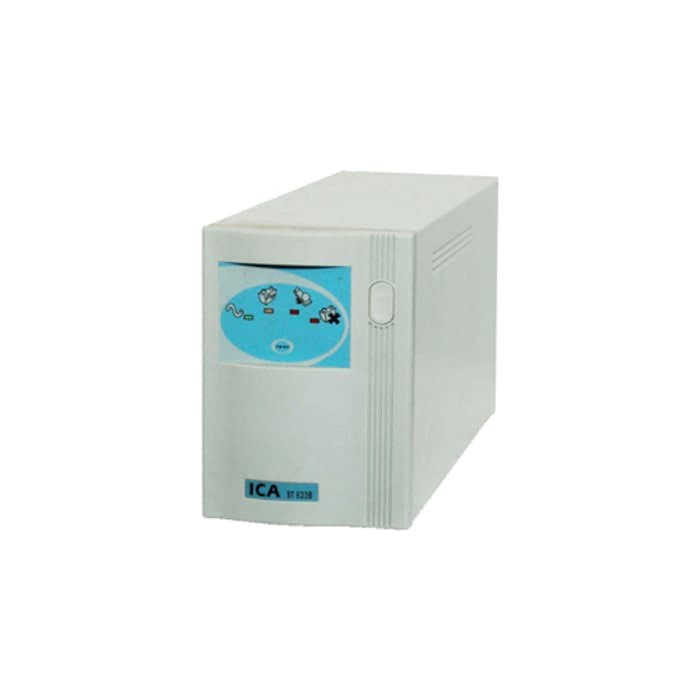

Gambar produk
