Ups Ica RN 3200C 3200VA 1000W Tampa Battery Dc 95V

Detail Ups Ica RN 3200C 3200VA 1000W Tampa Battery Dc 95V

TECHNICAL INFORMATION

Description : UPS RN3200C
Capacity : 3200 VA / 1600 W
AC Voltage : 160 - 250 V
AC Frequency : 50 ± 3 Hz
AC Protection : 15 A
DC Voltage : 96 V
DC INT Battery : 8 x 12 V, 7 Ah
DC Protection : FUSE
CHG Topology : SWITCHING REGULATION
CHG Floating Voltage : 108.8 V
INV Waveform : SINEWAVE
INV Distorsion : < 3% THD
INV Topology : PULSE WIDTH MODULATION (PWM)
INV Voltage : 220 ± 2% V
INV Frequency : 50 Hz
INV Efficiency : > 85%
Transfer Time AC Fail : 0 ms
Transfer Time STS : 2 ms INVERTER TO BYPASS
: ZERO CROSSING BYPASS TO INVERTER
Back Up Time : 10 min
Buzer AC In Abnormal : INTERMITTENT SOUND WITH 4 SECONDS INTERVAL
Buzer Battery Low : INTERMITTENT SOUND WITH 1 SECONDS INTERVAL
Opera Temp : 0 - 40 °C
Dimension (DxWxH) : 550 x 435 x 176 mm

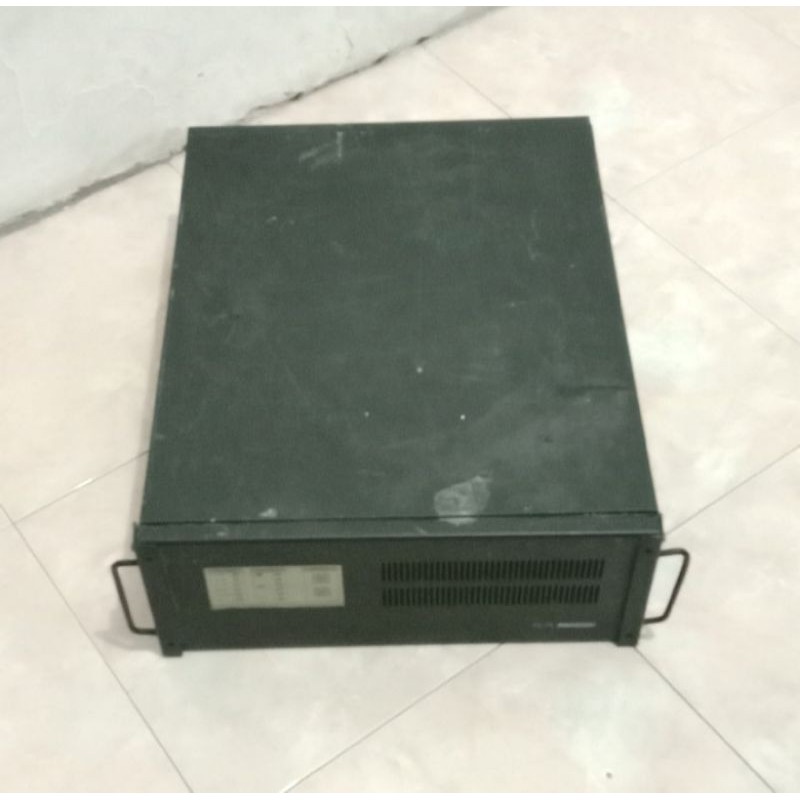

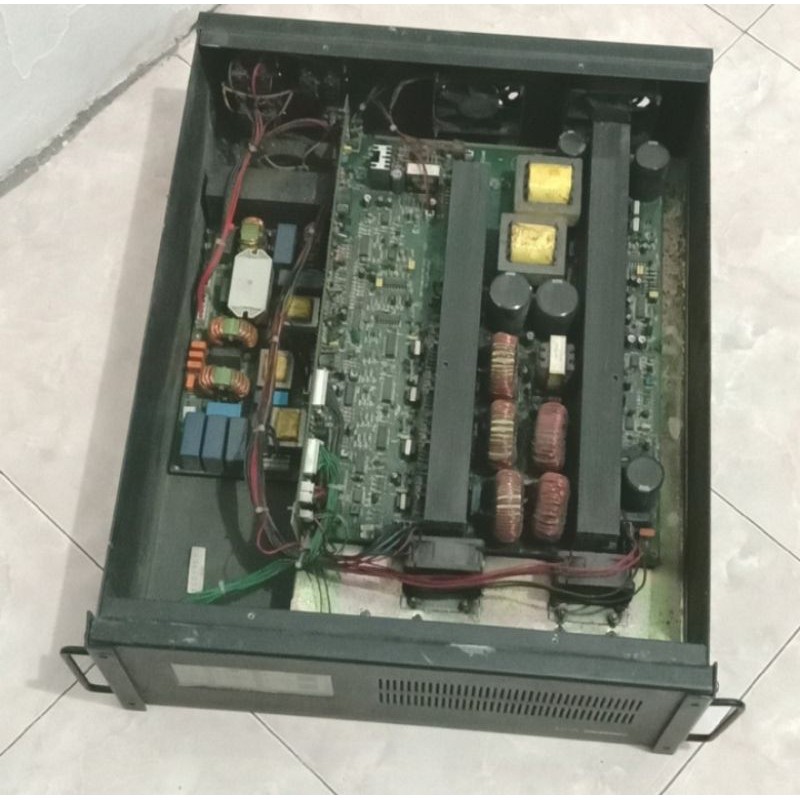

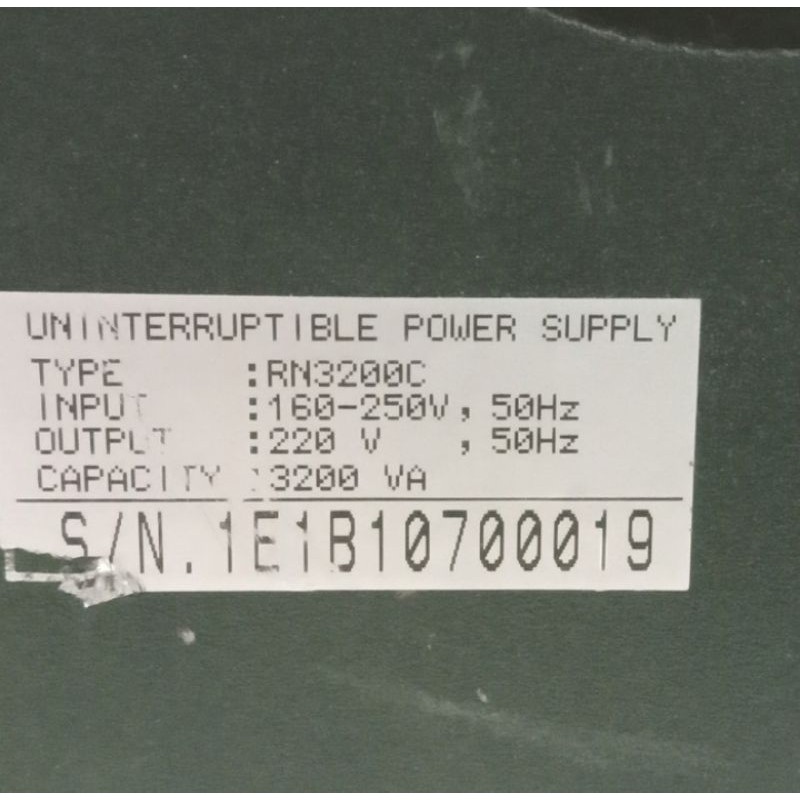

Gambar produk
