UNO R3 ATmega328P ATMEGA16U2 Development Board Compatible With USB Cable for UNO R3

Detail UNO R3 ATmega328P ATMEGA16U2 Development Board Compatible With USB Cable for UNO R3

Yuk buruan diorder !!!

Digital I/O Digital inputs/outputs were: 0~13
Analog I/O Analog input/output: 0~5; Support ISP download function
The input voltage: when connected to the computer USB without external power supply
External power supply 7 v to 12 v dc input voltage
Output voltage: 3.3 V and 5 V dc voltage output dc voltage output.
Open circuit diagram of the original design, the development of software interface for free download, can also be in accordance with the requirements and their modified, download the program is simple and convenient.
Can simply use sensors, all kinds of electronic components connection (such as: LED lights, buzzer, buttons, photo resistance, etc.), make all sorts of interesting work.
Microprocessor controller, using high-speed development interface and the environment are very simple and easy to understand, very suitable for beginners to learn.
Color: blue, black
Material: PCB board + metal

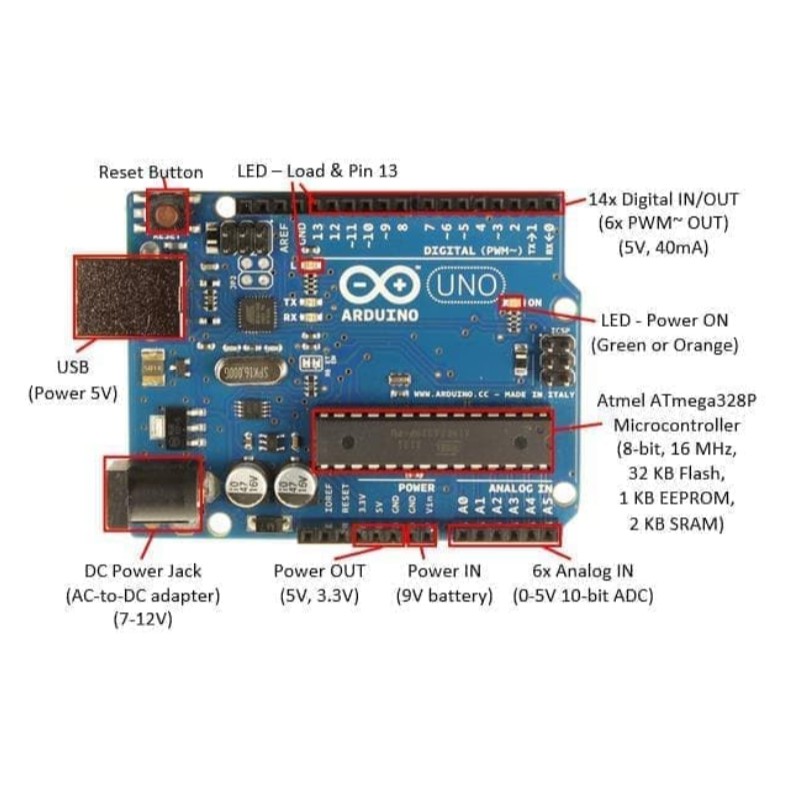

Spesifikasi
Microcontroller : ATmega328
Operating Voltage : 5V
Input Voltage (recommended) : 7-12V
Input Voltage (limits) : 6-20V
Digital I/O Pins : 14 (of which 6 provide PWM output)
Analog Input Pins : 6
DC Current per I/O Pin : 40 mA
DC Current for 3.3V Pin : 50 mA
Flash Memory : 32 KB (ATmega328) of which 0.5 KB used by bootloader
SRAM : 2 KB
EEPROM : 1 KB
Clock Speed : 16 MHz
Length : 68.6 mm
Width : 53.4 mm

Menggunakan serial com ic ATMEGA16U22
mainboard menggunakan MEGA328P
versi UNO R3
warna kabel : biru

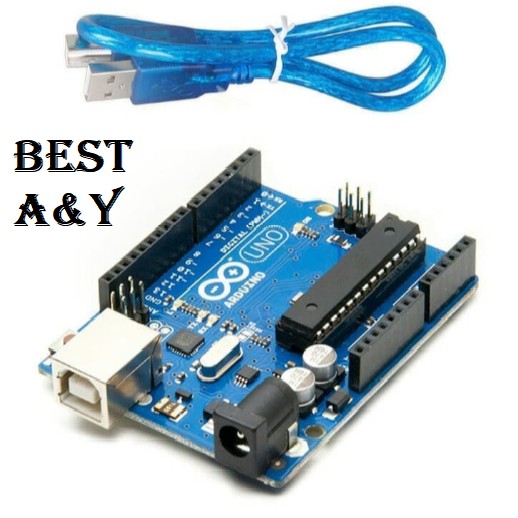

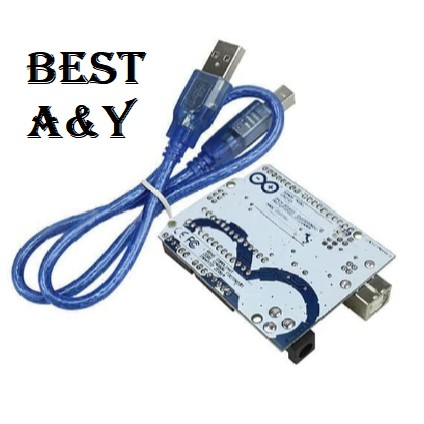

Gambar produk
