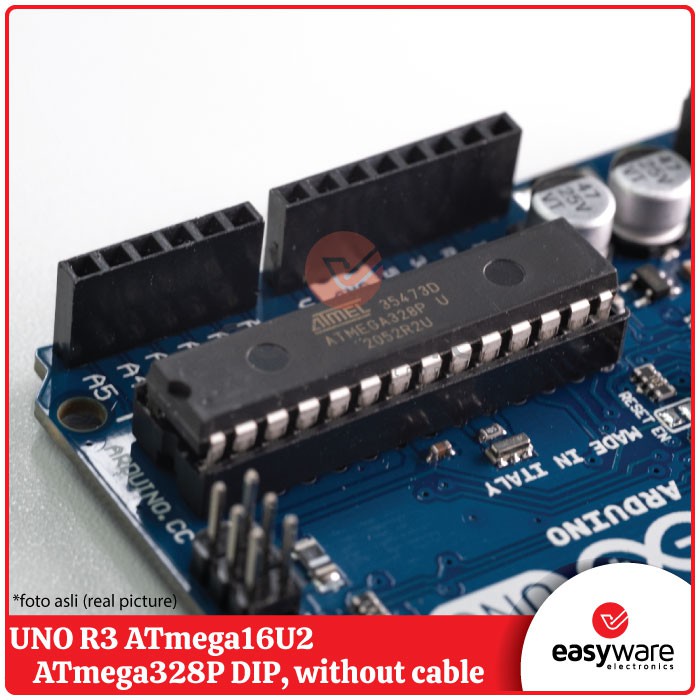

Detail UNO R3 ATmega16U2 ATmega328P DIP like Arduino Uno R3 DIP without cable
Hi #RekanEasyWare ... EasyWare Part#: EP000082
The Arduino Uno R3 is a microcontroller board based on the ATmega328 (datasheet). It has 14 digital input/output pins (of which 6 can be used as PWM outputs); 6 analog inputs, a 16 MHz ceramic resonator, a USB connection, a power jack, an ICSP header, and a reset button. It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with an AC-to-DC adapter or battery to get started.
Spesifications : - Model Type: UNO Rev R3 - Microcontroller Chip: ATmega328 - Operating Voltage (VDC): 5 - Input Voltage(Recommended): 7-12V - Input Voltage (limit): 6-20V - Analog I/O Pins: 6 - Digital I/O Pins: 14 (of which 6 provide PWM output) - PWM Digital I/O Pins: 6 - DC Current per I/O Pin (mA): 40 - DC Current for 3.3V Pin (mA): 50 - Clock Speed: 16 MHz - SRAM (KB): 2 - EEPROM: 1 KB (ATmega328) - Flash Memory: 32 KB - On Board LEDs: On/Off, L (PIN 13), TX, RX.
Package : - 1x UNO R3 ATmega16U2, ATmega328P DIP
*deskripsi diperoleh dari berbagai sumber di internet
