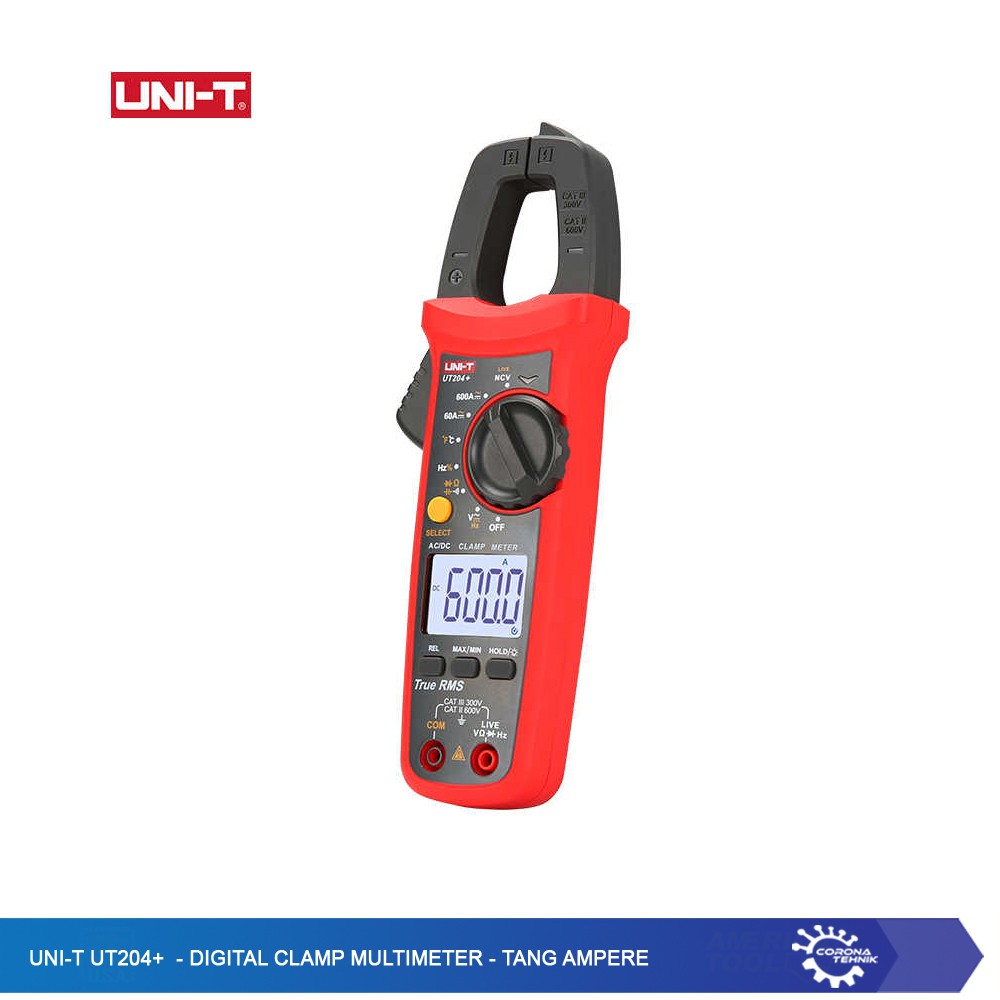

UNI-T UT204+ - Digital Clamp Multimeter - Tang Ampere

Detail UNI-T UT204+ - Digital Clamp Multimeter - Tang Ampere

UNI-T UT204+ - Digital Clamp Multimeter - Tang Ampere

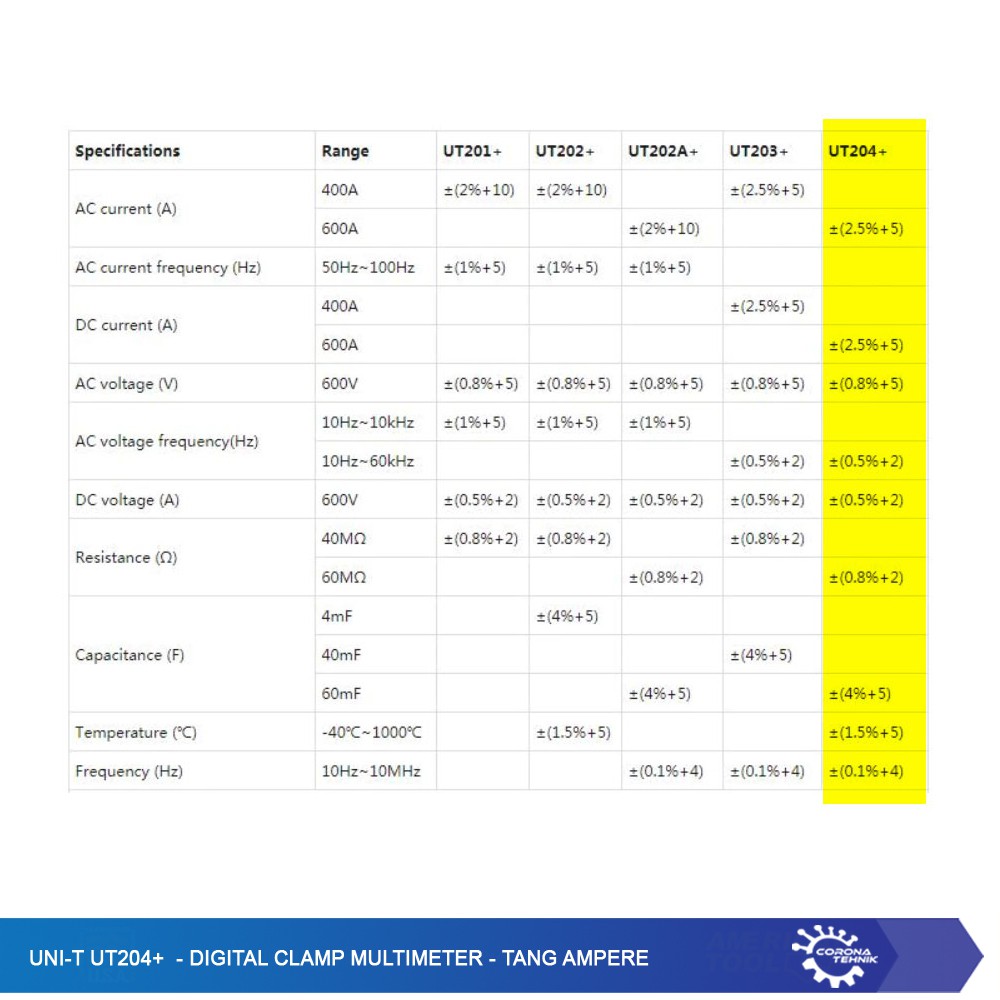

Specifications Range UT204+
AC current (A) 400A 　
600A ±(2.5%+5)
AC current frequency (Hz) 50Hz~100Hz 　
DC current (A) 400A 　
600A ±(2.5%+5)
AC voltage (V) 600V ±(0.8%+5)
AC voltage frequency(Hz) 10Hz~10kHz 　
10Hz~60kHz ±(0.5%+2)
DC voltage (A) 600V ±(0.5%+2)
Resistance (Ω) 40MΩ 　
60MΩ ±(0.8%+2)
Capacitance (F) 4mF 　
40mF 　
60mF ±(4%+5)
Temperature (℃) -40℃~1000℃ ±(1.5%+5)
Frequency (Hz) 10Hz~10MHz ±(0.1%+4)
Features
Display count 　 6000
Auto range 　 √
Jaw opening 　 28mm
True RMS 　 √
NCV 　 √
Live wire test 　 √
Continuity test 　 √
Diode 　 √
MAX/MIN 　 √
Relative mode 　 √
Zero mode 　 √
Data hold 　 √
Low battery indication 　 √
Auto power off 　 √
General Characterisitics
Power 1.5V battery (R03) x 2
Display 37mm x 25mm
Product color Red and grey
Product net weight 235g
Product size 215mm x 63mm x 36mm
Standard accessories Batteries, test leads, Themocouple
Standard individual packing Gift box, Carring bag, English manual
