UNI-T Coating Thickness Gauge Alat Ukur Ketebalan Cat UT343D

Detail UNI-T Coating Thickness Gauge Alat Ukur Ketebalan Cat UT343D

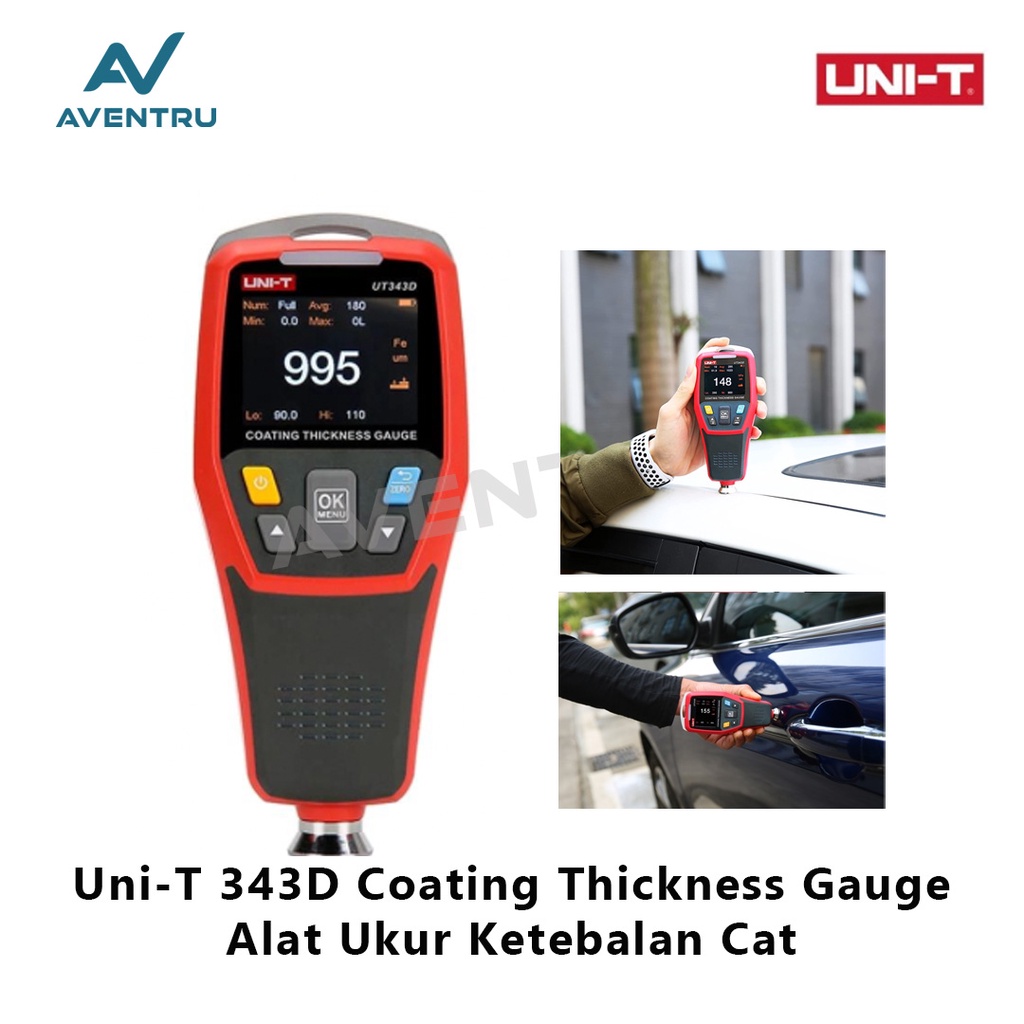

Coating thickness Gauge UNI-T Type UT343D

Fitur :
Identifikasi otomatis subtract metal ferrous dan non ferrous
Sensor menggunakan teknologi penjepit Berlian , yang akurat, tahan and dan stabil.

Features:
- Automatic identification of iron and non-ferrous substrates
- The sensor uses diamond clamping technology, which is accurate, wear-resistant and stable.
- Single point and two point calibration to ensure measurement accuracy
- Single point, multi-point quick judgment and prompt
- Red, green and yellow warning lights
- The screen display content is automatically rotated
- 500 sets of storage data and USB data transmission

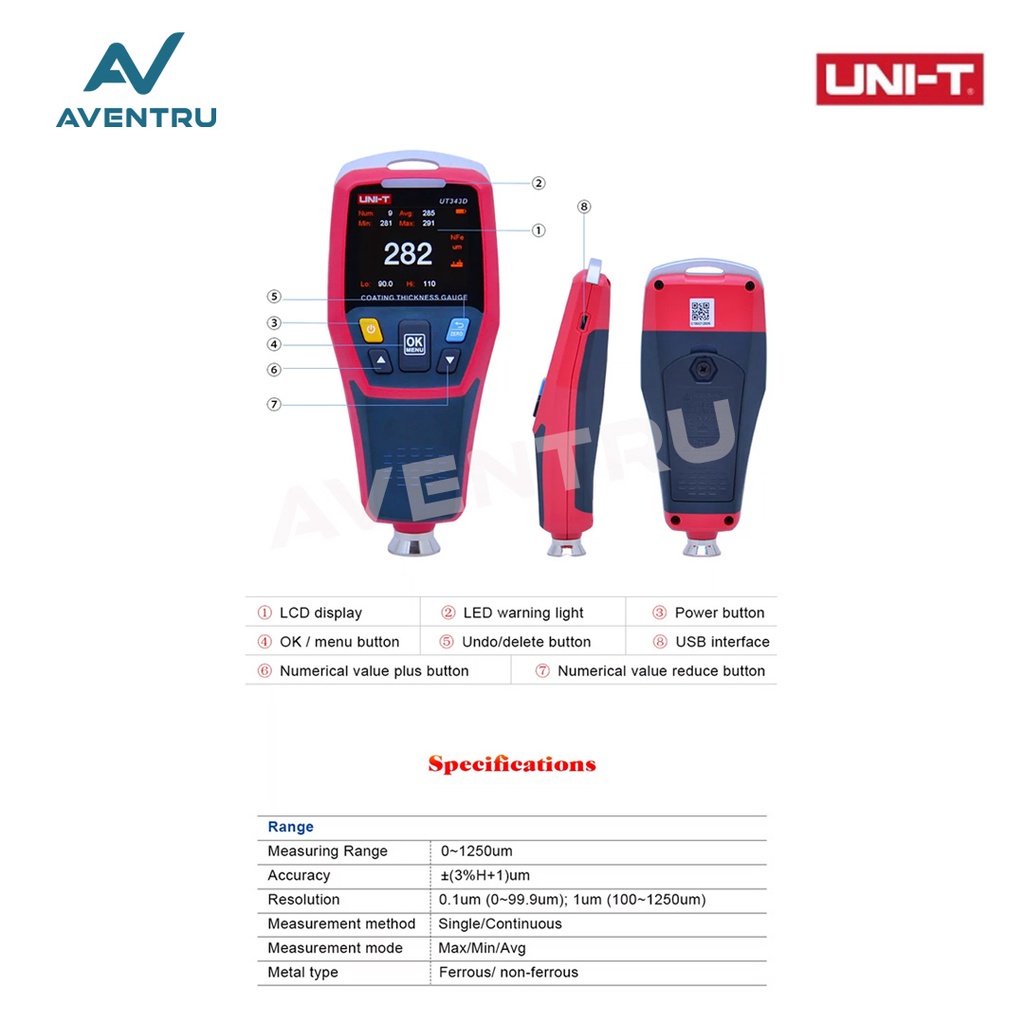

Specifications :
-Merk : UNI-T
-Type : UT343D
- Display screen : 2inch Layar LCD TFT (Resolution : 320*240 pixels)
- Measurement Range : 0-1250micron / 0-49.2mil
- Resolution : 0~99.9um(0.1um); 100~1250um(1um)
- Acurracy : ±(1+3%H)
- Auto rotatable screen : automatically rotates the display of the screen
- Unit : micron(um), mil
- Minimum convex radius of curvature : 5mm
- Minimum concave radius of curvature : 50mm
- Minimum measured area diameter : 20mm
- Minimum substrate thickness : 0.5mm
- Measurement method : single /continuous
- Statistics measurement : max/min/average value
- Data storage : 500 group
- Backligh brightness : 5 level
- Auto power of : 5 minutes
- Working Environment : 0-40°C
- Storage environment : - 20~60°C
- Baterry : 2x AA 1.5V (sudah termasuk)

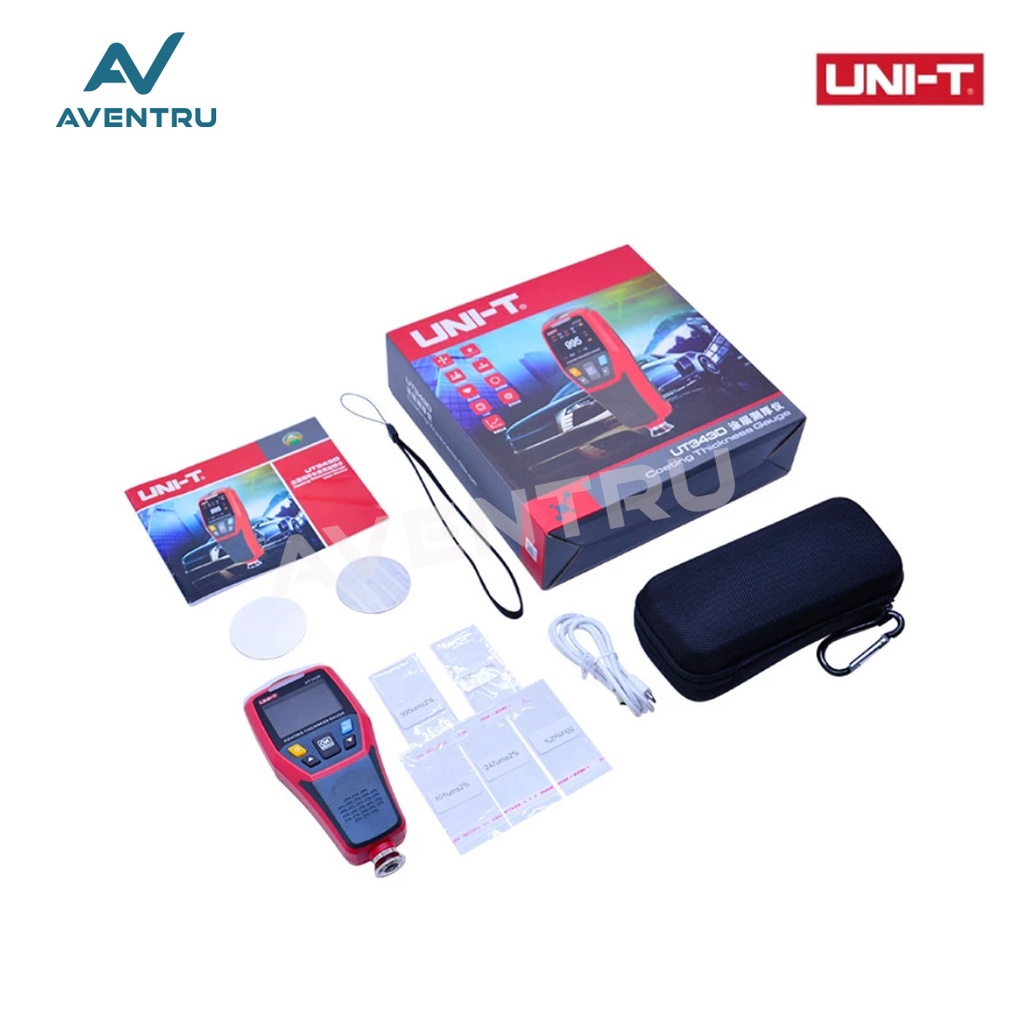

Packaging list :
1x Coating thickness Gauge UNI-T UT343D
1x Cable USB
1x Lanyard
1x Carring pouch
1x Metal calibration Fe
1x Metal Calibration NFe
5 x plastic calibration
1x Storage Box
1x User manual (English language )

Gambar produk
