ULTRASONIC SCALER LED BUILD - IN

Detail ULTRASONIC SCALER LED BUILD - IN

Features:
Main unit input ~24V 1.3A
Output power3W20W
Frequency28kHz3kHz
Water pressure 0.01MPa~0.5MPa
Dimension125mm72mm36mm

Key Features:
1. Detachable handpiece with light, autoclavable.
2. Automatic frequency tracking.
3. Scaling, endo function.
4. Accurate feedback control and constant power output, ensure a more comfortable feeling to patients.

Technical Details:

1. Power input:
Without transformer 24V~ 50Hz/60Hz 1.3A
2. Output primary tip Vibration excursion: ≤100μm
3. Output half-excursion force: <2N
4. Output tip Vibration frequency: 28kHz±3kHz
5. Output power: 3W to 20W
6. Water pressure: 0.01MPa to 0.5MPa
7. Weight of main unit: 0.2kg
8. Weight of transformer: 1kg (optional)
9. Dimensions：74mm×56mm×38mm
10. Operating mode: Continuous operation
11. Type of protection against electric shock: Class II
12. Degree of protection against electric shock: Type BF applied part
13. Degree of protection against harmful ingress of water: Ordinary equipment (IPX0)


14. Degree of safety of application in the presence of a flammable



anesthetic mixture with air or with oxygen or nitrous oxide:


Equipment can not be used in the presence of a flammable



anesthetic mixture with air or with oxygen or nitrous oxide

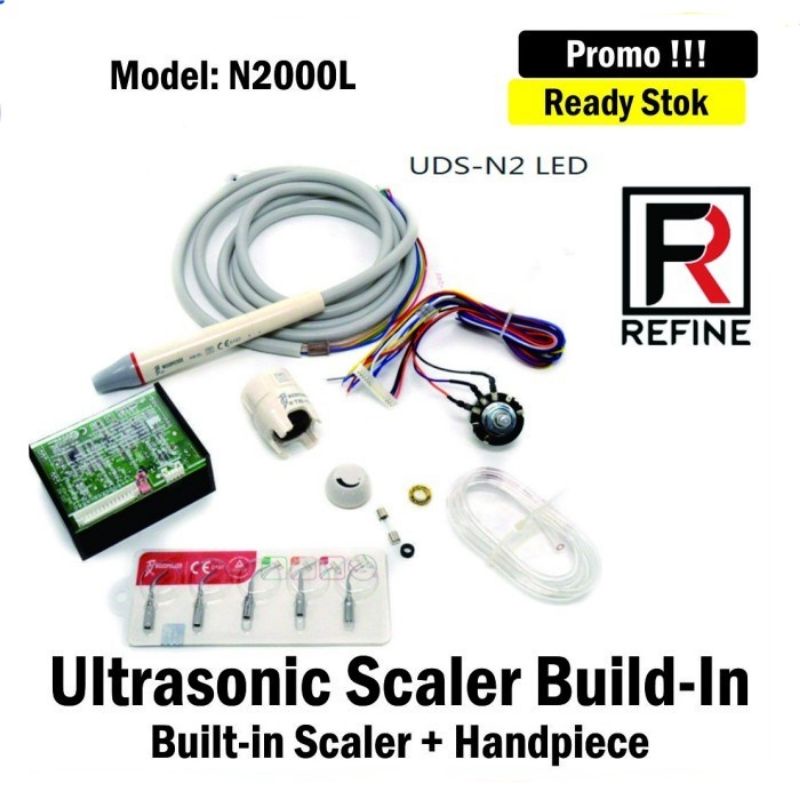

Packing List:

1* Main unit


1* Detachable handpiece


1* Cable


1* Scaling tip G1 (for Supraginggival Scaling)


1* Scaling tip G2 (for Supraginggival Scaling)


1* Scaling tip G4 (for Supraginggival Scaling)


1* Scaling tip P1 (for Periodontal scaling)



1* Torque wrench


1* Water pipe


1* Potentiometer knob


1* Potentiometer and electronic pipe


1* Cutting sleeve (for handpiece)


6* Waterproof O ring


3* Handpiece decorative ring


1* LED lamp


1* Instruction of LED lamp replacement


1* Two-sided adhensive foam


3* Nylon cable tie


1* Instruction manual


1* Quality certification
