Ultrasonic Flow Meter TUF2000M Liquid Flowmeter Ultrasonic TUF-2000M 50-700mm

Detail Ultrasonic Flow Meter TUF2000M Liquid Flowmeter Ultrasonic TUF-2000M 50-700mm

Video perkenalan produk Ultrasonic Flow Meter TUF2000M Liquid Flowmeter Ultrasonic TUF-2000M 50-700mm. Sumber: Shopee.

Liquid Flow Meter adalah alat untuk mengukur laju aliran atau jumlah suatu fluida yang bergerak mengalir
Jenis cairan yang diukur oleh flow meter bisa berbagai macam cairan seperti air minum, air limbah, air lumpur, susu, cairan kimia, air gula, alkohol, oli dll

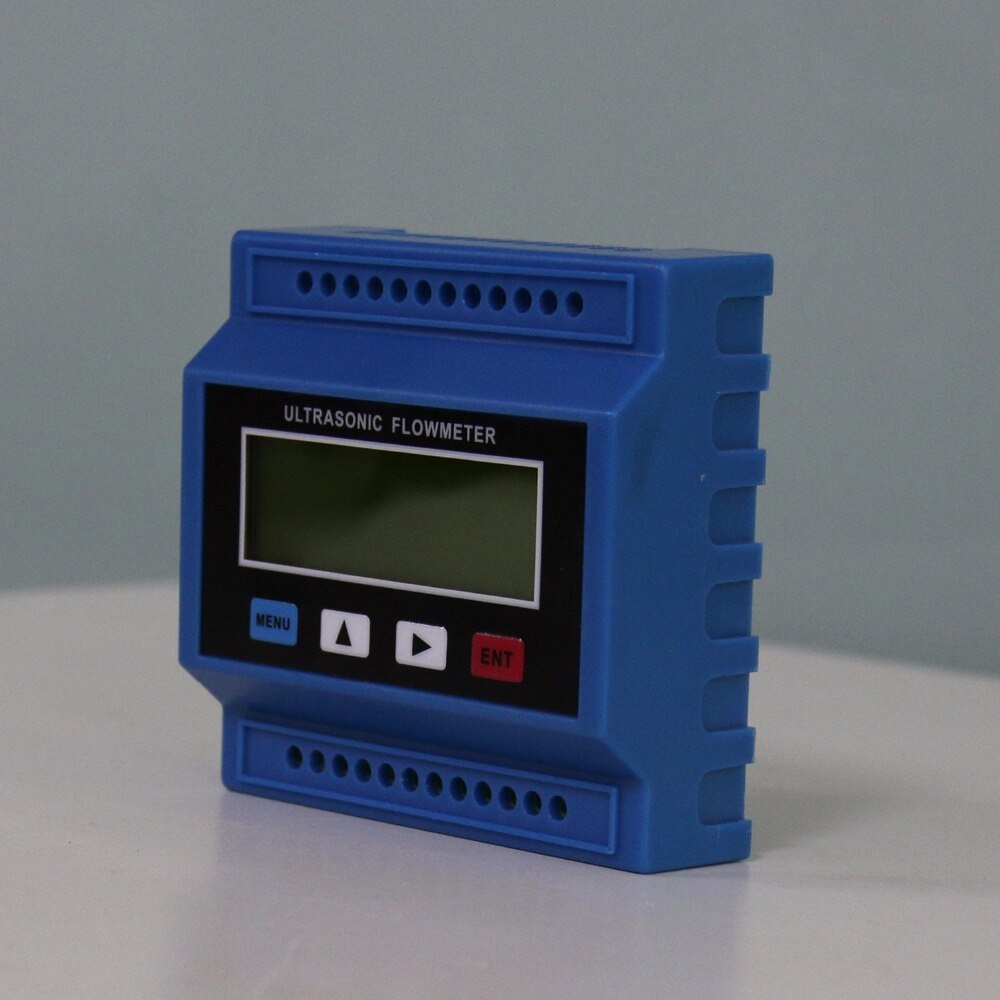

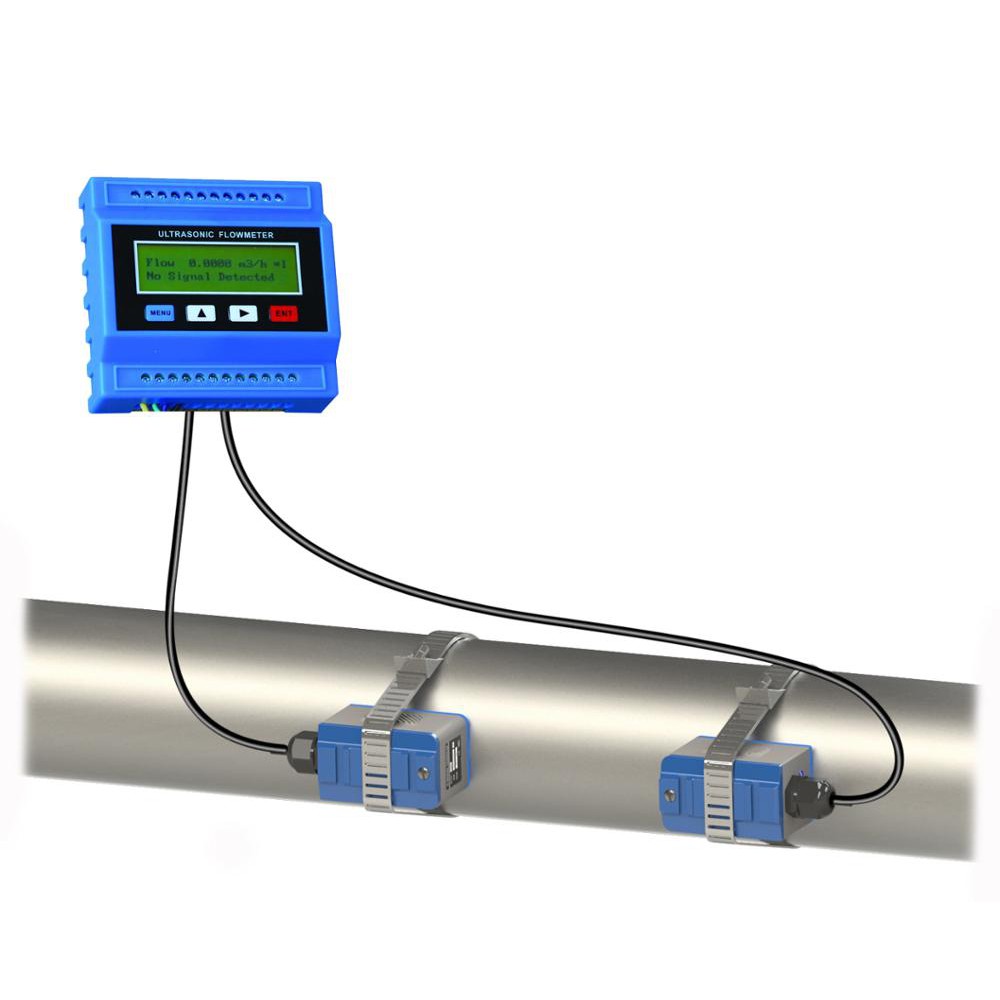

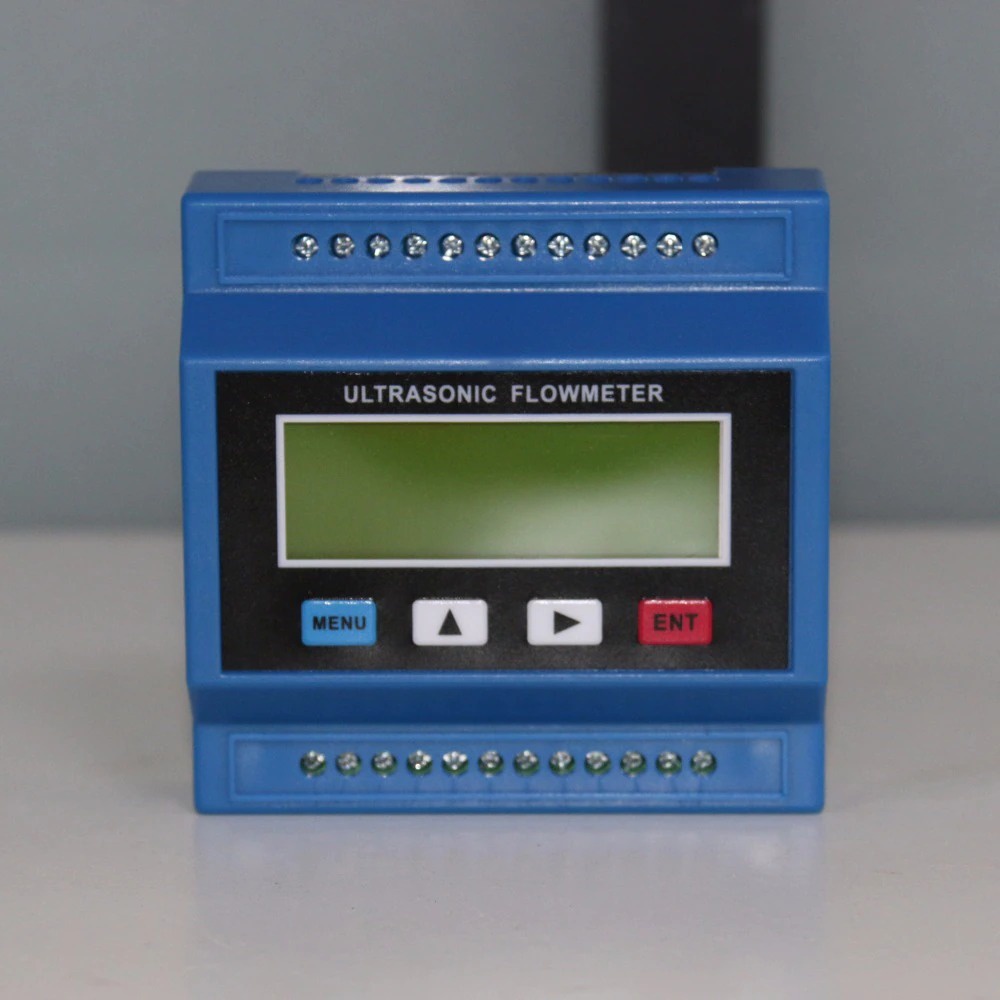

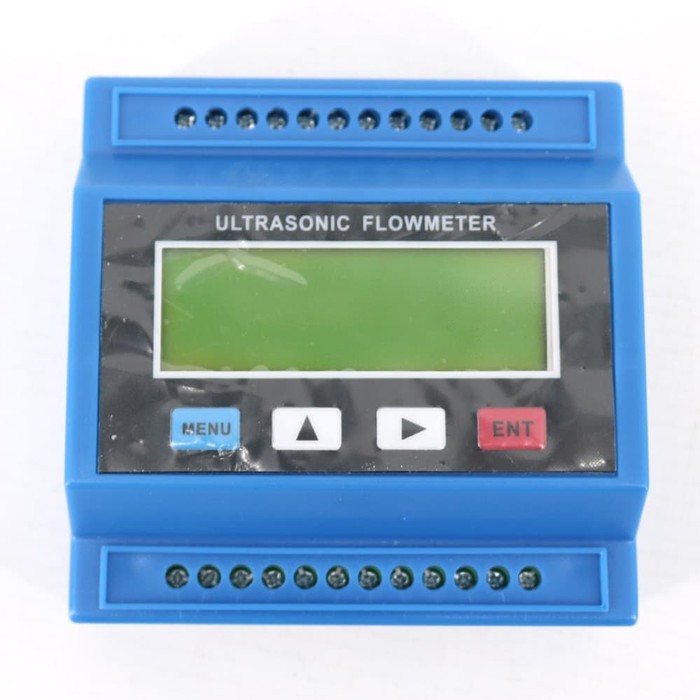

Ultrasonic Flow Meter TUF2000M mengukur laju aliran cairan dengan metode ultrasonik.

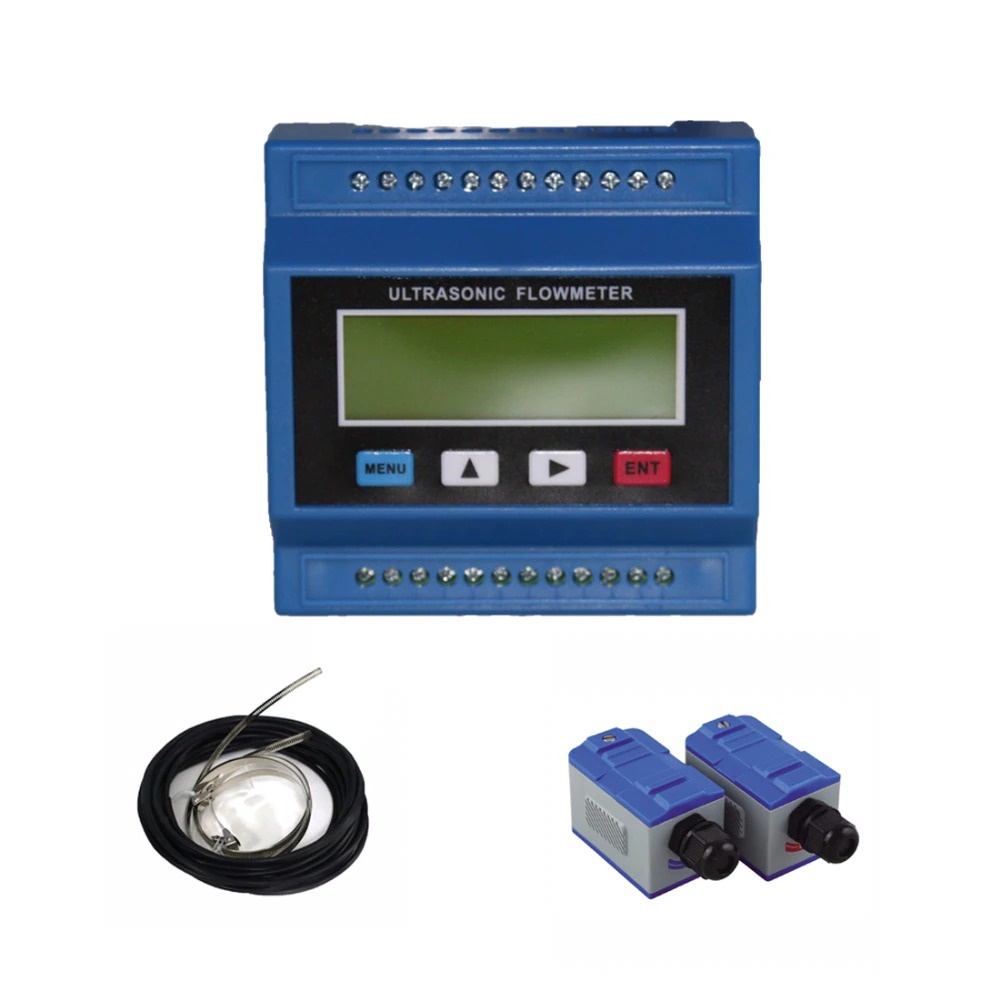

Dilengkapi dengan transducer TM-1 - 50mm-700mm

Feature:
*Accuracy:"+/-1%
*Velocity range:0~+/-10m/s, Bi-directional *measurement
*Pipe size:DN50~DN700mm
*Temperature:-30~90C
*Type of liquid:Single liquid can transmit ultrasound, such as water, sea water, sewage, oil, etc.
*Pipe material:Steel, stainless steel, cast iron, copper, PVC, aluminmum, glass steel, etc. Liner is allowed.
Linearity: better than 0.5%
Repeatability: better than 0.2%
Accuracy: better than +-1%.
Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
Far transmission distance: Connecting module and secondary meter through RS-485 interface, transmission distance up to 1000m

Powerful Functions:
Current output: 4-20mA, one channel, can be used for flow/heat transmitter
OCT output: two channels, can be used for flow /heat switch
Current input: 4-20mA, three channels, can be used for data collector
Tri-wire resistance signal input (PT100): two channels, can be used for calorimeter

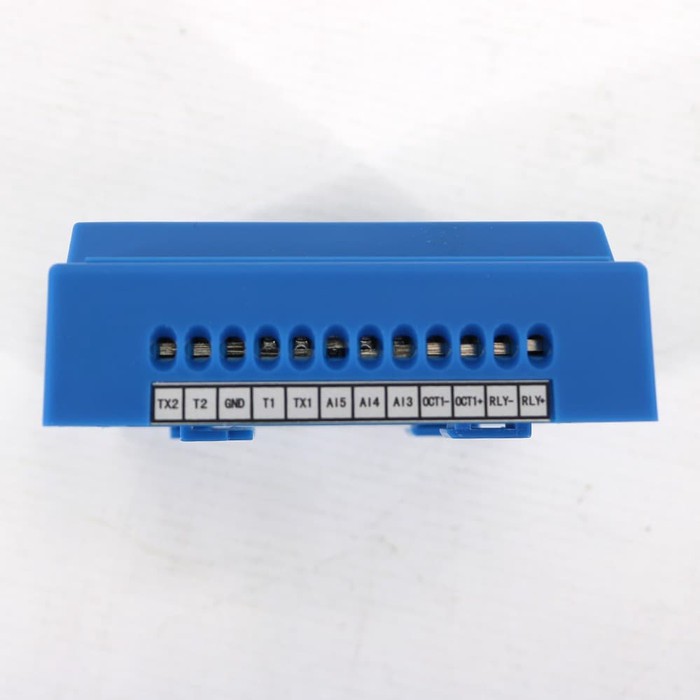

Signal output:
*1 way 4-20mA output
*1 way OCT pulse output
*1 way Relay output

Signal input:
*3 way 4-20mA input, achieve to heat measurement by connecting PT100 platinum resistor.
*Interface:RS485, support MODBUS
*Power supply:DC8~36V or AC85~264V

**NOTE**

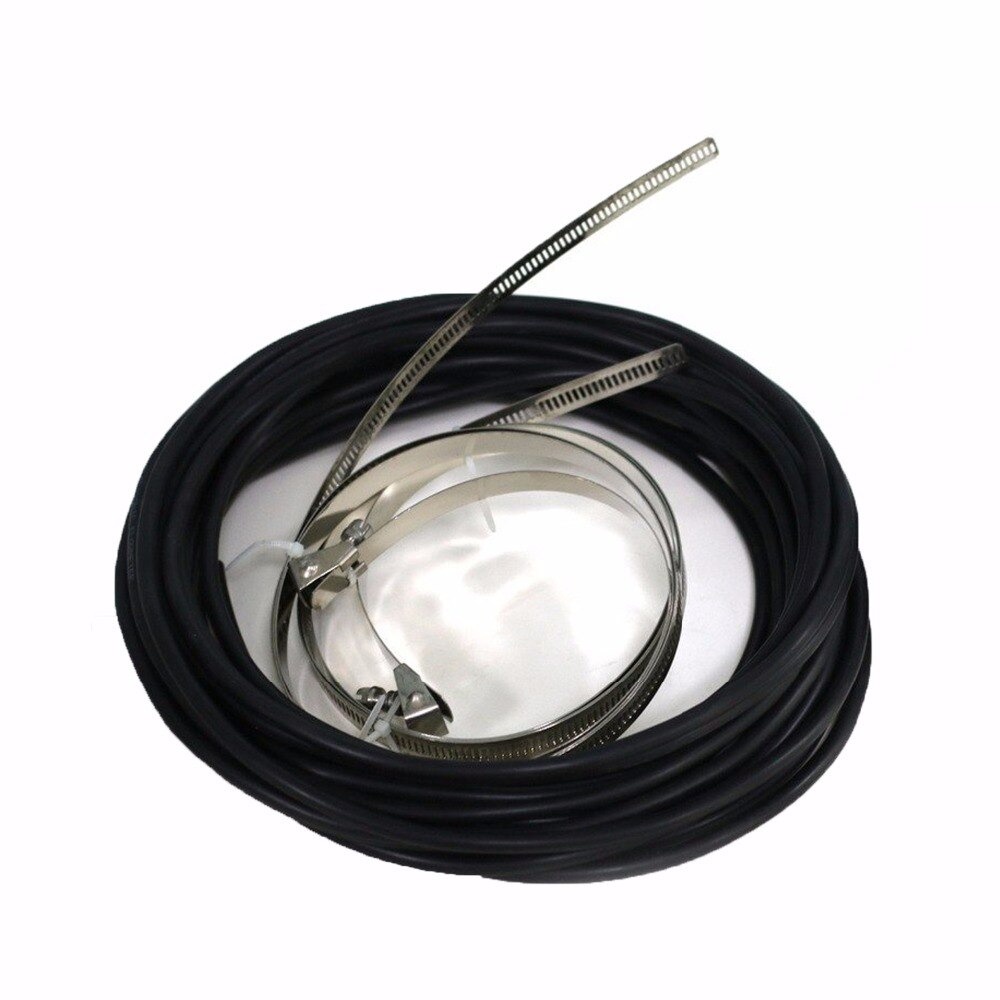

Ketrangan kelengkapan ada dislide gambar terakhir + user manual

Gambar produk
