ULN2003 DIP-16 ULN2003APG DARLINGTON TRANSISTOR ARRAY IC

Detail ULN2003 DIP-16 ULN2003APG DARLINGTON TRANSISTOR ARRAY IC

P/N : ICS-0015

==========

ULN2003, IC transistor array 500mA yang sering digunakan untuk driver motor stepper atau sebagai switch amplifier. Terdapat 7 channel transistor NPN yang sudah dilengkapi diode freewheeling sehingga aman untuk men drive device yang bersifat induktif seperti motor DC.

Silahkan di ORDER gan !!! :D

DESCRIPTION
The ULN2003A is high-voltage high-current Darlington transistor arrays. Each consists of seven npn Darlington pairs that feature high-voltage outputs with common-cathode clamp diodes for switching inductive loads. The collector-current rating of a single Darlington pair is 500 mA.

The Darlington pairs can be paralleled for higher current capability. Applications include relay drivers, hammer drivers, lamp drivers, display drivers (LED and gas discharge), line drivers, and logic buffers. For 100-V (otherwise interchangeable) versions of the ULN2003A and ULN2004A, see the SN75468 and SN75469, respectively.

The ULN2003A and ULQ2003A have a 2.7-k series base resistor for each Darlington pair for operation directly with TTL or 5-V CMOS devices. The ULN2004A and ULQ2004A have a 10.5-k series base resistor to allow operation directly from CMOS devices that use supply voltages of 6 V to 15 V. The required input current of the ULN/ULQ2004A is below that of the ULN/ULQ2003A, and the required voltage is less than that required by the ULN2002A.


FEATURES
- 500-mA-Rated Collector Current (Single Output)
- High-Voltage Outputs: 50 V
- Output Clamp Diodes
- Inputs Compatible With Various Types of Logic
- Relay-Driver Applications
Mohon maaf Order yg kami terima minimal Rp.5.000 diluar ongkir, di bawah Rp.5.000 tidak akan kami proses, order diatas Rp.5.000 akan kami proses.

Paket : 1x ULN2003 DIP-16 DARLINGTON TRANSISTOR ARRAY IC

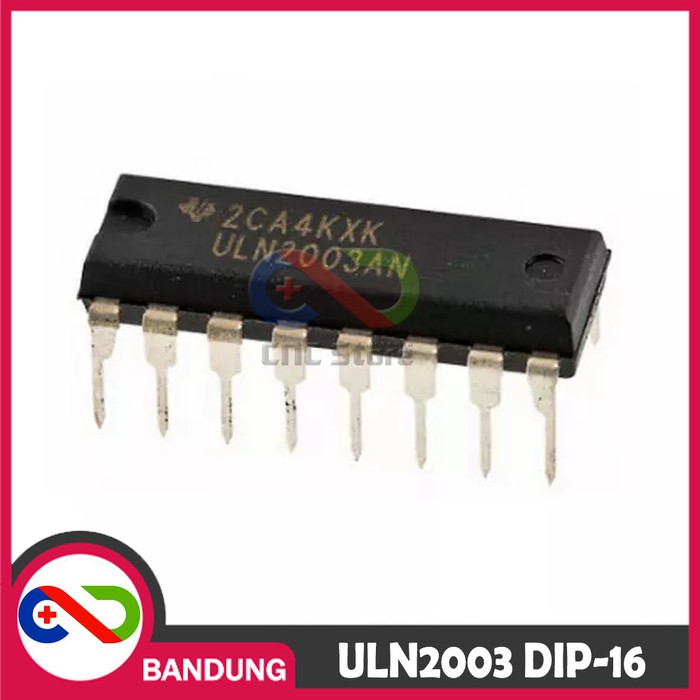

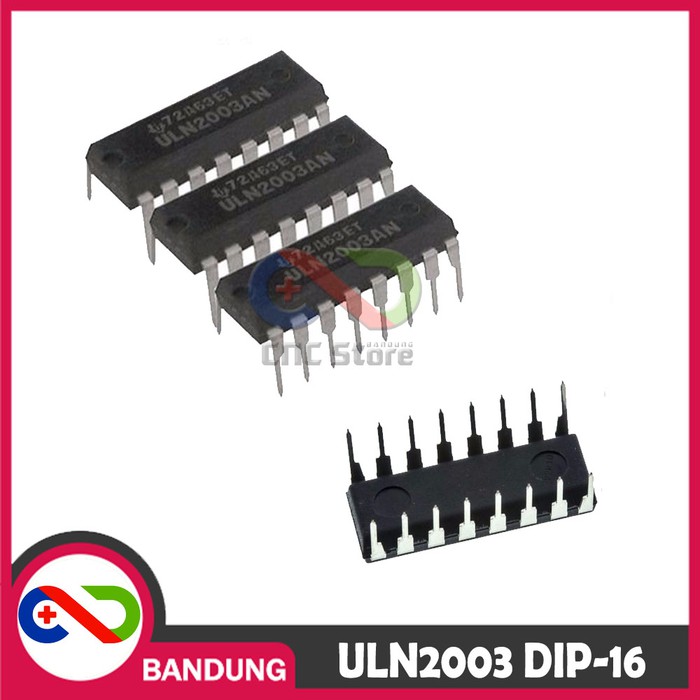

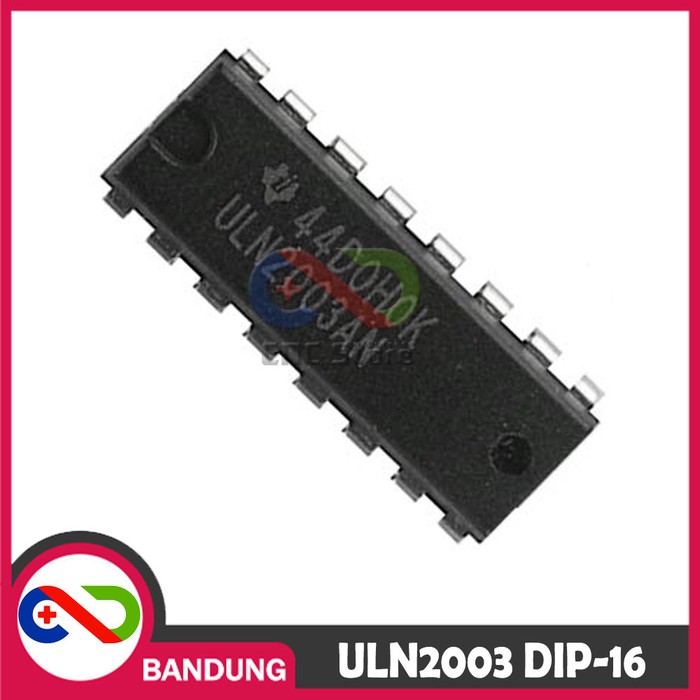

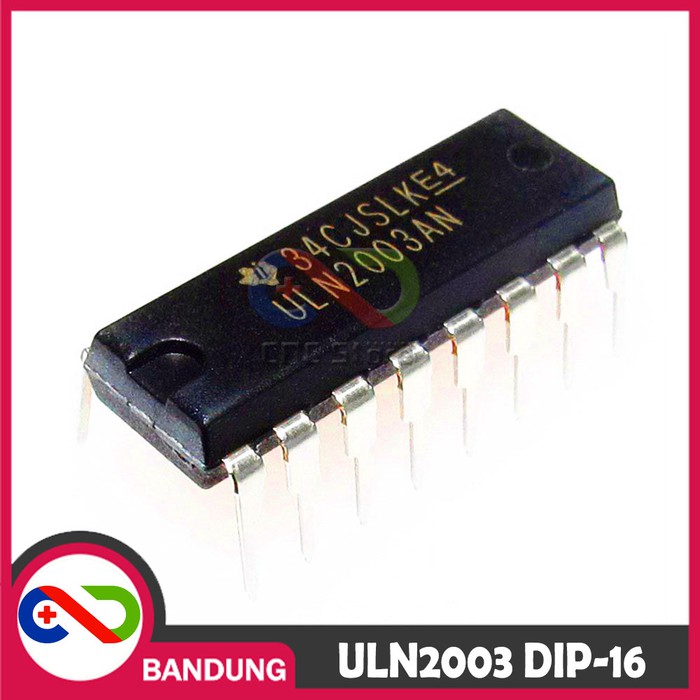

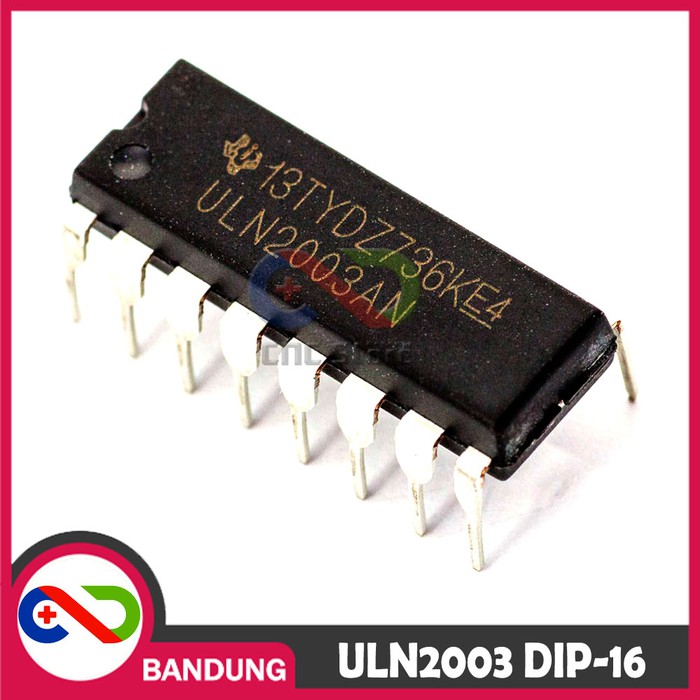

Gambar produk
