Detail ULINK u-link2 ULINK2 emulator ARM original firmware MDK5.0 / Cortex-M4

The Keil ULINK2 Debug Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware.

ULINK2 Features:

Supports various ARM7, ARM9, Cortex-M, 8051, and C166 devices
JTAG speed up to 10MHz
Serial Wire Debug (SWD) support for ARM Cortex-M based devices
Serial Wire Viewer (SWV) Data Trace for Cortex-M up to 1Mbit/s (UART mode)
NXP 2-wire debug interface (P89LPC952 and P89LPC954) support
with memory R/W during execution, terminal emulation, and serial debug output
Seamless integration with the Keil IDE & Debugger
Wide target voltage range: 2.7V - 5.5V
USB powered (no power supply required)
Plug-and-Play installation using
Target
10-pin (0.05") - Cortex Debug Connector
20-pin (0.10") - ARM Standard JTAG Connector

ULINK2 may be used for:

(using on-chip JTAG, SWD, or SWV),
(using user-configurable Flash programming algorithms).

Using the ULINK2 adapter together with the Keil , you can easily create, download, and test embedded applications on target hardware.

The Keil ULINK2 USB-JTAG Adapter connects your PC's USB port to your target system (via JTAG, SWD, or OCDS) and allows you to program and debug embedded programs on target hardware.



ARM7/ARM9/Cortex-M3

LPC2101, LPC2102, LPC2103, LPC2104, LPC2105, LPC2106, LPC2114, LPC2119, LPC2124, LPC2129, LPC2131, LPC2132, LPC2134, LPC2136, LPC2138, LPC2141, LPC2142, LPC2144, LPC2146, LPC2148, LPC2194, LPC2210, LPC2212, LPC2214, LPC2220, LPC2290, LPC2292, LPC2294, LPC2364, LPC236

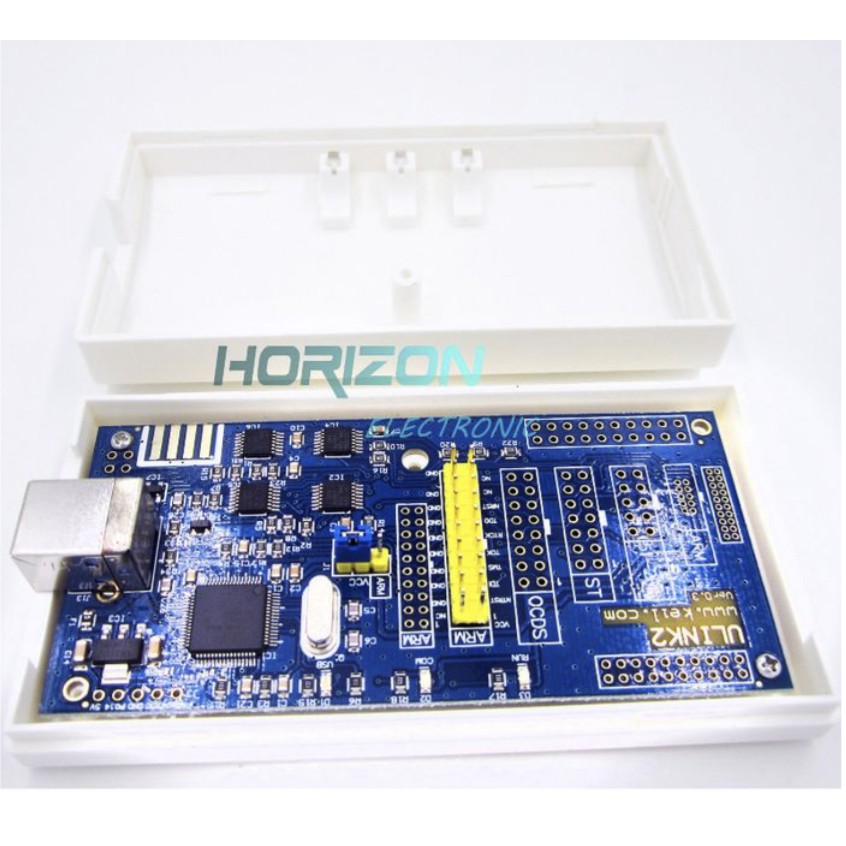

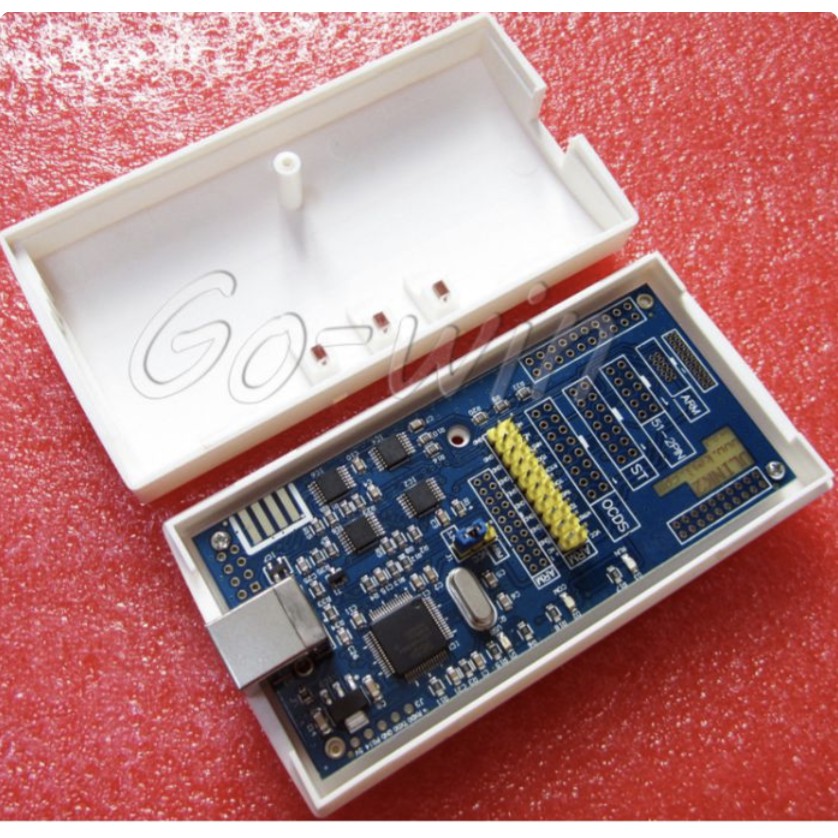

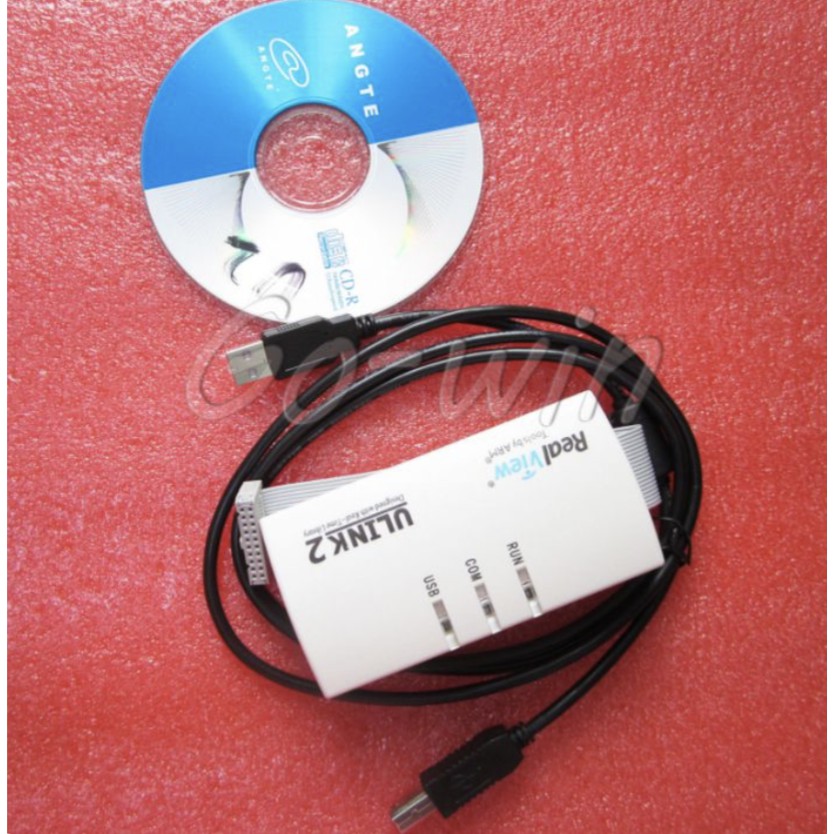

Gambar produk
