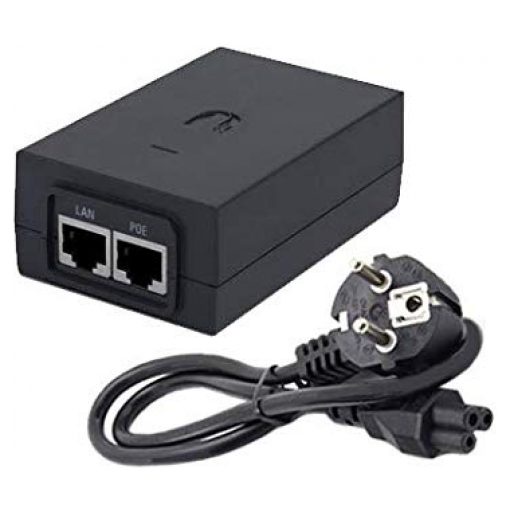

UBNT UBIQUITI POE-50-60W PoE Adapter Gigabit LAN Port

Detail UBNT UBIQUITI POE-50-60W PoE Adapter Gigabit LAN Port

Model POE-50-60W
Dimensions : 101 x 60 x 33 mm (3.98 x 2.36 x 1.30")
Weight : 192 g (6.77 oz)
Output Voltage : 50VDC @ 1.2A
LAN Activity Indicator : No
Gigabit LAN Port : Yes
Remote Reset Capability : No
Reset Button : No
Input Voltage : 90-260VAC @ 47-63 Hz
Input Current : 1.3A @ 120VAC, 0.75A @ 230VAC
Inrush Curren : 100A Peak @120VAC, 200A Peak @ 230VAC
Efficiency : 85+%
Output Ripple : 1% Max.
Switching Frequency : 66 kHz
Line Regulation : 1%
Load Regulation : 3%
2-Pair Powering : -
4-Pair Powering : Pins 1, 2, 4, 5 (+) and Pins 3, 6, 7, 8 (-)
Operating Temperature : 1 to 40 C (32 to 104 F)
Storage Temperature : -30 to 70C (-22 to 158 F)
Operating Humidity : 36 to 95% Noncondensing
AC Connector : IEC-320 C7
Data IN / POE : RJ45 Shielded Socket
Surge Protection : Difference and Common Mode
Clamping Protection : 11V Data, 60V Power
Max. Surge Discharge : 1500A (8/20 s) Power
Peak Pulse Current : 36A (10/1000 s) Data
Shunt Capacitance : 5 pF data
Response Time : 1 ns
Compliance : IEC 60950-1:2005+A1 UL60950-1 EN55022:2010, EN5504
AC Cable with Earth Ground : USA, EU, AR, BR, UL, CCC, Mexico
