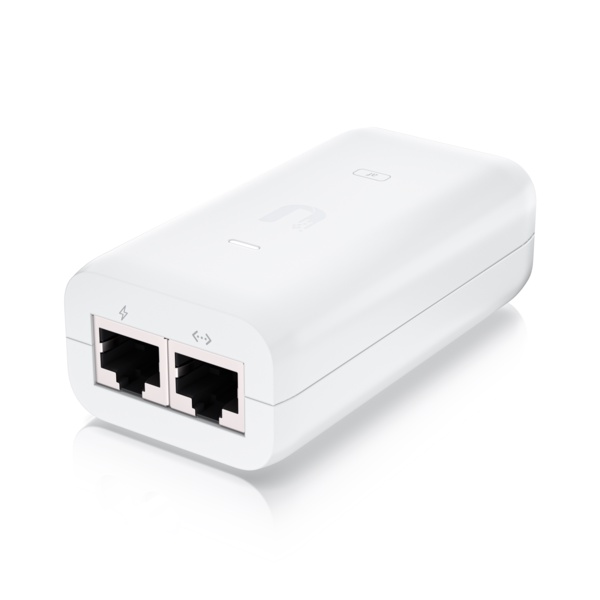

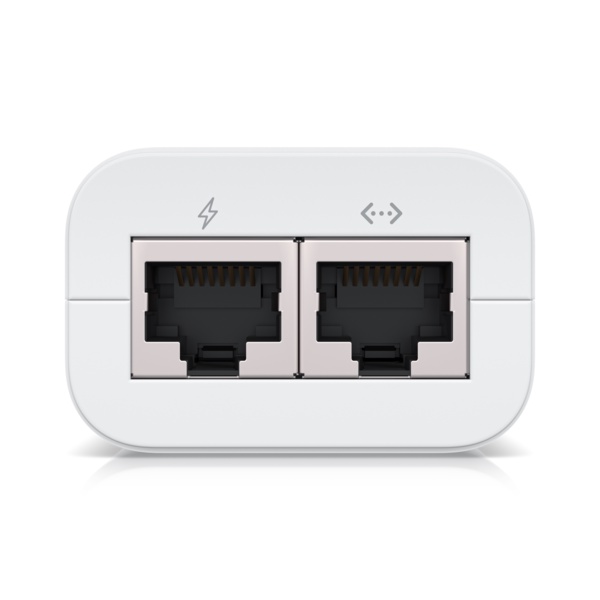

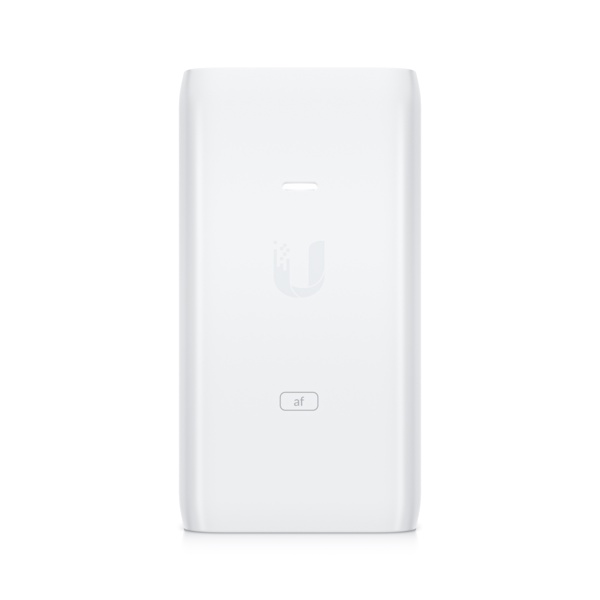

Ubiquity U-POE-AF PoE Injector, 802.3AF

Detail Ubiquity U-POE-AF PoE Injector, 802.3AF

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

PoE Injector, 802.3AF
U-POE-AF

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

Surge protection
Clamping protection
Maximum surge discharge
Peak pulse current
AC cable with earth ground
Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

U-POE-af
Dimensions 86 x 46 x 33 mm
(3.39 x 1.81 x 1.30")
Weight 100 g
(3.53 oz)
Output Voltage 48VDC @ 0.32A
LAN Activity Indicator No
Gigabit LAN Port Yes
Remote Reset Capability Yes
Reset Button No
Rated Voltage 100-240VAC @ 50/60Hz
Input Current 500mA @ 90VAC
Inrush Current <100A Peak @ 25°C
Efficiency 84.25+%
Output Ripple 200mV p-p
Switching Frequency 65 kHz
Line Regulation ≤ 3%
Load Regulation ≤ 5%
2-Pair Powering Pins 4, 5 (+) and Pins 7, 8 (-)
4-Pair Powering –
Operating Temperature 0 to 40° C
(32 to 104° F)
Storage Temperature -30 to 70°C
(-22 to 158° F)
Operating Humidity 5 to 90% Noncondensing
AC Connector IEC-320 C6
Data IN / POE RJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection 11V Data, 60V Power
Max. Surge Discharge 1500A (8/20 μs) Power
Peak Pulse Current 36A (10/1000 μs) Data
Shunt Capacitance <5 pF data
Response Time <1 ns
Certifications CE, FCC, IC, UL

Gambar produk
