Detail UBIQUITY TQJ-2400ATC15 ANTENNA OMNI KENBOTONG 2.4GHZ 15DBI
KENBOTONG TQJ-2400ATC15

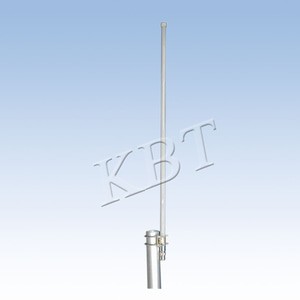

2.4GHz 15dBi Fiberglass Omni Antenna
Applications:
~ 2.4 GHz Wireless LAN
~ 2.4GHz ISM Band
~ Public Wireless Hotspot
~ Multipoint Applications
Features:
~ Superior performance
~ High Gain, Low VSWR
~ Lightweight fiberglass radome
~ All weather operation
~ Heavy-duty steel mounting brackets
Specifications:
~ Freq. Range : 2400 ~ 2483 MHz
~ Bandwidth : 83 MHz
~ Gain : 15dBi
~ Vertical Beamwidth 7degree
~ VSWR 1.5
~ Impedance 50 Ohm
~ Polarization Vertical
~ Max. Power 100W
~ Connector Type N-Female
~ Dimension 1.2 meter
~ Pole Diameter 40x50 mm
