Detail Ubiquity Rocket Dish 2,4Ghz 24dbi / RD-2G24 / RD2G24 / RD 2G 24

Ubiquiti Networks Rocket Dish 2G 24dBi(RD-2G24)

Pair a RocketDish RD-2G24 antenna with a Rocket basestation to create the endpoint of a high-performance, Point-to-Point (PtP) bridge or network backhaul (Rocket sold separately).

RocketDish RD-2G24 antenna delivers 2x2, dual-polarity performance.

Incorporating a dish reflector design for excellent beam directivity, the RocketDish antennas feature robust mechanical design using industrial-strength hardware for outdoor application use.

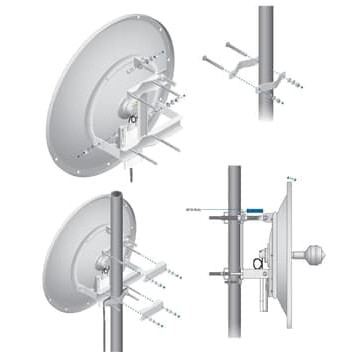

RocketDish antennas and Rocket basestations have been designed to seamlessly work together. Every RocketDish has a built-in Rocket mount, so installation requires no special tools.

Specifications:
Model : RD-2G24
Dimensions : 650x650x295mm
Freq Range : 2.3-2.7GHz
Gain : 24dBi
HPOL Beamwidth 6.6 deg (3dB)
VPOL Beamwidth 6.8 deg (3dB)
F/B Ratio : 28dB
Max. VSWR : 1.6:1
Polarization : Dual-Linear
Cross-pol Isolation : 35 dB Min.
ETSI Specification : EN 302 326 DN2
