Detail Ubiquity Powerbeam M5-22dbi / PBE-M5-300

Processor Specs Atheros MIPS 74Kc, 560 MHz
Memory 64 MB DDR2, 8 MB Flash
Networking Interface (1) 10/100 Ethernet Port
Wireless Approvals FCC, IC, CE
RoHS Compliance Yes
Dimensions 325 x 325 x 256 mm (12.80 x 12.80 x 10.08")
Weight 1.203 kg (2.65 lb)
Power Supply 24V, 0.5A PoE
Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
Max. Power Consumption 6W
Gain 22 dBi
Operating Frequency
Worldwide
USA
5170 - 5875 MHz
5725 - 5850 MHz
Wind Loading 200.2 N @ 200 km/h (45 lbf @ 125 mph)
Wind Survivability 200 km/h (125 mph)
LEDs (1) Power, (1) LAN, (4) WLAN
Signal Strength LEDs Software-Adjustable to Correspond to Custom RSSI Levels
Channel Sizes 5/8/10/20/30/40 MHz
Polarization Dual Linear
Enclosure Outdoor UV Stabilized Plastic
Mounting Pole-Mount Kit Included
ESD/EMP Protection Air: 24 kV, Contact: 24 kV
Operating Temperature -40 to 70 C (-40 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Salt Fog Test IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5
Vibration Test IEC 68-2-6
Temperature Shock Test IEC 68-2-14
UV Test IEC 68-2-5 at 40 C (104 F), Equivalent: ETS 300 019-1-4
Wind-Driven Rain Test ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5

Gambar produk

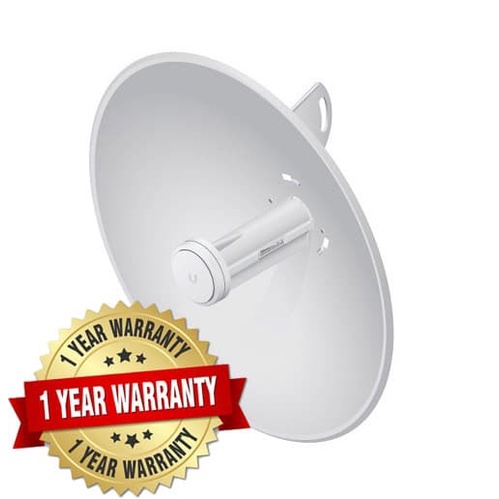

Ubiquity Powerbeam M5-22dbi / PBE-M5-300
