Ubiquity LiteBeam UNIFI M5-23 23DBI / LBE-M5-23

Detail Ubiquity LiteBeam UNIFI M5-23 23DBI / LBE-M5-23

LiteBeam M5 23dbi is the latest evolution of a lightweight and compact, outdoor wireless broadband product from Ubiquiti Networks. Each of these models was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, licensefree 5 GHz frequency range with high-performance speeds.

LiteBeam M5 23dbi combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with costeffective value.

The InnerFeed technology LiteBeam M5 23dbi integrates the entire radio system into the antenna feed, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.

Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX Time Division Multiple Access (TDMA) protocol allows each client to send and receive data using pre-designated time slots managed by an intelligent AP controller. This time slot method eliminates hidden node collisions and maximizes airtime efficiency.

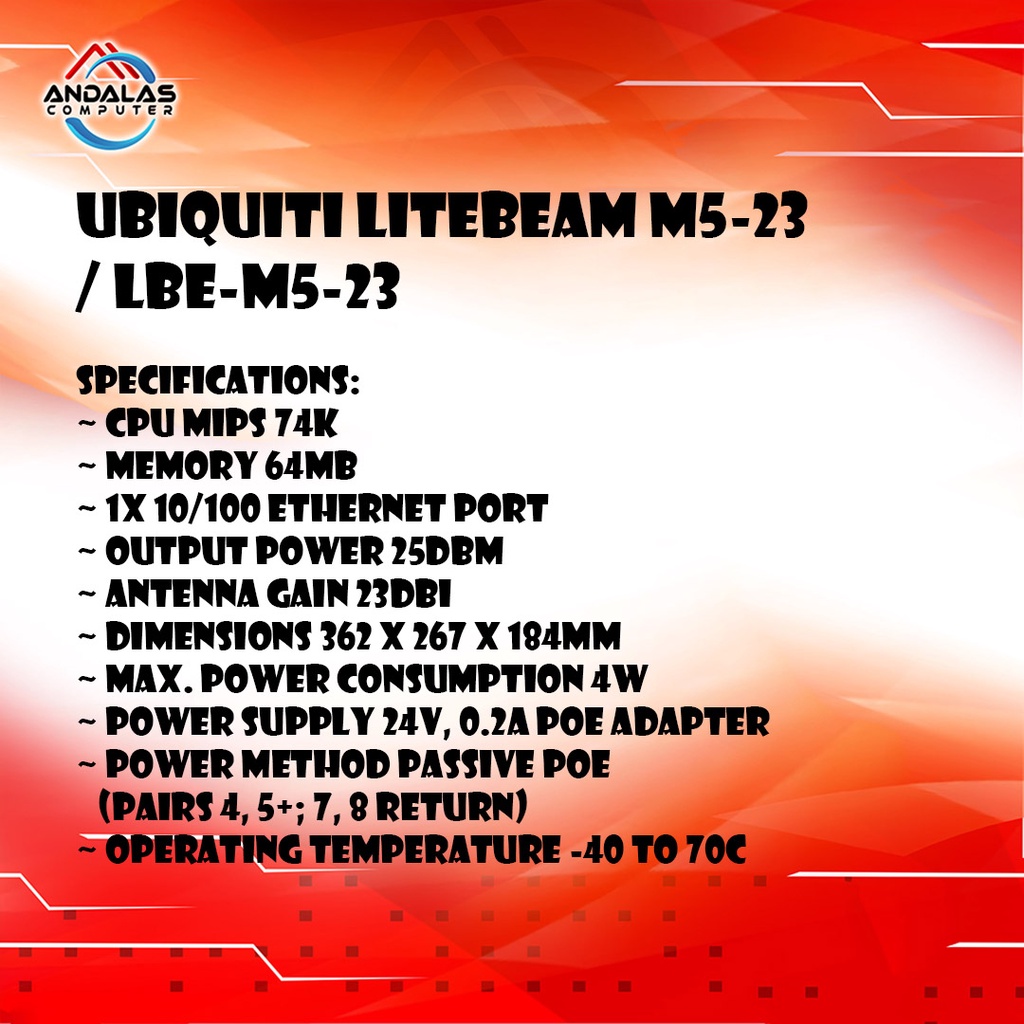

Specifications:
~ CPU MIPS 74K
~ Memory 64MB
~ 1x 10/100 Ethernet Port
~ Output power 25dbm
~ Antenna gain 23dbi
~ Dimensions 362 x 267 x 184mm
~ Max. Power Consumption 4W
~ Power Supply 24V, 0.2A PoE Adapter
~ Power Method Passive PoE (Pairs 4, 5+; 7, 8 Return)
~ Operating Temperature -40 to 70C

Gambar produk
