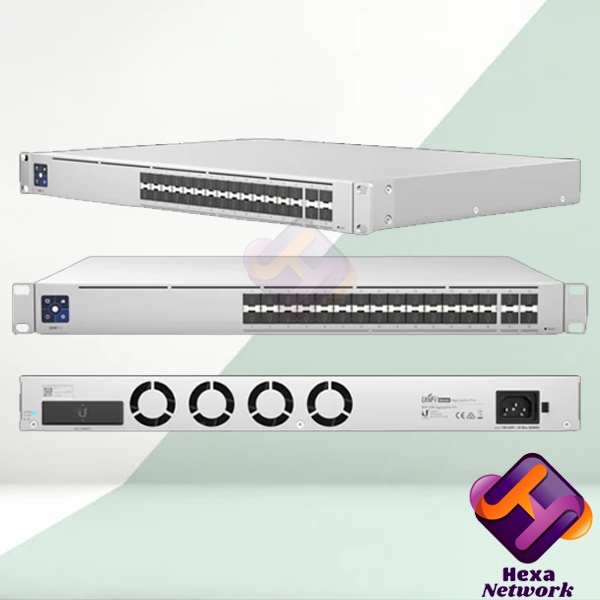

Ubiquiti USW-Pro-Aggregation | Switch Pro Aggregation

Detail Ubiquiti USW-Pro-Aggregation | Switch Pro Aggregation

USW-Pro-Aggregatio

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

A 32-port, Layer 3 switch.

Features:

(28) 10G SFP+ ports
(4) 25G SFP28 ports
(1) USP RPS DC input for power redundancy
Switching capacity: 760 Gbps
1.3" LCM color touchscreen with AR switch management

Managed with the UniFi Network application: Version 6.1.25 and later

Mechanical
Dimensions 442 x 325 x 44 mm (17.4 x 12.8 x 1.7")
Weight Without mounting brackets: 4.6 kg (10.14 lb)
With mounting brackets: 4.7 kg (10.36 lb)
Enclosure material SGCC steel
Hardware
Networking interface (28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports*
*The four SFP28 ports don't support mixed speed at 25 Gbps mode. Once one of the SFP28 ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. The SFP28 ports only support mixed speed when all ports are at 1 Gbps or 10 Gbps.
Management interface Ethernet In-Band
Total non-blocking throughput 380 Gbps
Switching capacity 760 Gbps
Forwarding rate 565.44 Mpps
Max. power consumption 100W
Power method (1) Universal AC input, 100—240V AC, 2A Max, 50/60 Hz
(1) USP-RPS DC input, 11.5V DC, 8.7A
Power supply AC/DC, internal, 100W
Services SMB Layer 3 10/25 G Fiber switch
ESD/EMP protection Air: ± 16kV, contact: ± 12kV
LCM display (1) 1.3" LCM color touchscreen
Bootup animation: bootup in progress
Firmware upgrade icon: firmware upgrading
LEDs SFP28/SFP+: White, link, activity
Operating temperature -5 to 40° C (23 to 104° F)
Operating humidity 10 to 90% noncondensing
Certifications CE, FCC, IC
LEDs
System Status
SFP28/SFP+ Link/activity
