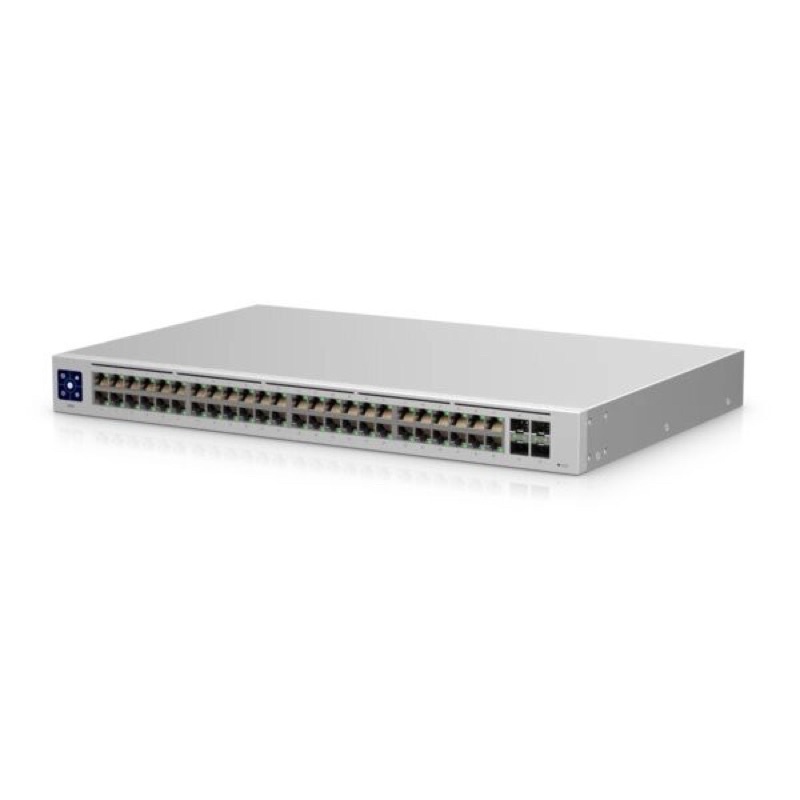

Ubiquiti USW-Pro-48-POE Gen2 UniFi Pro Switch PoE 48 Gigabit Managed

Detail Ubiquiti USW-Pro-48-POE Gen2 UniFi Pro Switch PoE 48 Gigabit Managed

UniFi USW-Pro-48-POE Gen2

Key Features
48 x Gigabit Ethernet Ports
40 x PoE Ports | 8 x PoE++ Ports
4 x 10 Gb/s SFP+ Ports
176 Gb/s Switching Capacity

Interfaces
Ports 40 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+
8 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) (Uplink) PoE+ (Type 2)
4 x 10Gb SFP+ (Uplink)

Protocols
Layer Services Supported Layer 2 Support, Layer 3 Support
Supported Protocols Auto-MDIX/MDI
Port Mirroring
Transmission Method Store-and-Forward

Standards
Supported IEEE Standards 802.3af, 802.3at, 802.3bt

Performance
Forwarding Rate 65.47 Mpps
Switching Bandwidth 44 Gb/s (Non-Blocking)

Computer
OS Compatibility macOS 10 or Later
Windows 7 or Later
Linux

Electrical
Power Draw 60.00 W (Max)
DC Input Power 11.5 to 52 VDC at 11.54 A
AC Input Power 100 to 240 VAC, 50 / 60 Hz
PoE Power Budget 600 W
PoE per Port 32 to 64 W
Power Supply Type Internal

Environmental
Operating Temperature 23 to 104°F / -5 to 40°C
Operating Humidity 10 to 90%
Certifications CE, FCC, IC, as per Manufacturer

General
Cooling System Passive
Indicator Lights Link/Activity, Link/Activity/Speed, PoE, System
Rack Form Factor 1 RU
Dimensions 442.4 x 285.4 x 43.7 mm
