Ubiquiti USW-PRO-24-POE-Gen2 Unifi Switch PRO 24Port Gigabit Gen2

Merek: Ubiquiti Networks | Lihat selengkapnya produk Komputer & Aksesoris dari Ubiquiti Networks
Komputer & Aksesoris > Komponen Network > Switch Internet & PoE > Ubiquiti USW-PRO-24-POE-Gen2 Unifi Switch PRO 24Port Gigabit Gen2
  • Pengiriman Ekspres
  • Barang yang diperiksa
  • Bayar di tempat berlaku
  • Kualitas, Prestise
  • Pengembalian produk
  • Dukung pembuatan faktur

Detail Ubiquiti USW-PRO-24-POE-Gen2 Unifi Switch PRO 24Port Gigabit Gen2

Deskripsi : Ubiquiti USW PRO 24 POE Gen2 Unifi Switch PRO 24 Gigabit

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

UniFi Pro 24-Port PoE Switch
• (16) Gigabit RJ45 ports with 802.3af/at
• (8) Gigabit RJ45 ports with 802.3bt
• (2) 1/10G SFP+ ports

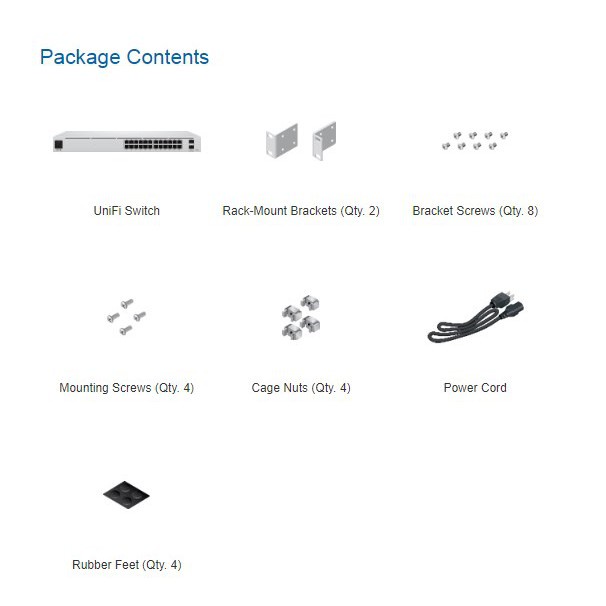

• 1U Rackmountable (hardware included)

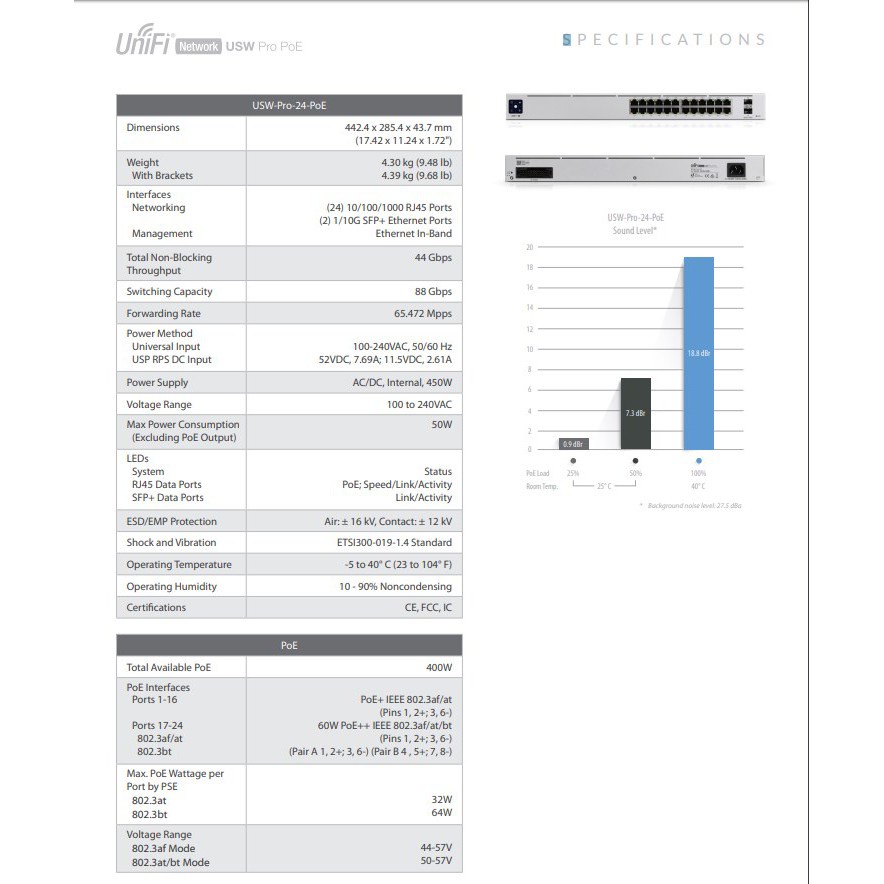

Specifications USW-Pro-24-POE
Dimensions 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72")
Weight 4.30 kg (9.48 lb)
With Rackmount Brackets 4.39 kg (9.68 lb)
Interfaces
Networking (24) 10/100/1000 RJ45 Ports
(2) 1/10G SFP+ Ethernet Ports
Management Ethernet In-Band
Power Method
Universal Input 100-240VAC/50-60 Hz
USP RPS DC Input 52VDC, 7.69A; 11.5VDC, 2.61A
Power Supply AC/DC, Internal, 450W
Supported Voltage Range 100 to 240VAC
Max. Power Consumption (Excluding PoE Output) 50W
LEDs
System Status
RJ45 Data Ports PoE; Speed/Link/Activity
SFP+ Data Ports Link/Activity
ESD/EMP Protection Air: ± 16 kV, Contact: ± 12 kV
Shock and Vibration ETSI300-019-1.4 Standard
Operating Temperature -5 to 40° C (23 to 104° F)
Operating Humidity 10 to 90% Non condensing
Certifications CE, FCC, IC
Sound Level*
25% PoE Load, 25° C Room Temperature 0.9 dBr
50% PoE Load, 25° C Room Temperature 7.3 dBr
100% PoE Load, 40° C 18.8 dBr
* Background noise level: 27.5 dBa
PoE
PoE Interfaces
Ports 1-16 POE+ IEEE 802.3af/at (pins 1, 2+; 3, 6-)
Ports 17-24 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-)
Max. PoE Wattage per Port by PSE
802.3at 32W
802.3bt 64W
Voltage Range 802.3af Mode 44-57V
Voltage Range 802.3at/bt Mode 50-57V
