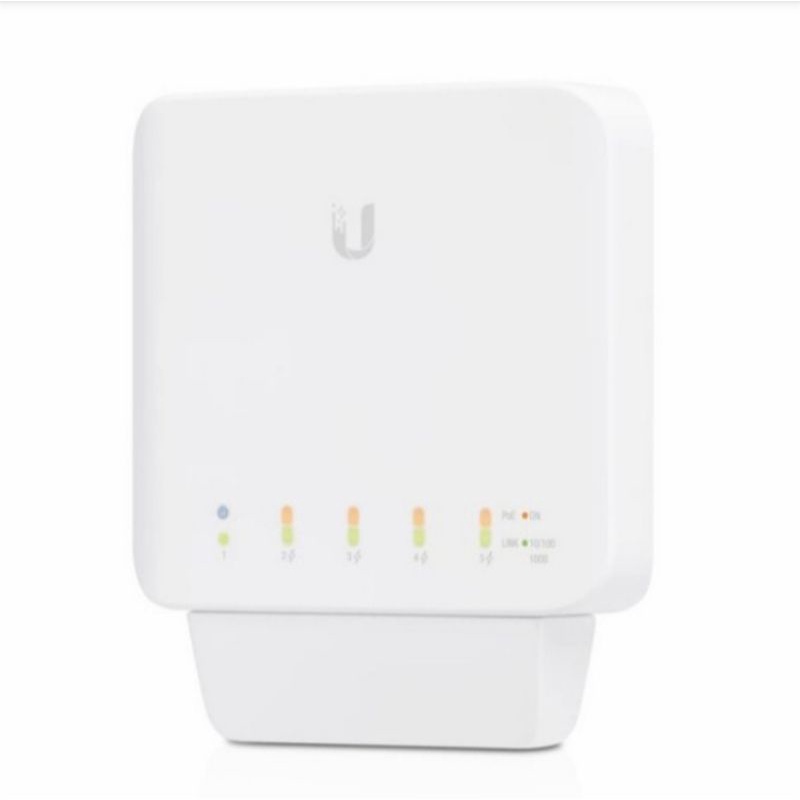

Ubiquiti USW-FLEX 5-Port Unifi Switch

Detail Ubiquiti USW-FLEX 5-Port Unifi Switch

Ubiquiti USW-FLEX UniFi Switch 4 x POE + 1 x POE++ 5 ports Gigabit

Specifications

• Networking Interfaces: (5) 10/100/1000 Mbps RJ45 Ports
• Management Interfaces: Ethernet In-Band
• Power Method:
PoE Mode 1: 802.3af/at (Pins 1, 2+; 3, 6-)
PoE Mode 2: 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)
PoE Mode 3: 50V/60W PoE Adapter3
• PoE Out: 802.3af (Pins 1, 2+; 3, 6-)
• Max. Power Consumption: 5W
• Max PoE+ Wattage Per Port: 15.4W
• Total PoE Power Budget:
Powered by AF mode PSE: 8W
Powered by AT mode PSE: 20W
Powered by BT mode PSE: 46W
Powered by PoE Adapter (Enabled in Controller): 46W
• Voltage Range:
802.3af: 44 - 57V
802.3at/bt: 50 - 57V
• LEDs:
System: Status
RJ45 Data Ports: PoE; Link/Speed/Activity
• ESD/EMP Protection: ± 16kV Air, ± 16kV Contact
• Operating Temperature:
46W PoE Output: -40 to 55° C (-40 to 131° F)
25W PoE Output: -40 to 65° C (-40 to 149° F)
• Operating Humidity: 5 to 95% Noncondensing
• Certifications: CE, FCC, IC

Product Includes

(1) Ubiquiti UniFi Switch Flex
(1) Wall Mount
(1) Pole Mount
(1) Port Cover
(2) Screw Anchors
(2) Mounting Screws
(2) Zip Ties
