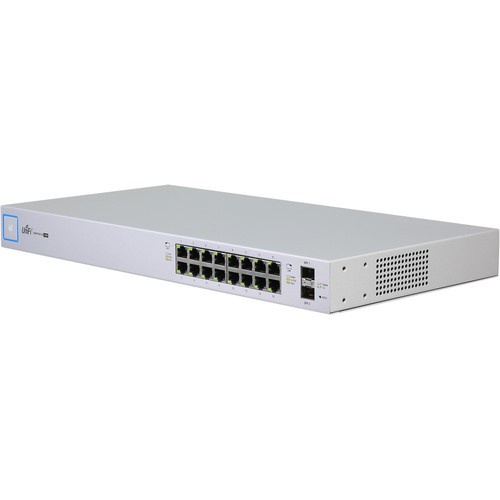

Dimensions : 442.4 x 200 x 43.7 mm(17.42 x 7.87 x 1.72") Weight : 2.80 kg (6.17 lb) With Brackets : 2.89 kg (6.37 lb) Interfaces Networking : (16) 10/100/1000 RJ45 Ports (2) 1G SFP Ethernet Ports Management : Ethernet In-Band Total Non-Blocking Throughput : 18 Gbps Switching Capacity : 36 Gbps Forwarding Rate : 26.78 Mpps Power Method : 100-240VAC, 50/60 Hz, Universal Input Power Supply : AC/DC, Internal, 60W Voltage Range : 100 to 240VAC Max Power Consumption (Excluding PoE Output) : 18W LEDs RJ45 Data Ports : PoE; Speed/Link/Activity SFP Data Ports : Link/Activity ESD/EMP Protection : Air: ± 16 kV, Contact: ± 12 kV Shock and Vibration: ETSI300-019-1.4 Standard Operating Temperature : -5 to 40° C (23 to 104° F) Operating Humidity : 10 - 90% Non condensing Certifications : CE, FCC, IC PoE
Total Available PoE : 42W PoE Interfaces Ports 1-8 : POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) Max. PoE Wattage per Port by PSE : 802.3at 32W Voltage Range 802.3af Mode : 44-57V 802.3at Mode : 50-57V
