Ubiquiti US-8 Unifi Switch Fully Managed 8Port Gigabit non PoE

Detail Ubiquiti US-8 Unifi Switch Fully Managed 8Port Gigabit non PoE

Deskripsi : Ubiquiti US 8 Unifi Switch 8Port non Poe

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Specifications US-8
Dimensions 148 x 99.5 x 30.7 mm (5.83 x 3.92 x 1.21")
Weight 432 g (15.24 oz)
Networking Interfaces (8) 10/100/1000 Mbps RJ45 Ports
PoE In (Port 1)
PoE Mode 1 802.3af/at (Pins 1, 2+; 3, 6-)
PoE Mode 2 48V (Pins 4, 5+; 7, 8-)
PoE Out (Port 8)
PoE Mode 1 48V (Pins 1, 2+; 3, 6-)
PoE Mode 2 Passive 48V (Pins 4, 5+; 7, 8-)
DC Input Mode DC Passthrough (Pins 1, 2+; 3, 6-)
Power Method
(1) DC 48V, Max. 1.25A
(1) PoE Input, 802.3af/at (Pins 1, 2+; 3, 6-)
Power Supply
External AC/DC Adapter*: 100-240VAC, 50/60 Hz; 48V, 0.5A
Max. Power Consumption 12W (Excluding PoE Output)
Max. Passive PoE Wattage per Port
PoE Mode 1 12W @ 802.3at
PoE Mode 2 12W @ 48V
DC Input Mode 12W @ 48V
Passive PoE Voltage Range Depends on Power Source
Line Rate 8 Gbps, Non-Blocking
LEDs
System Status
RJ45 Data Ports PoE; Link/Speed/Activity
ESD/EMP Protection ± 24kV Air, ± 24kV Contact
Operating Temperature -5 to 45° C (23 to 113° F)
Operating Humidity 5 to 95% Non condensing
Certifications CE, FCC, IC
* Included only in the single-pack of the device.

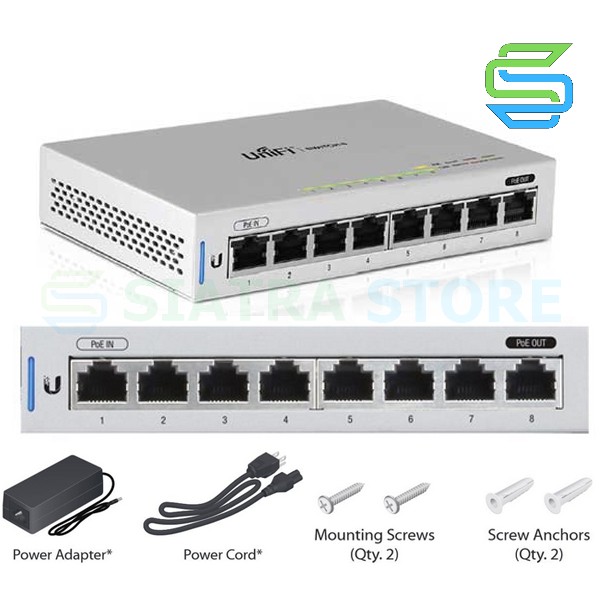

Gambar produk
