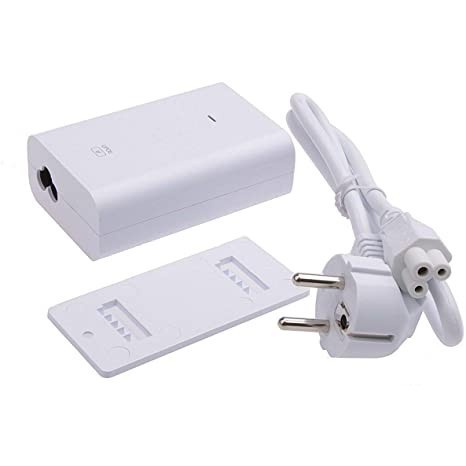

Ubiquiti UPOE-AF PoE Injector 802.3AF U-POE-AF

Detail Ubiquiti UPOE-AF PoE Injector 802.3AF U-POE-AF

Ubiquiti PoE Adapters provide a variety of features to help protect your PoE devices:

● Surge protection
● Clamping protection
● Maximum surge discharge
● Peak pulse current
● AC cable with earth ground

Electrostatic discharge (ESD) is the leading cause for outdoor device failures. You can effectively protect against ESD damage using a grounded Ubiquiti PoE Adapter, TOUGHCableTM, and TOUGHCable Connectors.

SPECIFICATIONS U-POE-AF :

● Output Voltage : 48VDC @ 0.32A
● LAN Activity Indicator : No
● Gigabit LAN Port : Yes
● Remote Reset Capability : Yes
● Reset Button : No
● Rated Voltage : 100-240VAC @ 50/60Hz
● Input Current : 500mA @ 90VAC
● Inrush Current : <100A Peak @ 25°C
● Efficiency : 84.25+%
● Output Ripple : 200mV p-p
● Switching Frequency : 65 kHz
● Line Regulation : ≤ 3%
● Load Regulation : ≤ 5%
● 2-Pair Powering : Pins 4, 5 (+) and Pins 7, 8 (-)
● 4-Pair Powering : –
● Operating Temperature :
0 to 40° C
(32 to 104° F)
● Storage Temperature :
-30 to 70°C
(-22 to 158° F)
● Operating Humidity : 5 to 90% Noncondensing
● AC Connector : IEC-320 C6
● Data IN / POE : RJ45 Shielded Socket
● Surge Protection : Difference and Common Mode
● Clamping Protection : 11V Data, 60V Power
● Max. Surge Discharge : 1500A (8/20 μs) Power
● Peak Pulse Current : 36A (10/1000 μs) Data
● Shunt Capacitance <5 pF data
● Response Time : <1 ns
● Certifications : CE, FCC, IC, UL
