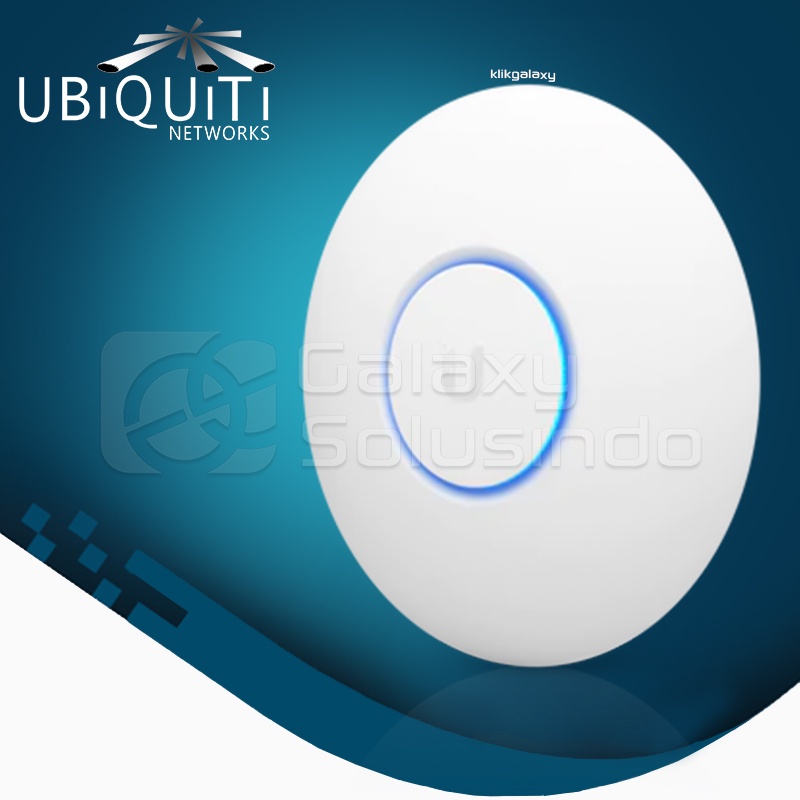

UBIQUITI Unifi UAP-NanoHD-US Access Point

Detail UBIQUITI Unifi UAP-NanoHD-US Access Point

SPECIFICATION :
Mechanical
Dimensions 160 x 160 x 32.65 mm (6.3 x 6.3 x 1.29")
Weight Without Mounting Kit: 300 g (10.6 oz)
With Mounting Kit: 315 g (11.1 oz)
Hardware
Networking Interface (1) 10/100/1000 Ethernet Port
Button (1) Reset
Power Method PoE
Power Supply UniFi Switch (PoE)
Max. Power Consumption 10.5W
Max. TX Power
2.4 GHz
5 GHz
23 dBm
26 dBm
Antenna Gain
2.4 GHz
5 GHz
2.8 dBi
3 dBi
MIMO
2.4 GHz
5 GHz
2 x 2
4 x 4
Throughput Rate
2.4GHz
5GHz
300 Mbps
1733 Mbps
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70° C (14 to 158° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Software
WiFi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
58 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 160)
