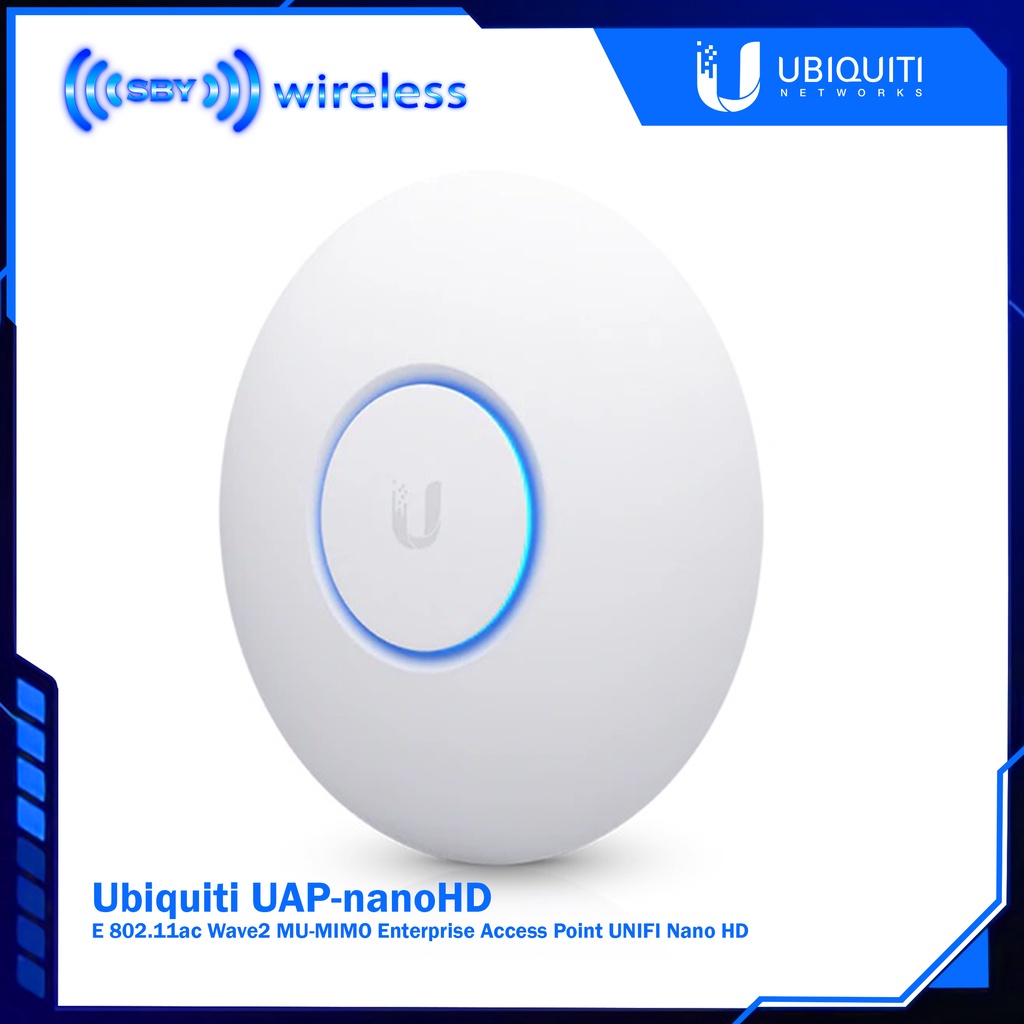

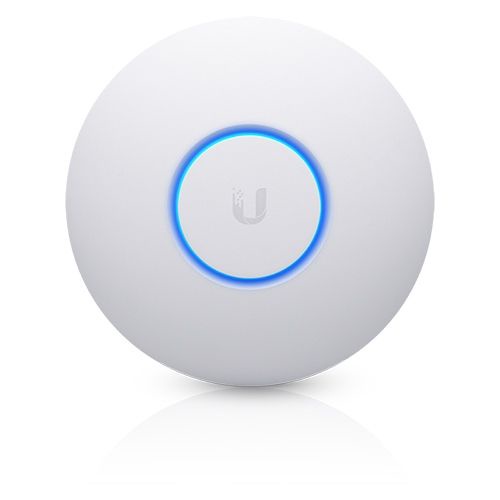

Ubiquiti Unifi UAP-NanoHD-E 802.11ac Wave2 MU-MIMO Enterprise Access Point UNIFI Nano HD

Detail Ubiquiti Unifi UAP-NanoHD-E 802.11ac Wave2 MU-MIMO Enterprise Access Point UNIFI Nano HD

Ubiquiti Unifi UAP-NanoHD-E 802.11ac Wave2 MU-MIMO Enterprise Access Point UNIFI Nano HD

Overview Of Unifi UAP Nano HD UAP-nanoHD MU-MIMO Enterprise AP
Compact 802.11ac Wave2 MU-MIMO Enterprise Access Point.

4x4 MU-MIMO on 5GHz (1733Mbps max PHY rate), 2x2 MIMO on 2.4GHz (300Mbps max PHY rate)
802.3af
Same mount as UAP-AC-Lite.

Dimensions 160 x 160 x 32.65 mm (6.30 x 6.30 x 1.29")
Weight
With Mounting Kits
300 g (10.6 oz)
315 g (11.1 oz)
Networking Interface (1) 10/100/1000 Ethernet Port
Buttons Reset
Power Method 802.3af PoE
Power Supply UniFi Switch (PoE)
Power Save Supported
Beamforming Supported
Maximum Power Consumption 10.5W
Supported Voltage Range 44 to 57VDC
TX Power
2.4 GHz
5 GHz
23 dBm
26 dBm
MIMO
2.4 GHz
5 GHz
2x2
4x4
Radio Rates
2.4 GHz
5 GHz
300 Mbps
1733 Mbps
Antennas
2.4 GHz
5 GHz
(2) Single-Port, Single-Polarity Antennas, 2.8 dBi each
(2) Single-Port, Dual-Polarity Antennas, 3 dBi each
Wi-Fi Standards 802.11 a/b/g/n/ac/ac-wave2
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES), 802.11w/PMF
BSSID 8 per Radio
Mounting Wall/Ceiling (Kits Included)
Operating Temperature -10 to 70 C (14 to 158 F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 200+
Supported Data Rates (Mbps)
Standard Data Rates
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80)
802.11b 1, 2, 5.5, 11 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
