Ubiquiti unifi ac in wall / uap-ac-iw / UAP AC IW

Detail Ubiquiti unifi ac in wall / uap-ac-iw / UAP AC IW

UAP-AC-IW Specifications
UAP-AC-IW
Dimensions 139.7 x 86.7 x 25.75 mm (5.5 x 3.41 x 1.01")
Weight 200 g (6.43 oz)
Networking Interface (3) 10/100/1000 Ethernet Ports
Buttons Reset
Power Method 802.3at PoE+ Supported
Power Supply UniFi PoE Switch (Not Included)
Power Save Supported
PoE Out 48V Pass-Through (Pins 1, 2+; 3, 6-)
Maximum Power Consumption
with PoE Passthrough
7W
19W*
Maximum TX Power
2.4 GHz
5 GHz
20 dBm
20 dBm
Antennas
2.4 GHz
5 GHz
(1) Dual-Band Antenna, Single-Polarity
1 dBi
2 dBi
Wi-Fi Standards 802.11 a/b/g/n/ac
Wireless Security WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
BSSID Up to 8 per Radio
Mounting 1-Gang Electrical Wall Box (Not Included)
Operating Temperature -10 to 50° C (14 to 122° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
* Requires 802.3at PoE+ switch
Advanced Traffic Management
VLAN 802.1Q
Advanced QoS Per-User Rate Limiting
Guest Traffic Isolation Supported
WMM Voice, Video, Best Effort, and Background
Concurrent Clients 250+
Supported Data Rates (Mbps)
Standard Data Rates
802.11ac 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80)
802.11n 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b 1, 2, 5.5, 11 Mbps

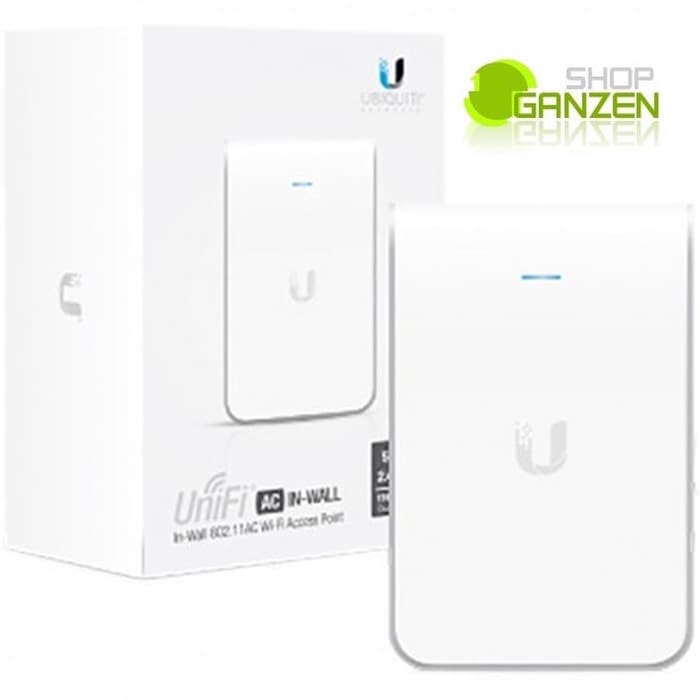

Gambar produk
