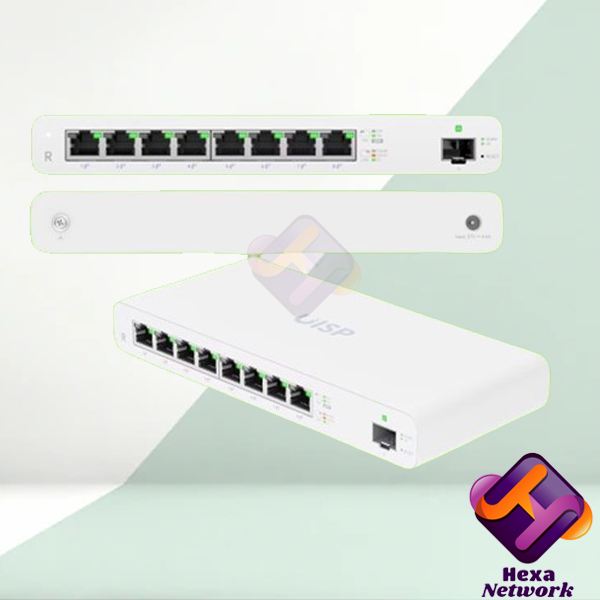

Ubiquiti UISP-R | UISP Router Gigabit PoE router

Detail Ubiquiti UISP-R | UISP Router Gigabit PoE router

Deskripsi : Ubiquiti UISP-R | UISP Router Gigabit PoE router

Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain
Garansi 6 Bulan

(8) GbE RJ45 ports with 27V passive PoE output
(1) SFP port
110W (27V) total PoE availability*, 15W/port (2-pair) / 30W/port (4-pair)
Up to 1 Gbps NAT throughput**
Traffic shaping functionality and automated customer suspension
Firewall and OSPF routing

Technical Specifications
Mechanical
Dimensions 210.4 x 95 x 29 mm (8.3 x 3.7 x 1.1")
Weight 600 g (1.3 lb)
Enclosure material Polycarbonate
Hardware
Processor Dual-core 880 MHz, MIPS1004Kc
Memory 512 MB DDR3
Onboard flash storage 512 MB NAND
Networking interface (8) GbE RJ45 ports
(1) 1G SFP port
Management interface Ethernet In-Band
Bluetooth BLE
Power method External AC/DC adapter
Power supply 27V DC, 4.4A power adapter (included)
Supported voltage range 24—28V DC
Max. power consumption 10W (Excluding PoE output)
ESD/EMP protection Air: ± 15kV, contact: ± 8kV
Operating temperature -10 to 50° C (14 to 122° F)
Operating humidity 5 to 95% noncondensing
Certifications CE, FCC, IC
PoE
PoE interface (8) 27V passive PoE: 2-pair (pins 4, 5+/7, 8-) or 4-pair (pins 1, 2, 4, 5+/3, 6, 7, 8-)
Max. Passive PoE wattage per port 30W/27V DC
Passive PoE voltage range 27V DC
LEDs
System Status
RJ45 data ports PoE
Speed/link/activity
SFP data port Link/activity
