Ubiquiti UISP-Dish 30dBi Dish Antenna|AF-5XHD RP-5AC|PtP Antenna

Detail Ubiquiti UISP-Dish 30dBi Dish Antenna|AF-5XHD RP-5AC|PtP Antenna

Ubiquiti UISP-Dish

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

Point-to-point (PtP) dish antenna that covers a wide operating frequency range (5.15 - 6.875 GHz).

The UISP® Dish is a high-gain PtP antenna that provides ample coverage by utilizing a wide operating frequency range. With the included WaveGuide adapter, this antenna can be easily attached to an airFiber® 5XHD Radio (AF 5XHD) or airMAX® Rocket Prism® AC 5 GHz Radio (RP 5AC) to amplify their signal. The UISP Dish also has a latch on each side for secure, snap-in radio connection.

Features:

Frequency range: 5.15 - 6.875 GHz
30+ km PtP link range
Precision mounting bracket for easy installation and alignment
Two side latches for secure, snap-in radio connection

Mechanical
Dimensions Ø 650 x 200 mm (Ø 25.6 x 7.9")
Weight Device: 4.54 kg (10 lb)
Mount: 3.1 kg (6.8 lb)
Enclosure materials Powder-coated galvanized steel, UV stabilized polycarbonate, aluminum alloy
Wind survivability Up to 200 km/h (124 mph)
Wind loading 860 N at 200 km/h
Mounting Alignment mounting kit (included)
Mechanical adjustment: ±15° elevation
Pole compatibility: Ø40 to 90mm (Ø1.57 to 3.5")
Weatherproofing IPX6
Hardware
Frequency range 5.15 to 6.875 GHz
Gain 30 dBi
Beamwidth Azimuth: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Elevation: 5 to 6° (3 dB) / 6.5 to 8° (6 dB)
Electrical downtilt 0°
Maximum VSWR 2:1
Polarization Dual-linear
Cross-pol isolation 20 dB

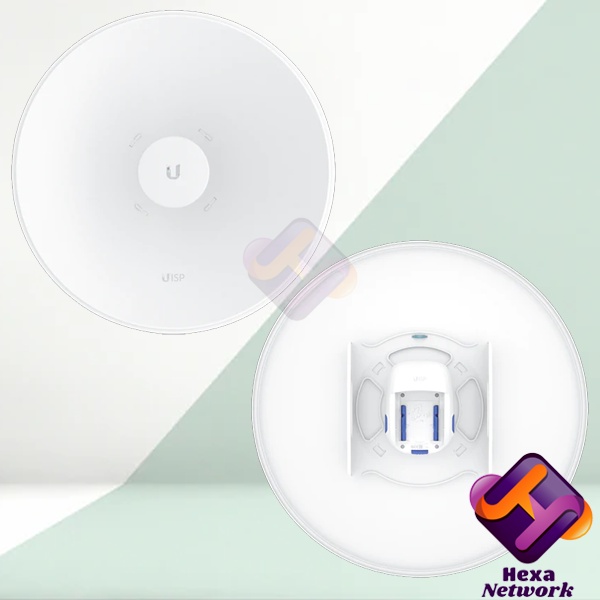

Gambar produk
