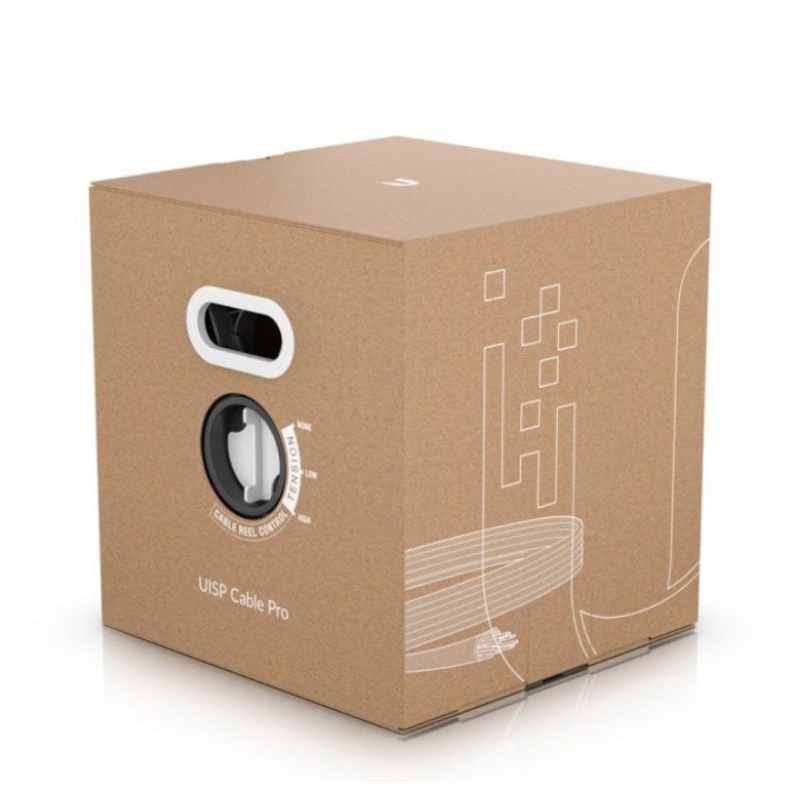

Ubiquiti UISP-CABLE-PRO UISP Cable PRO

Detail Ubiquiti UISP-CABLE-PRO UISP Cable PRO

Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage

The UISP-Cable-Pro is a Category 5e cable with a highly insulating, weatherproof jacket that prevents damage from rain, snow, and other extreme climatic conditions. The cable is also fortified with internal foil shielding and a drain wire that collectively shield it from electrostatic discharge (ESD) and allow it to maintain Gigabit Ethernet link rates even when electromagnetic interference is present.

Features:
1,000 ft (305 m) Category 5e cable
24 AWG solid copper conductor pairings
Insulated, weatherproof cable jacket
Internal foil shielding and drain wire for increased ESD damage protection

Mechanical
Box Dimensions 330 x 330 x 340 mm (13 x 13 x 13.4")
Box Weight 12 kg (26.5 lb)
Cable Length 305 m (1000 ft)
Cable Color Black
Cable Type CAT5e, Shielded
Ethernet Support Up to 1 Gbps
Conductor Wire Gauge 24 AWG
Conductor Solid Bare Copper
Conductor Diameter 0.500 ± 0.005 mm
Insulation Type Solid Polyethylene
Insulation Thickness Avg. 0.26 mm
Min. 0.25 mm
Insulation Diameter 1.04 ± 0.03 mm
Separation (Polyester Wrapping) Thick: 0.025 mm, Extent: 20 mm
Anti-Crosstalk Divider None
Cable Shield (Aluminum Foil) Thick: 0.060 mm, Extent: 18 mm
ESD Drain Wire 0.4 CCS
Rip Cord Yes
Jacket Material Polyethylene
Jacket Thickness Avg. 0.50 mm
Min. 0.46 mm
Jacket Outer Diameter 6.0 ± 0.30 mm
Jacket Color Black
Storage Temperature -30 to 75° C (-22 to 167° F)
Installation Temperature -20 to 60° C (-4 to 140° F)
Operation Temperature -40 to 80° C (-40 to 176° F)
Standards ANSI/TIA-568-C.2 (2009)
ISO/IEC 11801 (Edition 2.2)
