Detail Ubiquiti UFiber OLT 4 Terminal UF-OLT-4

Terima kasih Sudah berkunjung di Kurnia Abadi Semesta.
Demi kenyamanan bersama terkait harga, stock, warna, dll, harap konfirmasi terlebih dahulu sebelum order.
Terima kasih

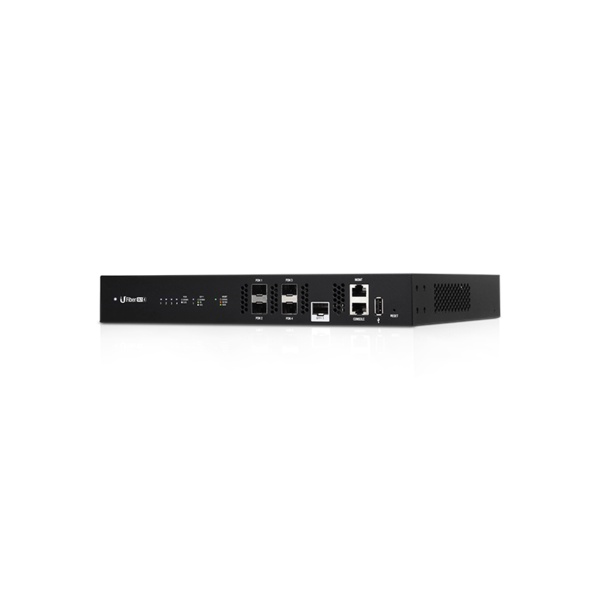

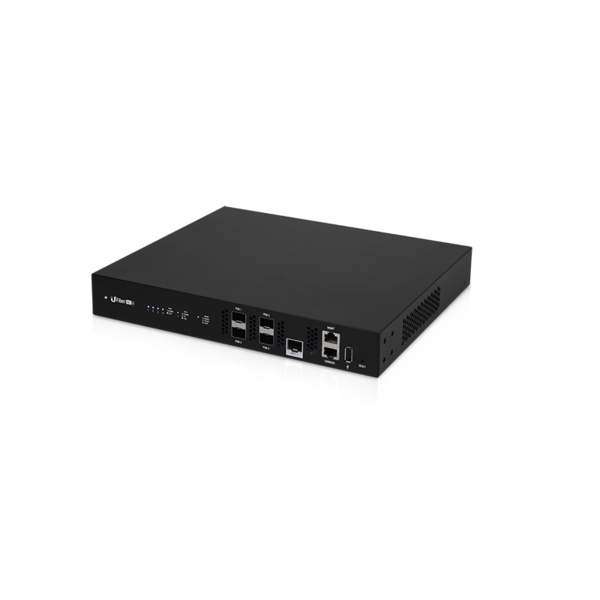

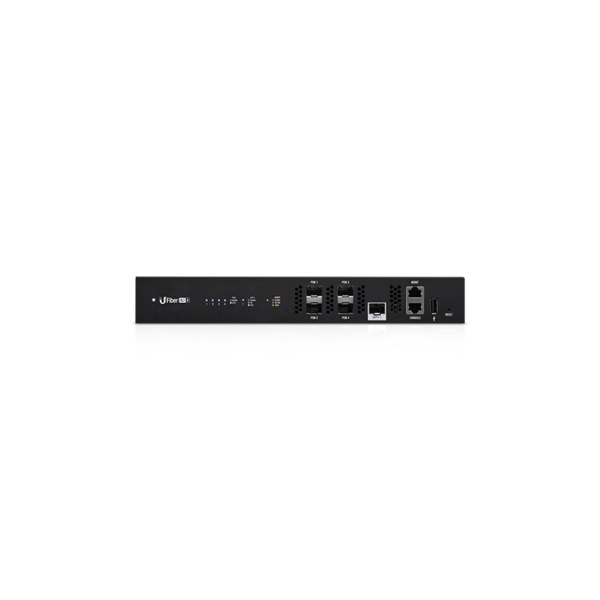

UFiber OLT 4 Terminal

UF-OLT-4

UISP-ready optical line terminal with (4) Gigabit optical network ports, (2) fiber uplinks, and Layer 2/3 switching capability.

Introducing UFiber OLT – a fiber solution that anyone can deploy. UFiber offers internet and telecom service providers a cost‑effective fiber optic delivery system for Triple Play Services (data, voice, IPTV/VoD) with speeds of up to 2.488 Gbps downstream and 1.244 Gbps upstream. The UFiber network is intelligently managed using the included UISP application. UFiber devices consist of the UFiber OLT or OLT-4 (deployed at the provider premises) and the UFiber Nano™ G,
loco, or UF-WiFi clients, which function as ONU CPEs (Customer Premises Equipment).

Features:
4-Port GPON Optical Line Terminal
4 Gigabit Passive Optical Network Ports
Supports up to 512 Clients (128 per PON Port)
Up to 2.488 Gbps TX and 1.244 Gbps RX
One 1G/10G SFP+ Ethernet Ports
Flexible Layer 2/3 Management Features
Ethernet port for management
Console serial port for management
24V DC Input Option (Redundant or Stand-Alone)

Dimensions 299.8 X 258.95 X 42.55 mm
Weight 1930g (without hangers)
2130g (with hangers)
Enclosure Characteristics SGCC steel
HARDWARE
Processor MIPS 1004Kc 880 Mhz dual core
Memory 512 Mbyte DDR3, 512M Byte NAND
Management Interface (1) Ethernet out-of-band management
(1) Ethernet in-band management
(1) RJ45 Serial Console Port
Networking Interface (4) GPON OLT SFP
(1) 10 Gbps SFP+
Buttons (1) Reset, Press 5 seconds - Reset to default
LEDs/Display (1) Power: Blue/White
Blinking Blue: reset to default
Steady Blue: system is booting
Steady White: service is ready
(4) GPON OLT SFP
Steady/Blinking white : GPON link/activity
(1) SFP+ Ethernet: White(10G) Green(1G), steady on after link is up, blinking while activity
