UFiber Nano G Network Unit

UF-Nano

Point-to-multipoint unit with a GPON WAN port, Gigabit RJ45 port, Layer 2/3 switching capability, and an LED display.

Featuring an informational LED display, the UFiber Nano G is a robust, high‑performance GPON CPE housed in a sophisticated design. It is powered by 24V passive PoE.

Features:
High-Performance GPON CPE
Up to 2.4 Gbps Downstream and 1.2 Gbps Upstream
Supports up to 20 km GPON Links
Powerful Layer 2/3 Management Features

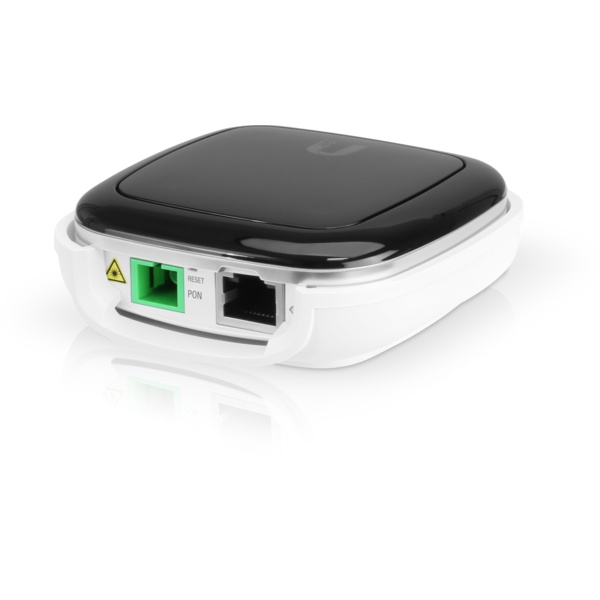

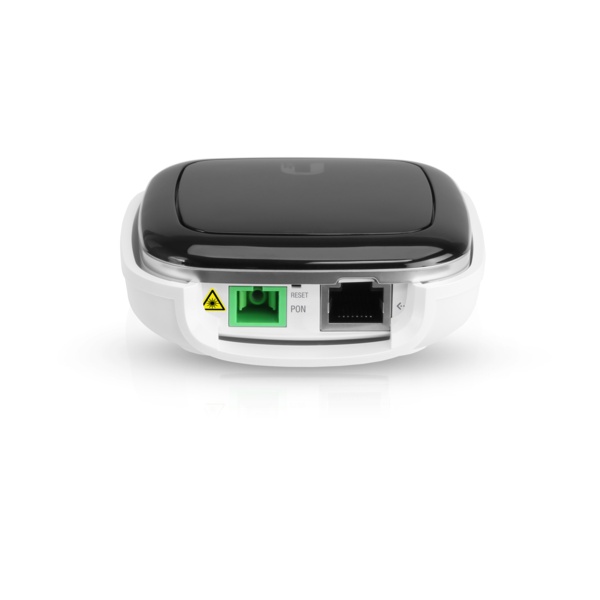

GPON WAN Port
RJ45 Gigabit LAN Port
SC/APC Fiber Connector

UFiber Nano G
Dimensions 77 x 77 x 28 mm
(3.03 x 3.03 x 1.1")
Weight 110 g
(3.88 oz)
Networking Interfaces (1) SC/APC, GPON WAN (1) RJ45, Ethernet LAN
Networking Interface Speeds (1) GPON WAN, ITU G.984,
2.488 Gbps Downstream,
1.244 Gbps Upstream

(1) GbE LAN, 10/100/1000 Mbps
Management Interface In-Band Ethernet/PON
Normal Optical Power Range TX (Class B+): 1.5 to 5 dBm
RX: -8 to -28 dBm
Power Method 24V Passive PoE (Pins 4, 5+; 7, 8-)
Dying Gasp Support
Power Supply PoE Adapter: 24V, 0.3A
Max. Power Consumption 7W
Supported Voltage Range 20 to 28V
Processor Specs MIPS-32, 240 MHz
Memory Information 128 MB DDR3
Buttons (1) Display Information
(1) Reset
Operating Temperature -10 to 45° C
(14 to 113° F)
Operating Humidity 5 to 95% Noncondensing
Certifications CE, FCC, IC
