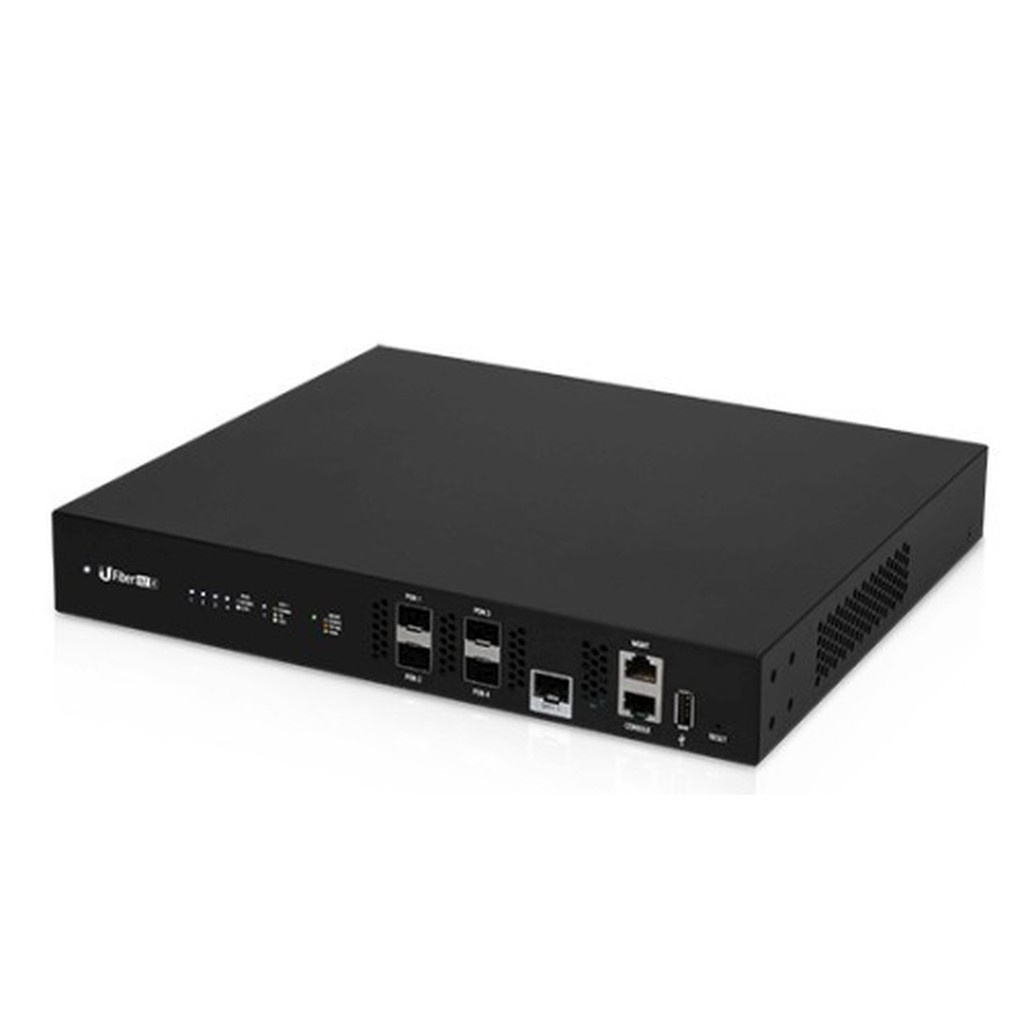

Ubiquiti UF-OLT-4 Unifi Fiber Optical Line Terminal 4Port GPON

Detail Ubiquiti UF-OLT-4 Unifi Fiber Optical Line Terminal 4Port GPON

Deskripsi : Ubiquiti UF OLT 4 Unifi Fiber Optical Line Terminal 4Port GPON

"Tanpa Video Unboxing yang Real, Kami TIDAK Menerima Komplain"

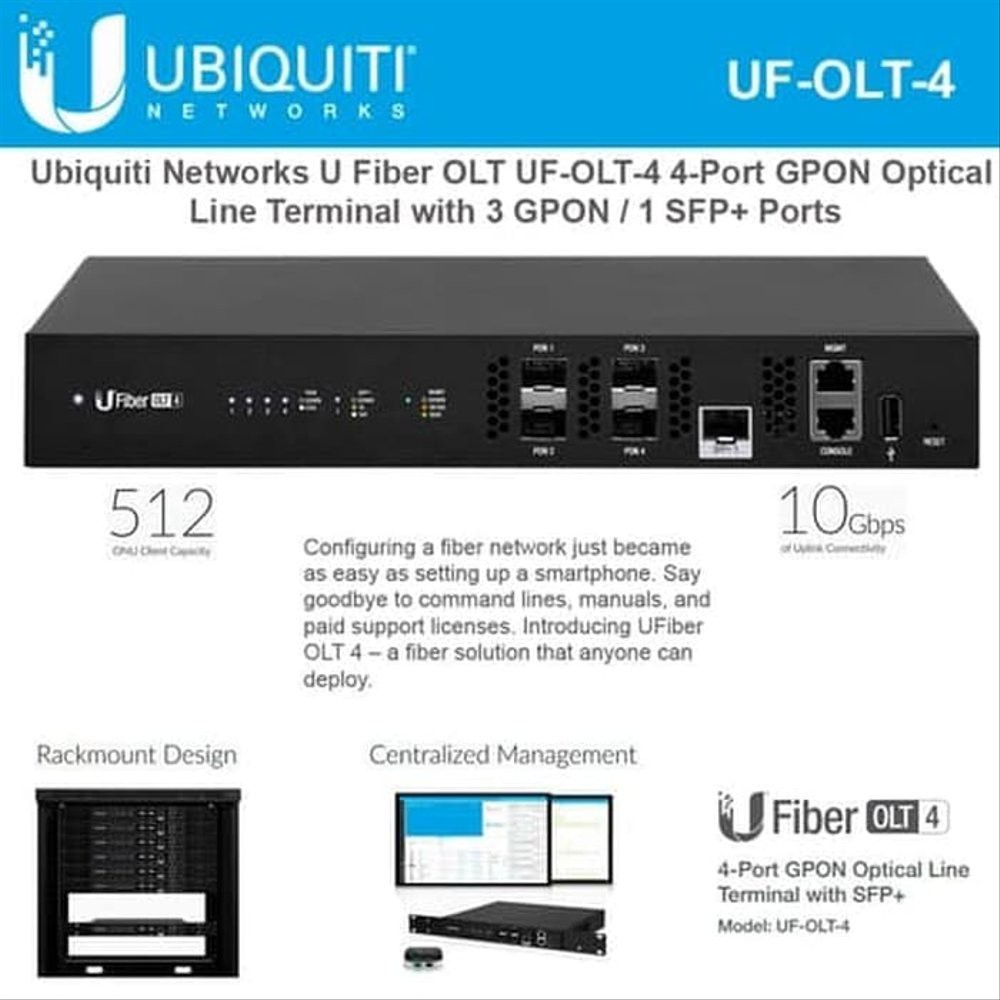

4-Port GPON Optical Line Terminal
• (4) GPON SFP and (1) SFP+ Ports
• 512 ONUs Total Concurrent Clients (128 Clients per Port)
• 35W Max. Power Consumption
• 100‑240VAC, 50/60 Hz, Universal Power Input and Secondary Power Option: 24VDC

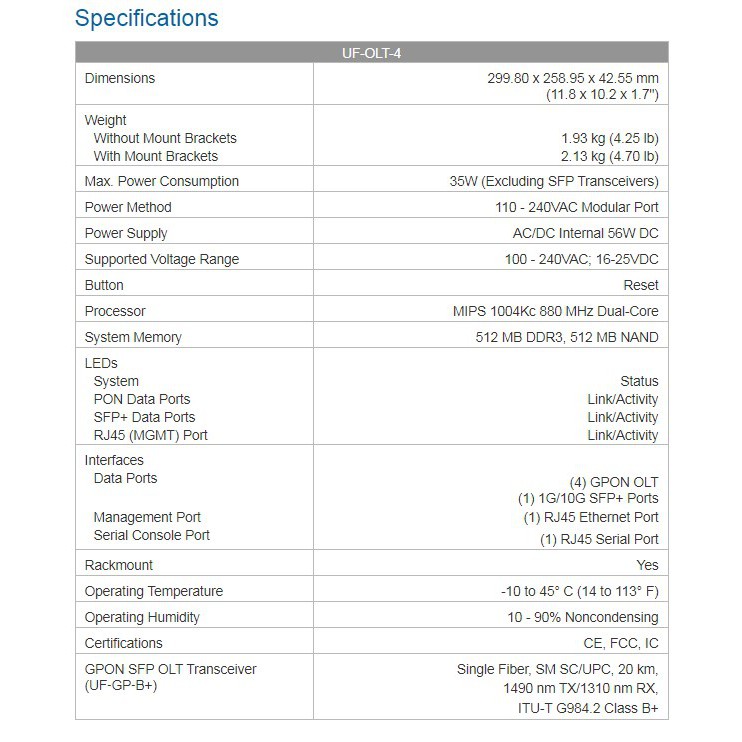

Specifications UF-OLT-4
Dimensions 299.80 x 258.95 x 42.55 mm (11.8 x 10.2 x 1.7")
Weight
Without Mount Brackets 1.93 kg (4.25 lb)
With Mount Brackets 2.13 kg (4.70 lb)
Max. Power Consumption 35W (Excluding SFP Transceivers)
Power Method 110 - 240VAC Modular Port
Power Supply AC/DC Internal 56W DC
Supported Voltage Range 100 - 240VAC; 16-25VDC
Button Reset
Processor MIPS 1004Kc 880 MHz Dual-Core
System Memory 512 MB DDR3, 512 MB NAND
LEDs
System Status
PON Data Ports Link/Activity
SFP+ Data Ports Link/Activity
RJ45 (MGMT) Port Link/Activity
Interfaces
Data Ports (4) GPON OLT (1) 1G/10G SFP+ Ports
Management Port (1) RJ45 Ethernet Port
Serial Console Port (1) RJ45 Serial Port
Rackmount Yes
Operating Temperature -10 to 45° C (14 to 113° F)
Operating Humidity 10 - 90% Noncondensing
Certifications CE, FCC, IC
GPON SFP OLT Transceiver (UF‑GP‑B+)
Single Fiber, SM SC/UPC, 20 km, 1490 nm TX/1310 nm RX, ITU-T G984.2 Class B+

Gambar produk
