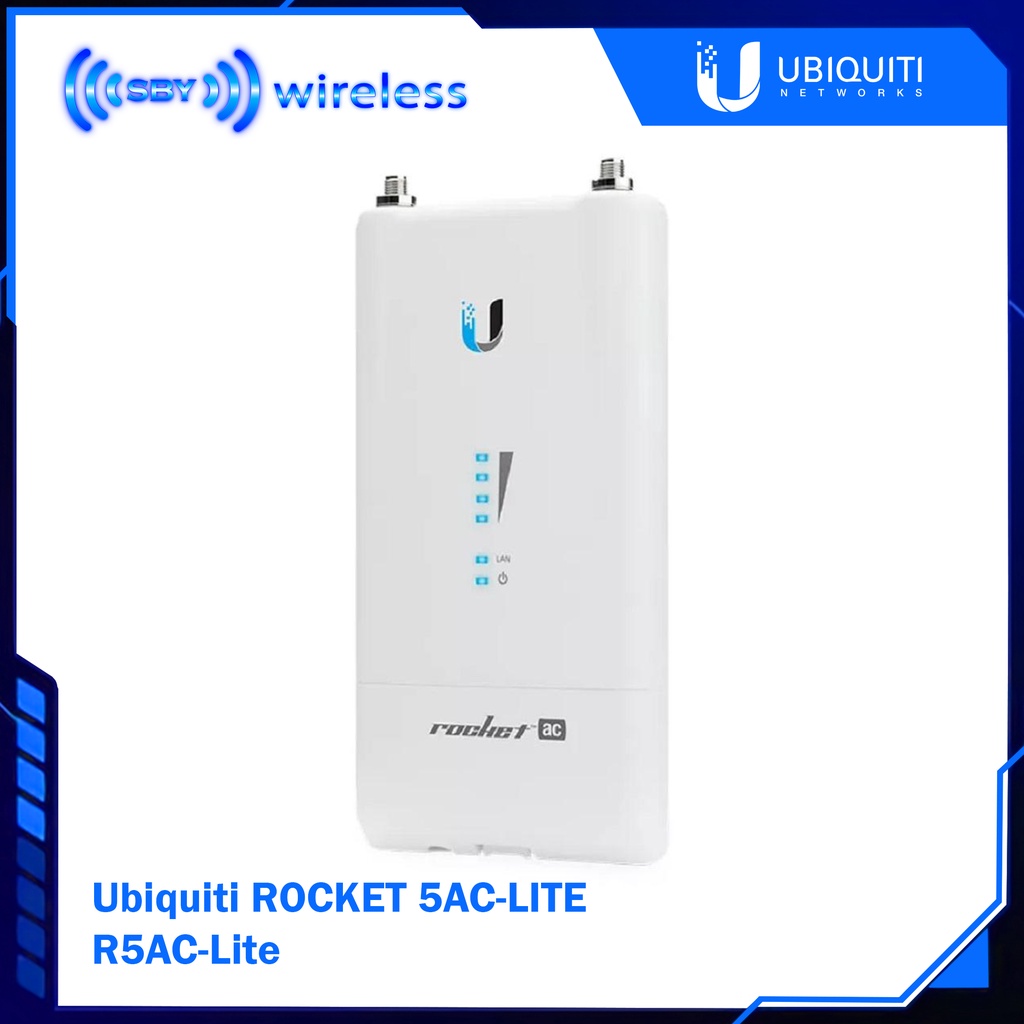

UBIQUITI UBNT ROCKET 5AC-LITE ROCKET 5 AC Lite

Detail UBIQUITI UBNT ROCKET 5AC-LITE ROCKET 5 AC Lite

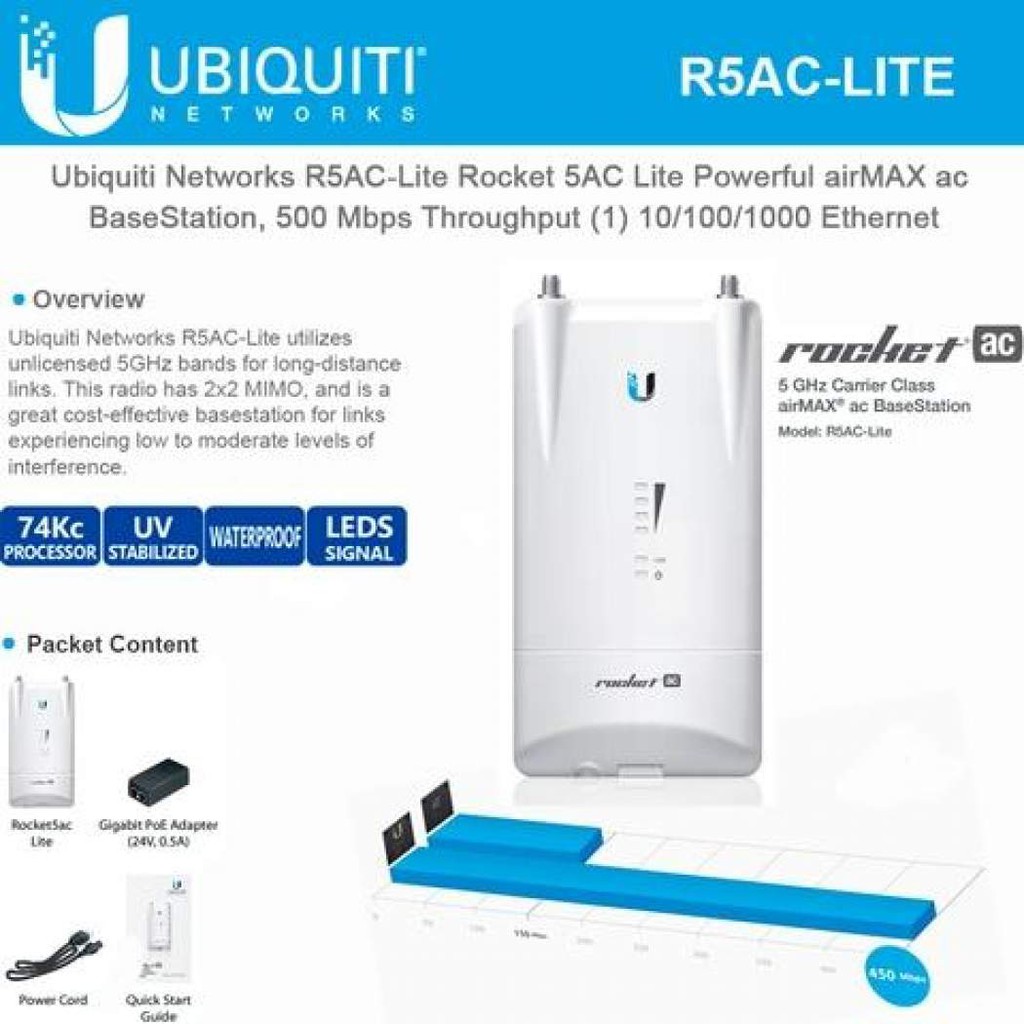

UBIQUITI NETWORKS ROCKET 5AC-LITE
Powerful airMAX ac BaseStation

Specifications
~ Dimensions : 162 x 84 x 37 mm
~ PS. 24V, 0.5A Gigabit PoE Adapter
~ Passive PoE (Pairs 4, 5+; 7, 8 Return)
~ Max. Power Consumption 8.5W
~ Operating Frequency 5150 - 5875 MHz
~ Processor Atheros MIPS 74Kc, 720 MHz
~ Memory 128 MB DDR2 SDRAM, 16 MB NOR FLASH
~ 1x 10/100/1000 Mbps Ethernet Port
~ 2x RP-SMA (Waterproof)
~ LEDs : Power, LAN, (4) Signal Strength
~ Channel Sizes :
PtP Mode 10/20/30/40/50/60/80 MHz
PtMP Mode 10/20/30/40 MHz
~ Outdoor UV Stabilized Plastic
~ Supported Voltage Range 20-26VDC
~ ESD/EMP Protection 24KV Air / Contact
~ Operating Temp. -40 to 80C
~ Operating Humidity 5 to 95% Noncondensing
~ Wireless Approvals FCC, IC, CE
~ RoHS Compliance Yes
~ Modes Access Point, Station
~ Services Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing
~ Utilities Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test
~ Distance Adjustment Dynamic Ack and Ackless Mode
~ Power Adjustment Software Adjustable UI or CL
~ Security WPA2 AES Only
~ QoS Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low
~ Statistical Reporting Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate
~ Other Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM
~ Ubiquiti Specific Features :
30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode
~ R5AC-Lite Output Power: 27 dBm
